Description
The EN Class II A2 Biosafety Cabinet is a crucial piece of laboratory equipment designed to provide a safe working environment when handling biological materials that pose a moderate risk to the user and the environment. 1. Large LCD display, all information displayed. 2. Automatic air speed adjustable with filter block. 3. With memory function in case of power-failure. 4. Side & back wall is made up of single piece stainless steel. 5. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window. 6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Technical Parameters:
| Model | BSC-3FA2 | BSC-4FA2 | |
| External Size(W*D*H) | 1087*775*2265mm | 1383*775*2295mm | |
| Internal Size(W*D*H) | 910*600*660mm | 1210*600*660mm | |
| Work Surface Height | 750mm | ||
| Max Opening | 520mm (21") | 550mm (22") | |
| Tested Opening | Safety height 200mm (8") | ||
| Airflow Volume | Inflow | 348m³/h(205cfm) | 462m³/h(272cfm) |
| Down Flow | 65%: 649m³/h(382cfm) | 65%: 863m³/h(507cfm) | |
| Exhaust | 35%: 348m³/h(205cfm) | 35%: 462m³/h(272cfm) | |
| Front Window | Manual. Laminated toughened glass. Anti UV | ||
| HEPA Filter | Two, 99.995% efficiency at 0.3μm, filter life indicator | ||
| Filter Guard Type | Aluminum alloy frame | ||
| Noise | EN 12469≤65dB | ||
| Illumination | ≥1000Lux | ||
| Display | LCD display | ||
| Waterproof Socket | 2, total consumption: ≤500W | ||
| Tap | Water tap*1, Gas tap*1 | ||
| Ground Resistance | ≤ 0.10Ω | ||
| Power Supply | AC230V, 50Hz | ||
| Consumption | ≤550W | ≤650W | |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | ||
| Motor | AC motor, 230V acceptable, speed adjustable, high efficiency and low power consumption | ||
| Material | Working area: 304 stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | ||
| UV Lamp | 20W | 30W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination, UV timer, UV life indicator | |||
| LED Lamp | 10W*2 | 18W*2 | |

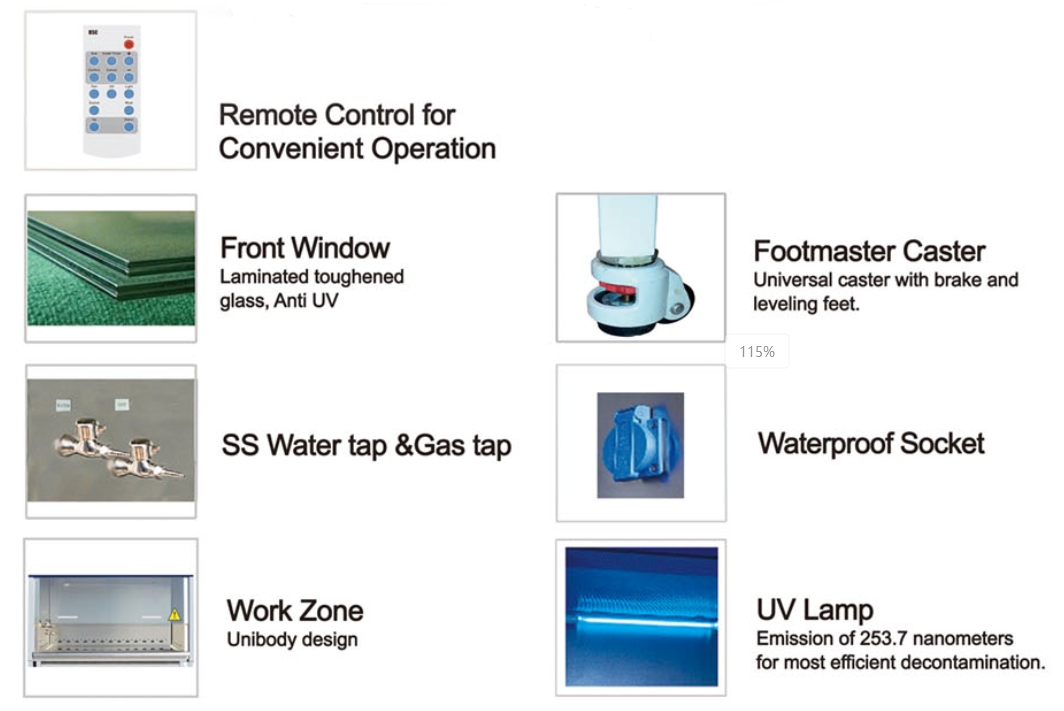

| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless steel I.V. bar with 10 hooks, Remote control | ||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Motorized front window | ||
| Package Size (W*D*H) | 1240*1060*1900mm | 1540*1080*1900mm | |
| Gross Weight | 270kg | 340kg | |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Biological safety cabinet quote checklist
Confirm cabinet class/type, biological agents or procedures, chemical use, work opening, exhaust/ducting requirement, room HVAC interaction, electrical service and certification/documentation requirements.
