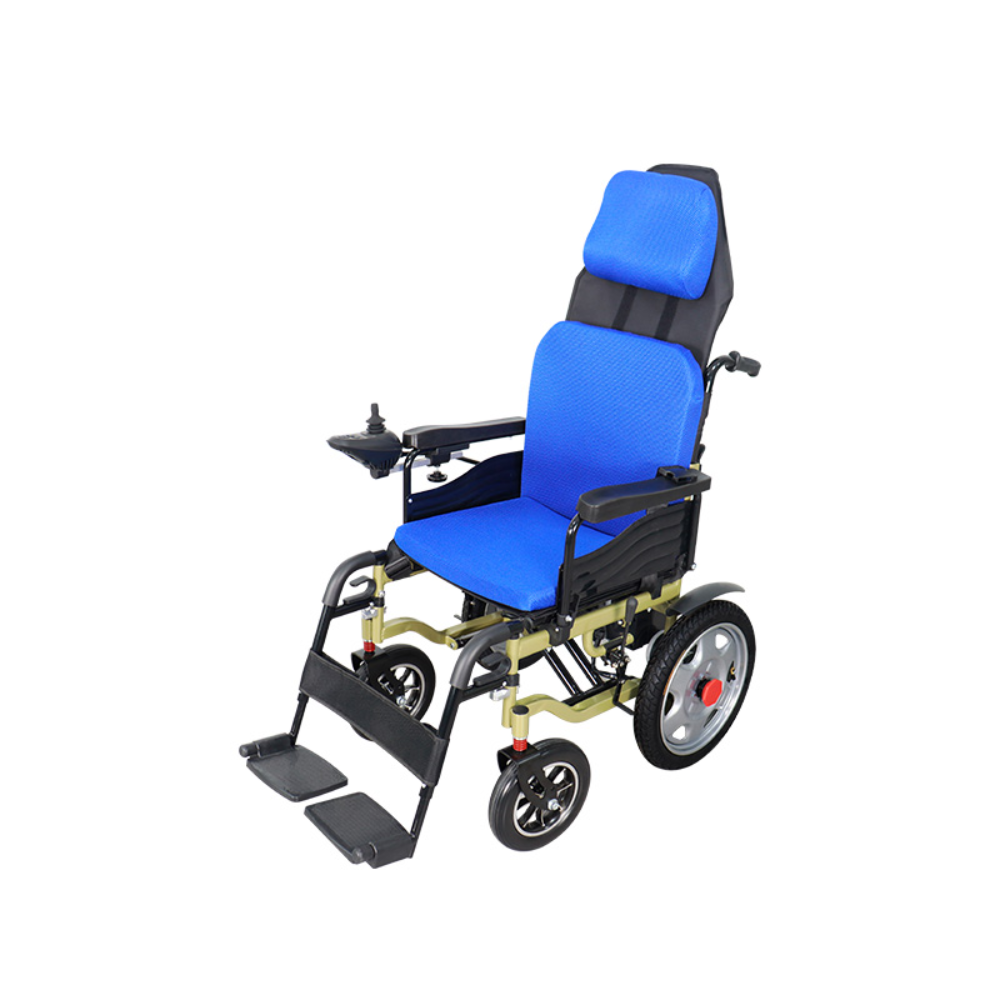

Electric Wheelchair MFW805BT MFW805CT MFW805DT MFW805ET

Description

Electric Wheelchair MFW805BT MFW805CT MFW805DT MFW805ET

Features:

1. Humanized intelligent controller, 360° sensitive control, optional wireless telecontroller.

2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.

3. The high backrest is fixed so that users can not lie back.(MFN805BT/ETQ)

4. High backrest for pneumatic lying back and manual leg lifting.(MFN805CT/CTQ)

5. High backrest for electric lying back and electric leg lifting.(MFN805DT/DTQ)

6. Electric remote control high backrest for lying back and electric leg lifting.(MFN805ET/ETQ)

7. 250W high efficiency energy-saving dual motor.

8. Durable battery(Lead-acid or Lithium battery alternative), stable power supply performance, easy to disassemble.

9. High-elastic memory sponge back cushion, breathable and informable, comfortable and stable.

10. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.

11. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.

Technical Parameters:

Model

MFN805BT

MFN805BTQ

MFN805CT

MFN805CTQ

MFN805DT

MFN805DTQ

MFN805ET

MFN805ETQ

Front Wheel Diameter

10 inches

10 Inches

Rear Wheel Diameter

16 inches

16 Inches

Seat Width

460mm

Seat Depth

400mm

Seat Height

575mm

Max. Speed

4.5km/h

Endurance Mileage

Standard: 12~15km

Optional: 20~25km

Climbing Ability

6°

Loading Capacity

120kg

Fold Mode

Manual

Battery

Lithium battery(MFN805BT, MFN805CT, MFN805DT, MFN805ET)

Lead-acid battery(MFN805BTQ, MFN805CTQ, MFN805DTQ, MFN805ETQ)

Standard: 24V12Ah, Optional: 24V20Ah

Motor

DC24V 250W*2, brush motor

Power Supply

AC100~240V, 50/60Hz

Controller

45A, brush controller

Charge Time

2A charger, 6~8h

Standard Accessory

250W*2 brush motor, Brush controller

Optional Accessory

Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP

Unfold Size(W*D*H)

1130*650*1300mm

Net Weight(Not including charger and battery)

35.5kg

38.5kg

39kg

40.5kg

Package Size(W*D*H)

890*430*990mm

Gross Weight

Standard:

44kg(MFN805BT)

48kg(MFN805BTQ)

Optional:

47kg(MFN805BT)

54kg(MFN805BTQ)

Standard:

47kg(MFN805CT)

51kg(MFN805CTQ)

Optional:

50kg(MFN805CT)

57kg(MFN805CTQ)

Standard:

47.5kg(MFN805DT)

51.5kg(MFN805DTQ)

Optional:

50.5kg(MFN805DT)

57.5kg(MFN805DTQ)

Standard:

49kg(MFN805ET)

53kg(MFN805ETQ)

Optional:

52kg(MFN805ET)

59kg(MFN805ETQ)
