According to the principle of Soxhlet extraction, the fat content of grain, grain and food was determined by gravimetric method.
The product is fully automatic one-key operation design, easy to operate, stable performance, high accuracy, with: Soxhleter extraction, hot extraction, Soxhleter hot extraction, continuous flow and standard hot extraction and other automatic extraction mode.
$0.00

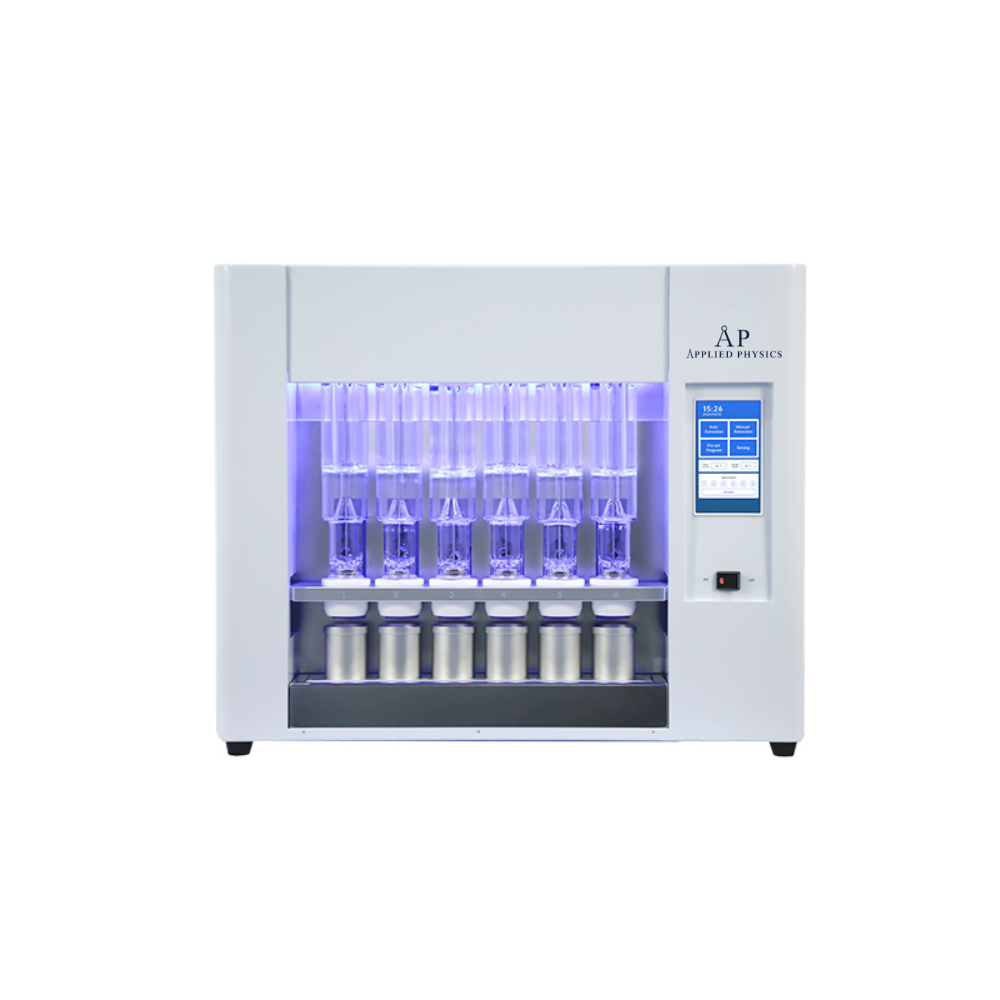

Fat Analyzer SFA-06E
Features:
1. One-click automatic completion of the entire process: solvent cup compression, sample basket lifting(lowering), heating, soaking, extraction, reflux, solvent recovery, and valve opening/closing.
2. Room-temperature soaking, hot soaking, hot extraction, continuous extraction, intermittent extraction, and solvent recovery can be arbitrarily selected and combined.
3. Multiple solenoid valve operation modes: inching opening/closing, timed opening/closing, and manual opening/closing.
4. Combined formula management with storage capacity for 99 different analytical programs.
5. Fully automatic lifting and compressing system with high automation, reliability, and convenience.
6. 7-inch color touchscreen with user-friendly interface, easy to use and learn.
7. Menu-driven program editing: intuitive, easy to operate, and can be recalled cyclically multiple times.
8. Up to 40 program segments, supporting multi-temperature, multi-level, or cyclic soaking, extraction, and heating.
9. Integrated metal bath heating block for wide temperature range and high temperature control accuracy.
10. Automatic lifting function of extraction filter cup holder ensures simultaneous immersion of samples in organic solvents, helping improve the consistency of sample determination results.
11. Professionally customized components suitable for various organic solvents, including petroleum ether, ether, alcohols, chloroform, etc.
12. Petroleum ether leakage alarm: the alarm system activates and stops heating when petroleum ether leakage in the working environment reaches a dangerous level.
13. Equipped with two types of solvent cups(Aluminum alloy and glass) for users to choose from.
Technical Parameters:
Model
SFA-06E
Temp. Range
RT+5~300℃
Measuring Range
0.1~100%
Temp. Accuracy
±1℃
Sample Weight
0.5~15g
Capacity
6pcs/batch
Solvent Cup Volume
150ml
Solvent Recovery
≥85%
Solvent Backflow Control
Solenoid valve
Lifting System
Automatic
Display
7 inch color touch screen
Heating Power
1100W
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
External Size(W*D*H)
850*280*680mm
Package Size(W*D*H)
920*370*980mm
Net Weight
70kg
Gross Weight
80kg
| Model | FA-06E |
|---|
