Description
Technical Parameters：

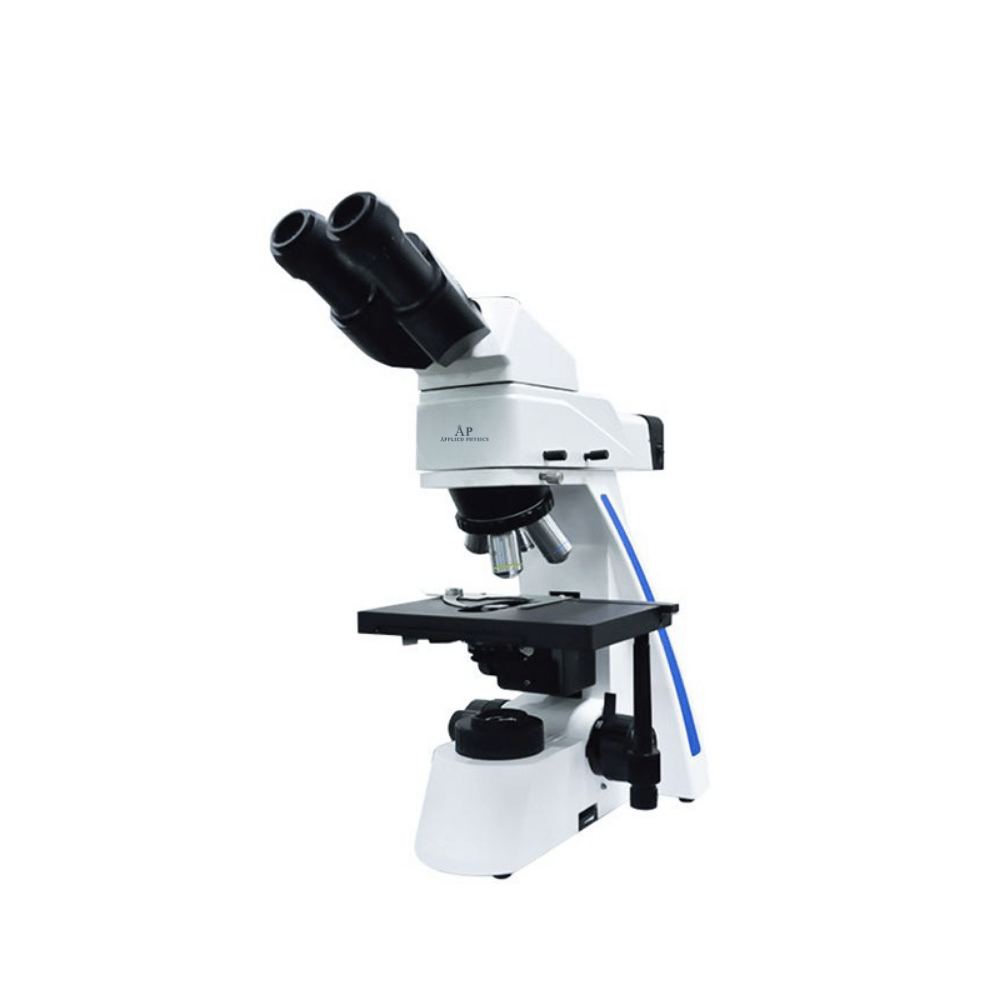

| Model | BFM-31 |
| Eyepiece | WF10×/22mm |
| View Head | Hinged trinocular viewing head inclined at 30° |
| Objective | Infinite plan achromatic objectives 4x, 10x, 40x, 100x |
| Fluorescence Accessories | Standard: Blue(B) excitation: 460~490nm Optional: Green(G) excitation: 510~550nm Ultraviolet(UV) excitation: 330~380nm Blue-ultraviolet (BU) excitation: U: 330~380nm; B: 460~490nm Blue-green ultraviolet(BGU) excitation: U: 330~380nm; B: 460~490nm; G: 510~550nm |
| Focusing System | Coaxial coarse and fine focusing with locking and limit devices, fine adjustment value 2μm, coarse movement stroke per circle 40mm, fine movement stroke per circle 0.2mm, focusing range 24mm |
| Nosepiece | Standard: Inward 4-hole nosepiece; Optional: 5-hole nosepiece |
| Stage | Double-layer movable platform(size: 210mm*140mm, moving range: 76mm*50mm) |
| Transmitted Illumination System | Abbe condenser N.A.1.25, white LED, brightness adjustable |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(L*W*H) | 485*340*640mm |
| Gross Weight | 13.3kg |
