Description

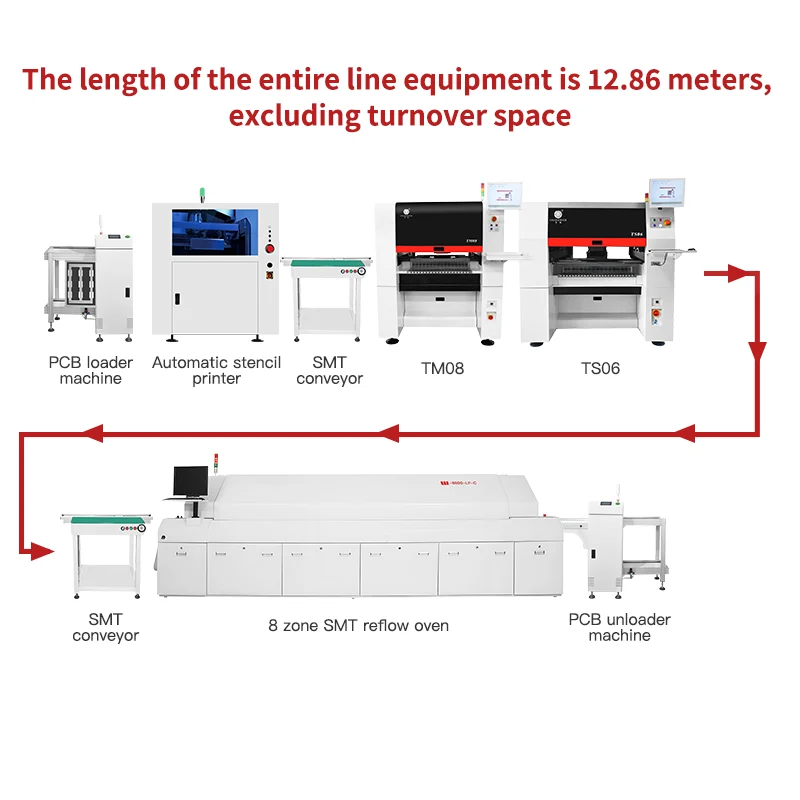

Full Automatic Charmhigh Chip Mounter PCB Assembly Line
The Full Automatic Charmhigh SMT Production Line is a high-speed, high-precision PCB assembly solution designed for efficient surface-mount technology (SMT) production. Featuring advanced pick-and-place technology, automated component feeding, high-speed vision inspection, and precision servo-driven motion systems, the production line is designed to provide stable and accurate component placement for a wide range of electronic manufacturing applications.

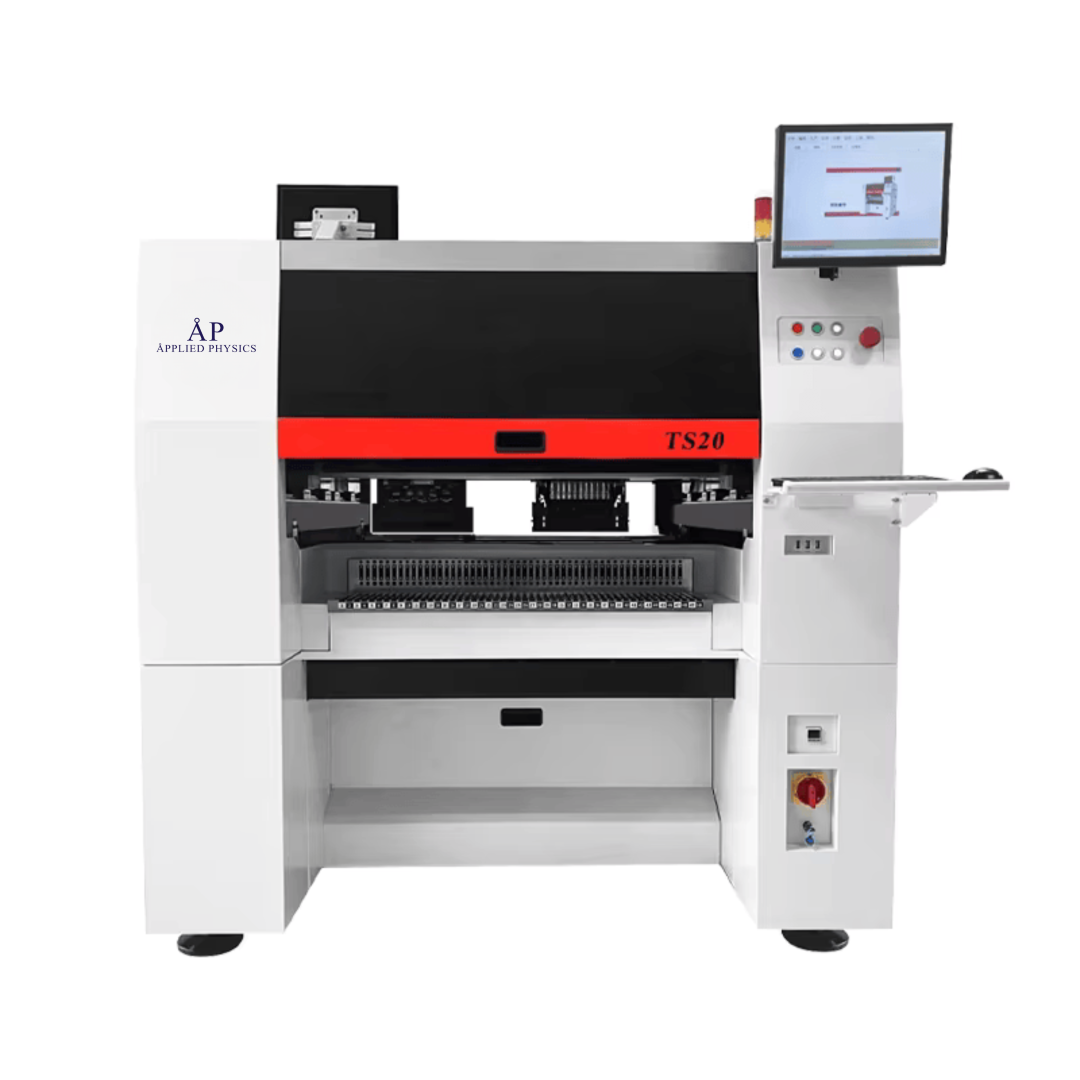

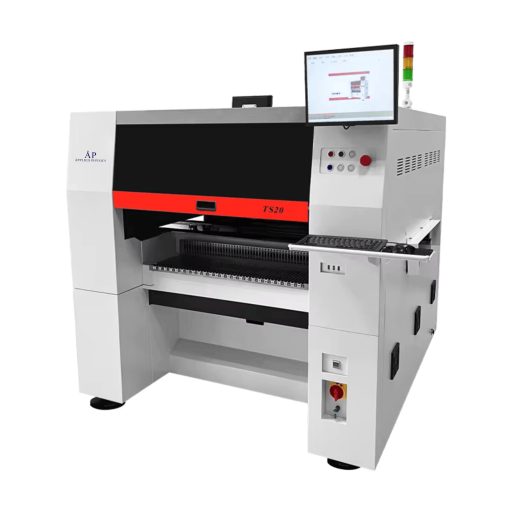

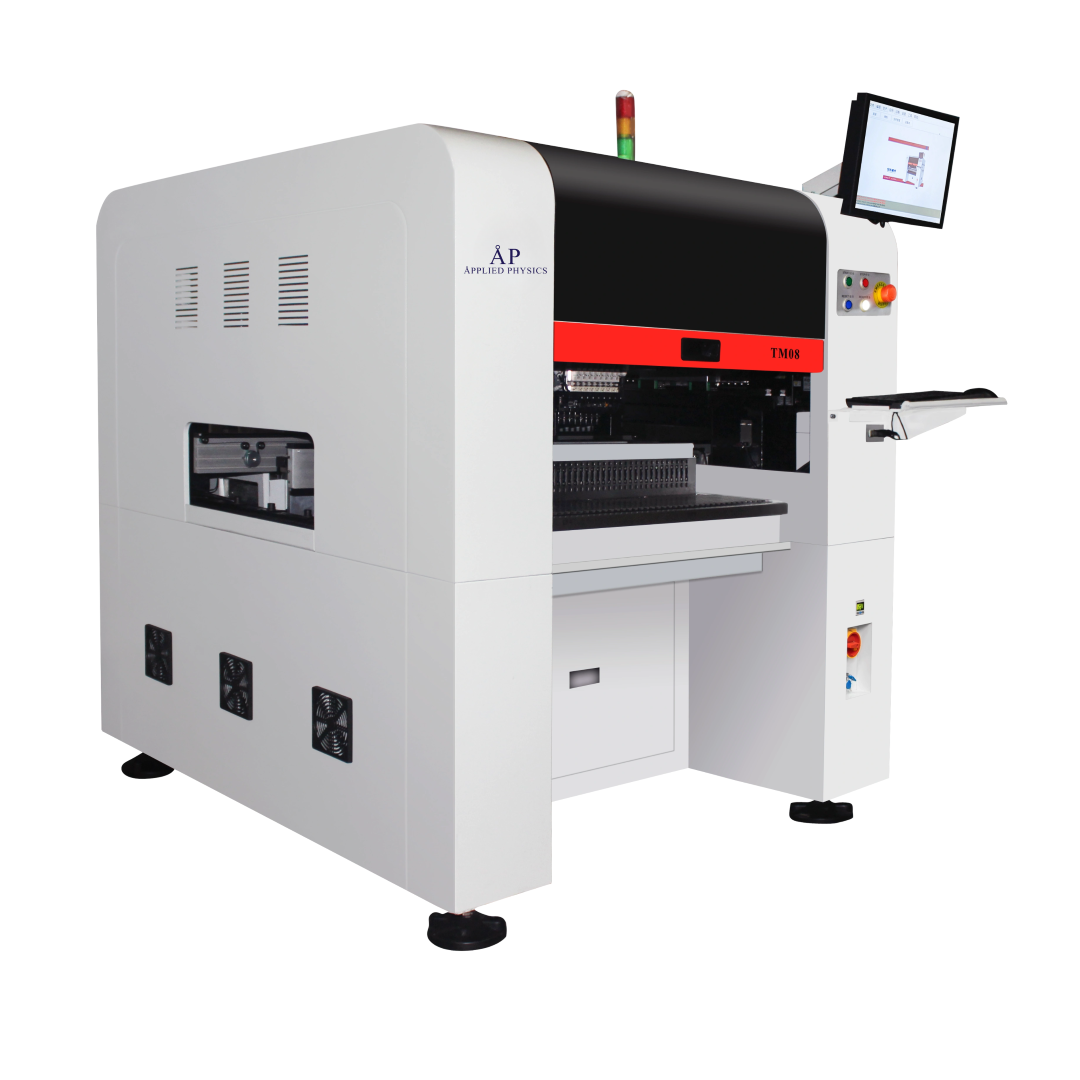

At the core of the system is the Charmhigh high-speed visual pick-and-place machine, designed for applications such as LED DOB PCB assembly and other electronic PCB production. Its advanced mounting system provides fast and precise placement of electronic components while maintaining production stability and consistency.
The machine is equipped with a high-precision multifunctional mounting head, allowing it to handle different types and sizes of components without requiring frequent head changes. It supports a wide range of components, including resistors, capacitors, diodes, transistors, LEDs, ICs, SOP, QFP, QFN, BGA, and other commonly used SMT components. The specified mounting range extends from very small components such as 0201 packages to larger components up to 5050 and other component types.
High-Speed and High-Precision Performance
The SMT pick-and-place system is designed for high-speed production, with the listed TS06 configuration offering a mounting speed of up to 30,000 components per hour (CPH) under optimal conditions. Its precision motion system uses Panasonic A6 servo motors, including a dual-motor drive for the Y-axis, helping maintain stable movement and accurate component placement during high-speed operation.
The machine also uses a rigid cast-iron structural platform and precision THK ball screws and linear guides. This construction helps reduce vibration and provides greater stability during continuous high-speed operation.
Advanced Vision System
The production machine incorporates an advanced vision system to improve component recognition and placement accuracy. Multiple high-speed flying cameras allow rapid recognition of components during the mounting process, while a dedicated IC camera is used for larger and more complex components.
The vision system can identify component characteristics and chip pins and supports image-stitching functions for larger components. Mark cameras are also included to assist with accurate PCB positioning and alignment.
Automatic Nozzle Management
An Automatic Nozzle Change (ANC) system with a 37-hole nozzle library allows the machine to automatically select and change nozzles according to the components being assembled. This reduces manual intervention and helps make the SMT production process more efficient and automated.
Flexible Component Feeding
The machine provides extensive component-feeding capabilities, with support for up to 100 standard 8 mm feeder positions in the specified configuration. It can also accommodate IC trays, stick feeders, vibration feeders, and other feeding methods depending on the component type.
The electric feeder system is designed for accurate and stable component feeding, with the manufacturer specifying feeding accuracy of approximately ±0.03 mm. Offline feeder preparation is also supported, helping reduce production downtime when changing or preparing materials.
PCB Handling and Production Flexibility
The automatic PCB conveying system uses a three-section rail system with PCB support to provide stable transportation through the machine. The specified system supports PCB sizes up to 600 mm × 400 mm and PCB thicknesses from 0.6 mm to 3.5 mm.
This flexibility makes the system suitable for a variety of PCB assembly applications, from LED products and electronic modules to different types of surface-mounted electronic devices.
Stable and Intelligent SMT Manufacturing
The production line is designed with process stability in mind and supports CPK-based process capability monitoring, helping manufacturers maintain consistent placement performance within required accuracy limits.
By combining automatic nozzle selection, precision servo motors, high-speed cameras, flexible feeders, and intelligent component recognition, the Charmhigh SMT solution reduces manual operations while improving production efficiency, placement consistency, and overall manufacturing productivity.
Key Features
- High-speed SMT pick-and-place technology
- Suitable for LED DOB and general PCB assembly
- Mounting speed of up to 30,000 CPH under optimal conditions
- High-precision placement with XY accuracy of approximately ±0.035 mm
- Multifunctional mounting head for different component types
- Automatic nozzle changing with a 37-hole nozzle library
- High-speed flying camera vision system
- Dedicated IC camera for larger and complex components
- Dual Y-axis servo motor drive for improved stability
- Up to 100 standard 8 mm feeder positions
- Support for IC trays, stick feeders, vibration feeders, and other feeding methods
- Automatic three-section PCB conveying system
- Supports PCB sizes up to 600 × 400 mm in the specified configuration
- Suitable for components including resistors, capacitors, diodes, LEDs, ICs, QFP, QFN, BGA, and more
- Built-in industrial computer and Windows-based control system
- Rigid cast-iron machine structure for stable high-speed operation
Overall, the Charmhigh Full Automatic SMT Production Line combines automated component feeding, precision pick-and-place technology, advanced machine vision, automatic nozzle management, and stable PCB handling to provide an efficient solution for modern electronics and PCB assembly production.
