Description

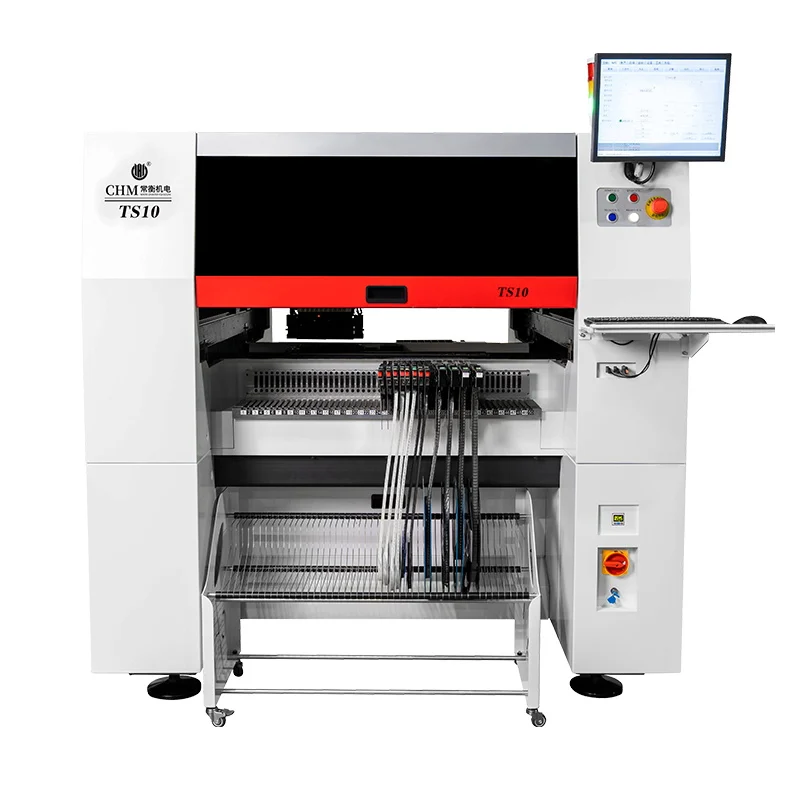

Introduce of SMT Production Line Machine 1、Pick and Place Machine
| Mounting Head Quantity | 10 |
| Weight | 1930kg |
| Air Supply | 0.5Mpa-0.7Mpa |
| Vacuum Generation | Built-in vacuum pump |
| Component Height | ≤12mm |
| PCB Size | 1200mm(L)×400mm(W) (optional) |
| Dimensions | 1600mm(L)×1688mm(W)×1560mm(H) |
| Mounting Speed | 42000cph (optimal) |
| Mounting Accuracy | （XY）±40μm CPK≥1.0 |
| ControlAccuracy | 4μm |
| PCBThickness | 0.6mm~3.5mm |
| PCBConveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Power Supply | AC380V (50Hz, single phase), 4.5kW |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting ground ball screw and mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×10 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm) Mark camera×2 |

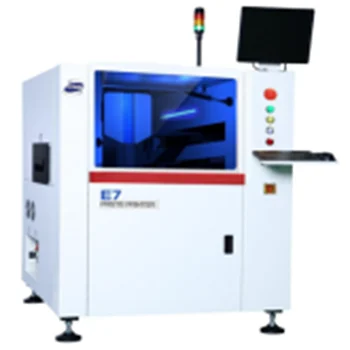

2、SMT Stencil Printer
| Maximum board size | 450mm*350mm |
| Minimum board size | 50mm*50mm |
| PCB thickness | 0.4mm-6mm |
| Warpage | 1%Diagonal |
| Transfer speed | 1500mm/s |
| Printing speed | 0~200 mm/s |
| Repeat position accuracy | ±12.5μm @6 σ , Cpk ≥ 2.0 |
| Power requirements | AC220V+10%,50/60HZ,15A |
| Dimension(L*W*H)mm | 4600×1300×1470 |
| Weight | Approx2000Kg |
| .Number of Heating Zones | Up8+ Bottom8 |
| Length of Heating Zones | 3150mm |
| Max.Width Of PCB | Mesh belt width 500mm, guide rail adjustable 380mm |
| Conveyor Height | 880±20mm |
| Conveyor Speed Range | 0-2000mm/min |
| Power Supply | 5 Wire, 3 Phase, 380V |
| Start Power | 48KW |
| Power Consumption | Approx8-10KW |
| Temperature Control Precision | ±2℃ |

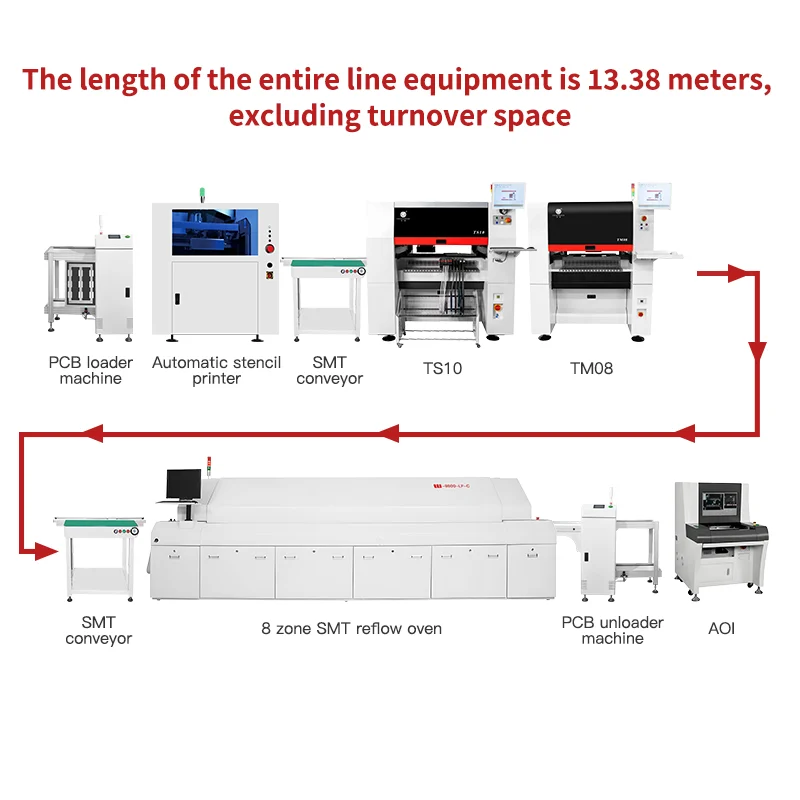

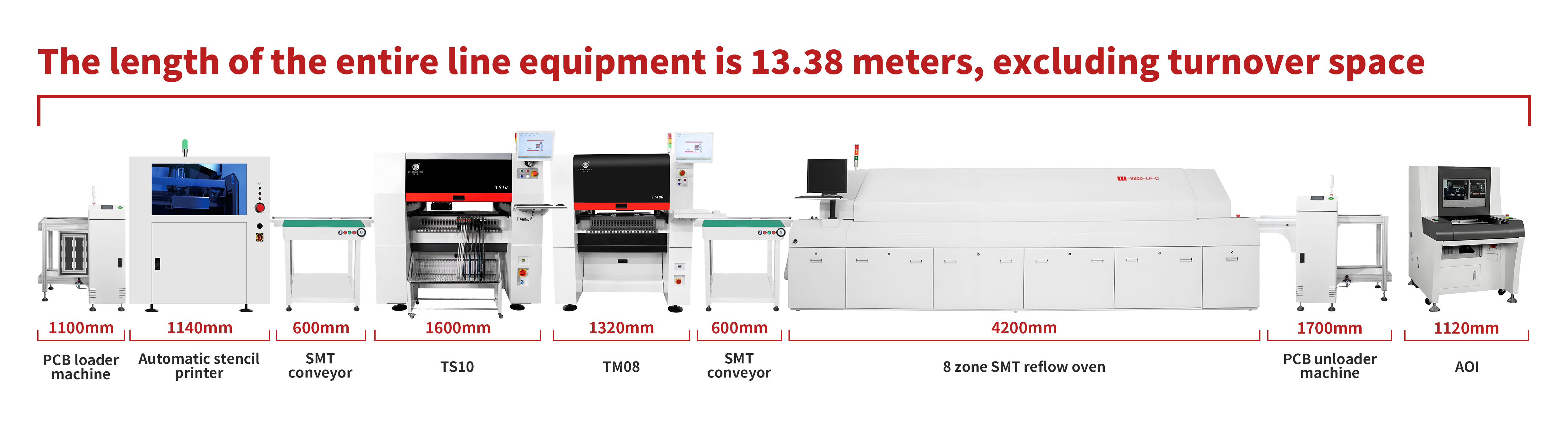

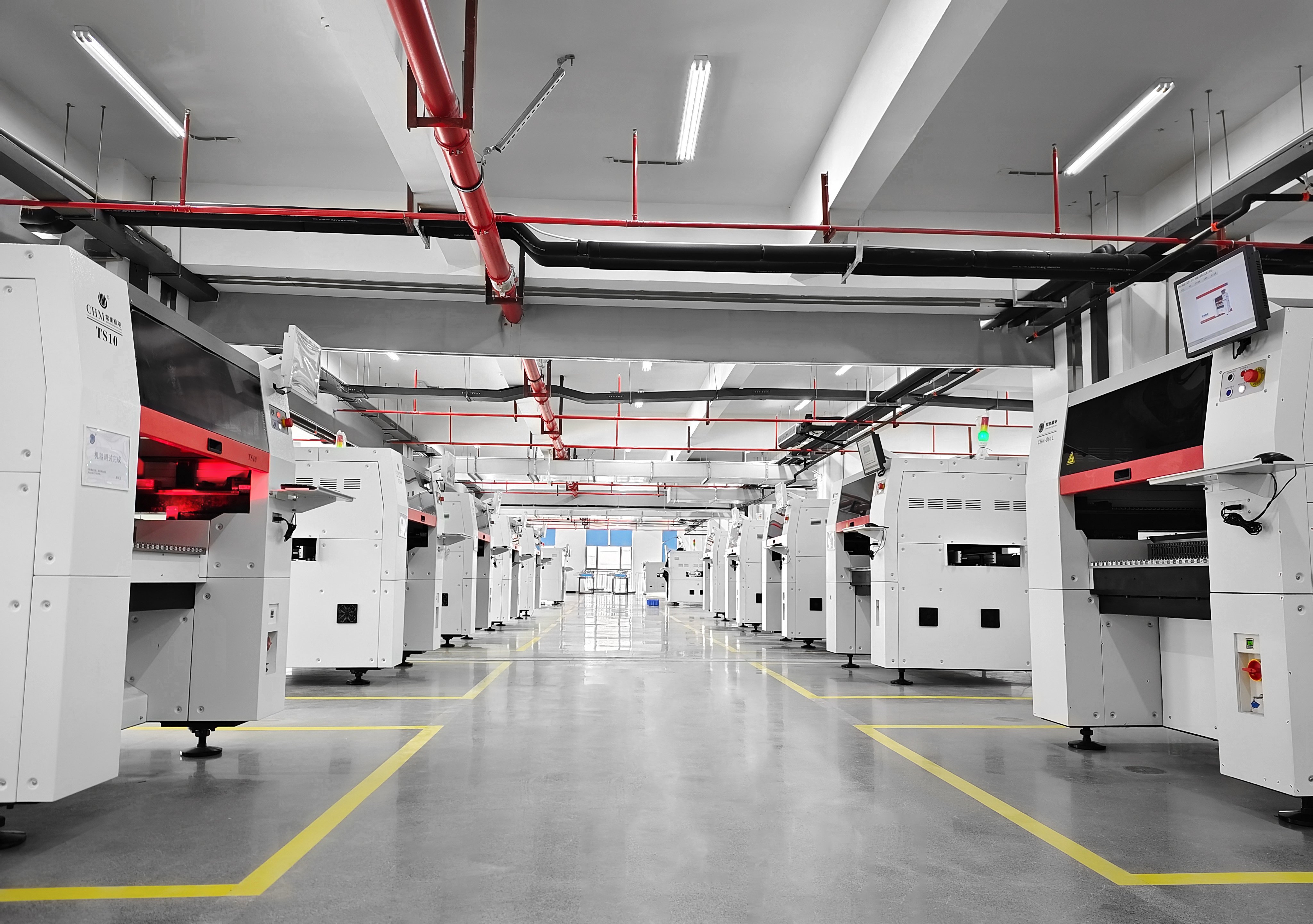

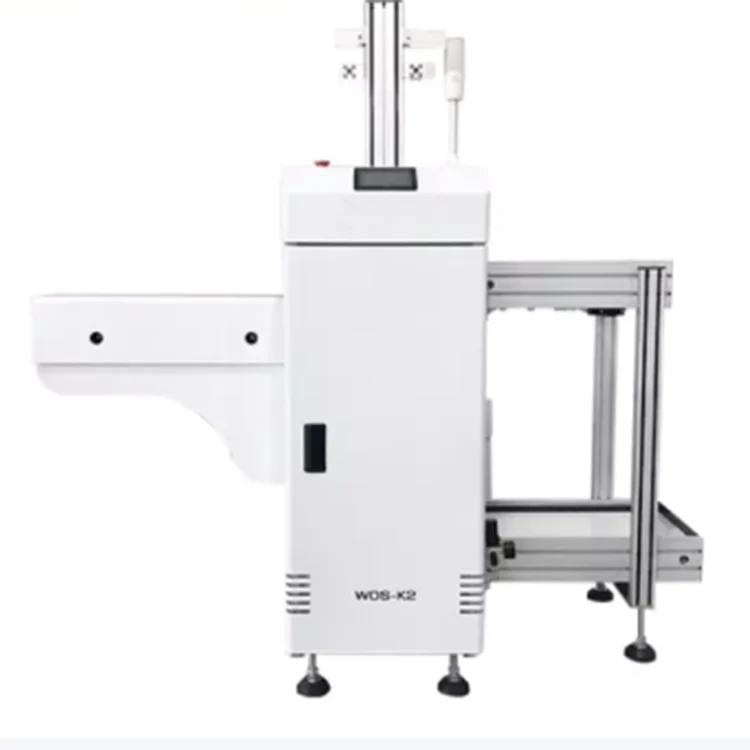

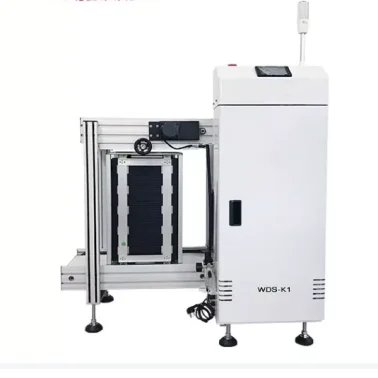

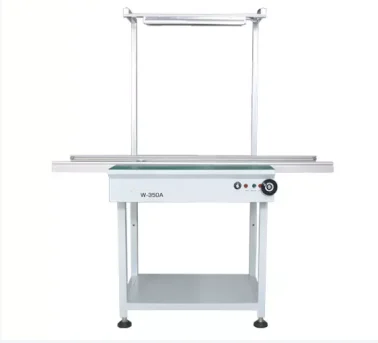

SMT Production Equipment Display
pP
Why Choose Us 1. We Provide Full SMT Solution for You 2. We Provide Core Technology With Our Equipments 3. We Provide The Most Professional Tech Service 4. We Have Wealthy Experience on SMT Factory Setup 5. We Can Solve Any Question About SMT
