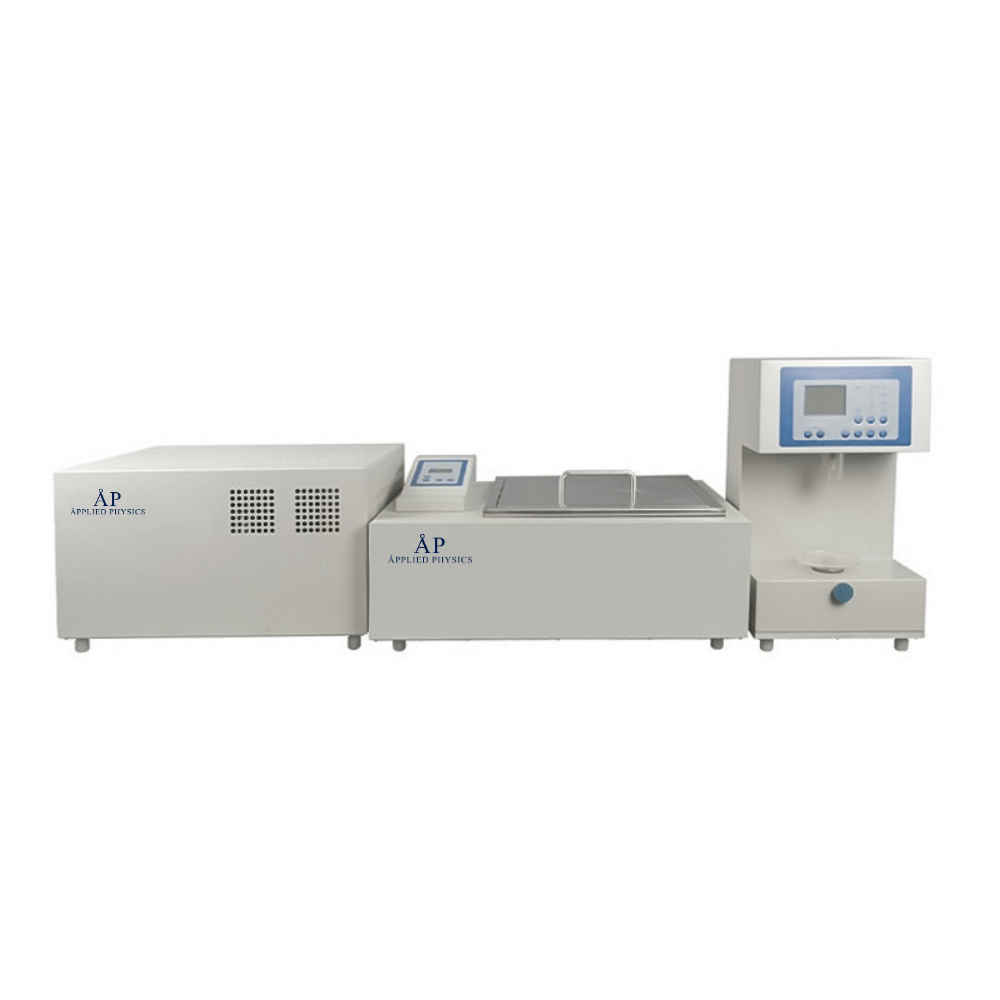

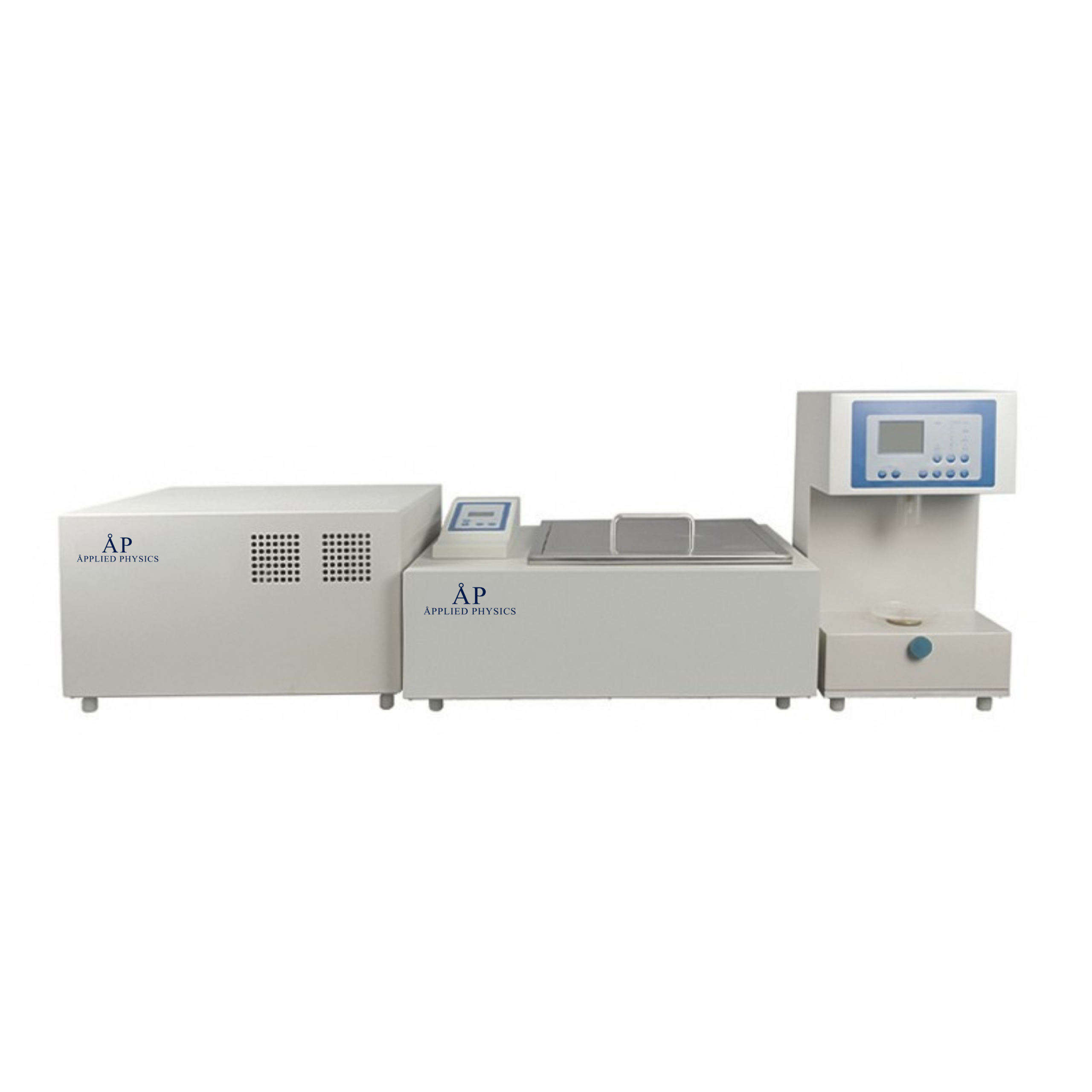

Gel Strength Test System

Description

Gel Strength Test System

Features:

1. High-definition LCD display.

2. Powerful data processing ability: submit mean value, final value or peak value automatically.

3. Four kinds of sampling measurement modes: single-step, maintaining, circulating and automatic.

4. Automatic measurement mode can help you obtain the value of gel strength faster, more accurately and more realistically.

5. 5 kinds of sampling speeds: 0.1mm/s, 0.2mm/s, 0.5mm/s, 1mm/s and 2mm/s.

6. Sampling depth can be preset arbitrarily(1~60mm).

7. Professional high-precision pressure sensor.

8. High-precision mechanical drive matches with 4-class shockproof design

9. Automatic correction of non-linear error, automatic fault diagnosis alarm, automatic out range protection and automatic error correction prompt.
10. Embedded micro printer, standard serial printing,convenient storage of experimental data.(Only for GGST-3)

Technical Parameters:

Model

GGST-2

GGST-3

Test Range

5~1000 Bloom g

Test Accuracy Range

±0.3%

Resolution

1 Bloom g

Travel

1~60mm

Travel Accuracy

≤±0.1mm

Measured Diameter of Cylinder

12.700±0.010mm

Consumption

60W

Power Supply

AC110/220V±10%, 50/60Hz

Standard Accessory

Constant Temperature Bath, Refrigerator

Package Size(W*D*H)

360*360*530mm(Gel Strength Tester)

680*540*355mm(Constant Temperature Bath)

580*480*390mm(Refrigerator)

Gross Weight

12kg(Gel Strength Tester)

25kg(Constant Temperature Bath)

21kg(Refrigerator)
