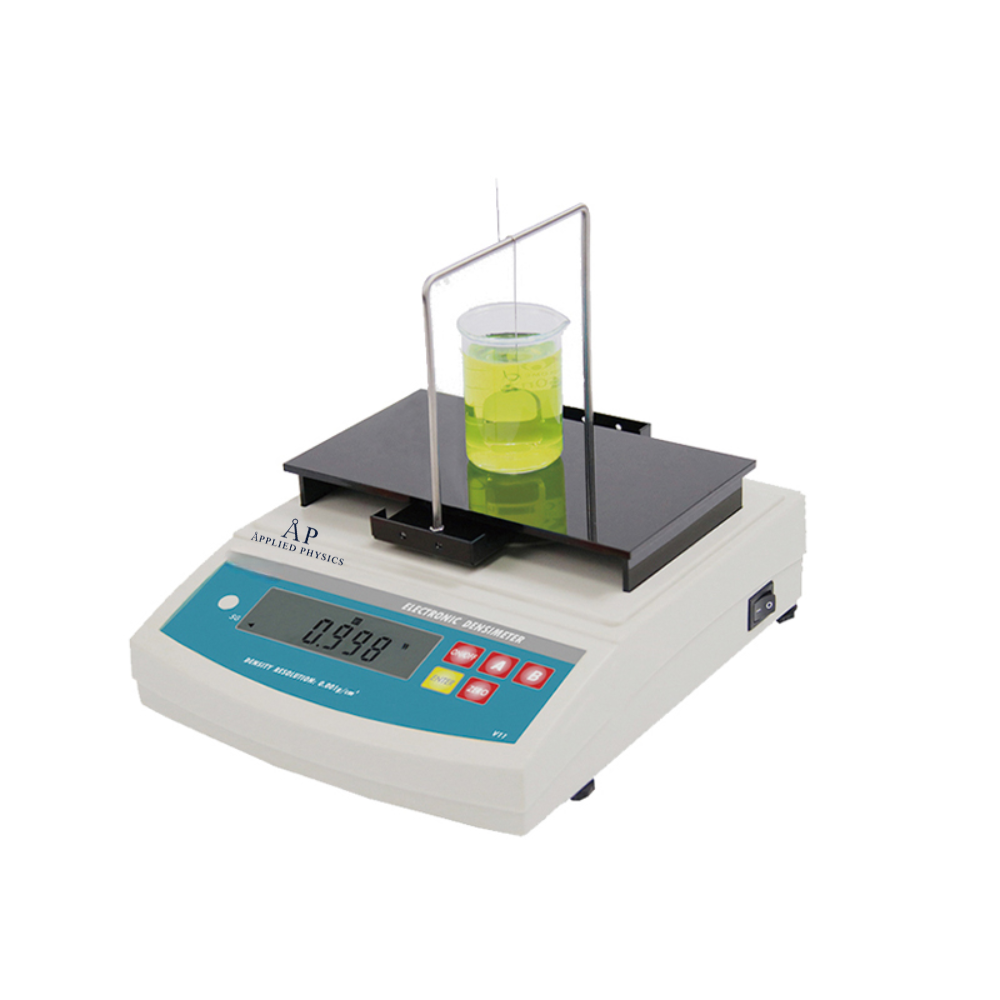

High-precision Solid And Liquid Densimeter BK-DMH120D BK-DMH300D

High-precision Solid And Liquid Densimeter BK-DMH120D BK-DMH300D Features: 1. Automatically check whether density is qualified or not and prompt alarm. 2. Automatic zero tracking, buzzer warning, and overload warning. 3. Function of solution compensation: necessary if liquid other than water is used as a medium for measuring. 4. RS-232C is included. Technial Parameters: Model BK-DMH120D BK-DMH300D Capacity 0.001~120g 0.005~300g Density Resolution 0.0001g/cm3 0.001g/cm3 Density Range 0.0001~99.9999g/cm3 0.001~99.999g/cm3 Measuring Time About 5s Solid Mode Measuring Principle Archimedes principle Measurable Items Density of general non-absorbency solid. Density of porosity materials. Oil length of oil bearing. Porosity of porosity materials. DIN volume abrasion loss of rubber. Powder density. Water absorption rate. Specific Gravity Unibody injection forming professional specific gravity measurement frame. Size: 135*50*116mm(L*W*H) Measuring Frame Measuring Tank Unibody injection forming transparent professional measuring tank. Size: 169*98*83mm(L*W*H) Mixed Material Percentage Function Introduction Automatically read the percentage of the main material in composite which consist of two materials Setting Freely set the density value of main material and subordinate material Display Density value, percentage of main material Liquid Mode Measuring Principle Archimedes principle displacement method Weight Value Data Storage 3 groups Specific Gravity Measuring Frame Stainless steel specific gravity measuring frame Result Display Density and baume value Result Testing Method Distilled water testing Calibration Mode Auto correction, auto detection. Standard Accessories Common Use: Tweezer, thermometer, 100G weight, windshield, power transformer. Solid Use: Tank, testing board, a set of particle measuring assembly, a set of floating body measuring assembly. Liquid Use: Measuring plate, measuring frame, DE-20A standard liquid measuring assembly. Optional Accessories DE-40 printer, DE-20B anti corrosive liquid measuring assembly Power Supply AC100~240V, 50/60Hz External Size(W*D*H) 195*230*197mm Package Size(W*D*H) 440*180*345mm Net Weight 1.59kg 1.78kg Gross Weight 4.5kg
