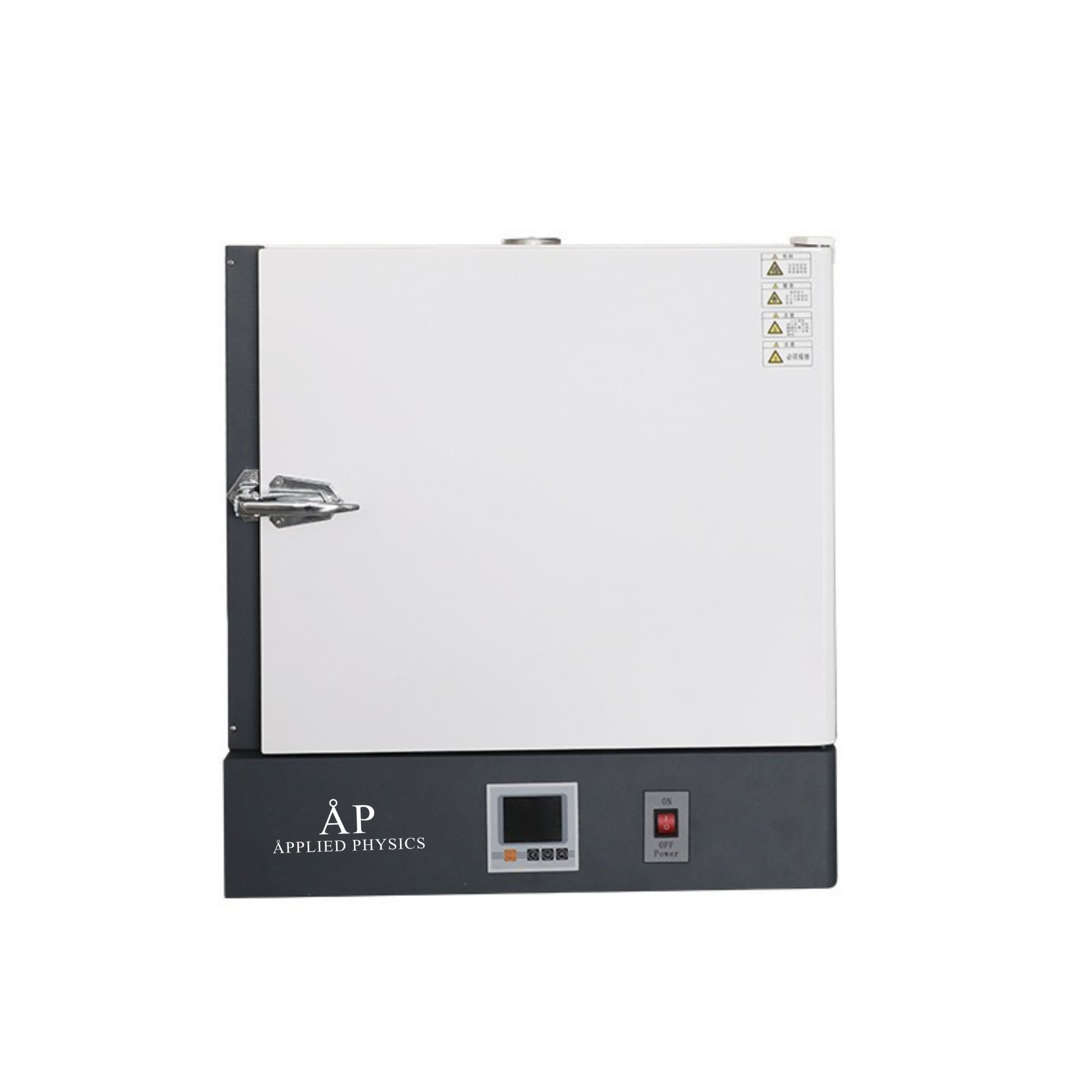

High Temperature Test Chamber

Description

High Temperature Test Chamber

Features:

1. The shell of the product is made of cold- rolled steel plate, surface electrostatic spraying.

2. The inner chamber is made of high quality 304 mirror stainless steel,four corner arc transition, double liner, beautiful appearance.

3. Equipped with 304 stainless steel handle, adjustable, better sealing.

4. Adopt Intelligent PID temperature control instrument, with functions of timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning etc..

5. Fully enclosed stainless steel heating tube with gas jacket heating mode, high temperature fan circulation, make the temperature more uniform.

6. The sealing strip is made of aviation sealing material and can withstand high temperature up to 1000℃.

7. Air supply mode: fan forced circulation.

8. Thickened insulation with heat insulation layer inside.

9. Can add install LCD instrument, programmable control instrument, printer, 485 interface, U disk storage, SMS alarm etc..



Technical Parameter:

Model

BOV-50BE

BOV-80BE

BOV-150BE

BOV-250BE

BOV-350BE

Volume

50L

80L

150L

250L

350L

Temp. Range

50~500℃

Temp.

Resolution

0.1℃

Temp. Fluctuation

± 1℃

Time Range

0-9999min

Shelves

2pcs/adjustable

Consumption

3000W

3000W

4500W

5500W

6500W

Power Supply

Standard:220V 50/60HZ

Optional: 110V 50/60HZ. Wiring Method: Air switch (For 110V)

Three Phase Voltage AC 380V 50/60HZ

Internal Size(L*W*H) mm

330*350*350

400*400*500

500*500*600

500*650*750

1000*440*800

External Size(L*W*H) mm

510*650*750

575*700*880

640*800*1040

640*950*1190

1190*770*1280

Package Size(L*W*H) mm

620*820*820

670*700*900

775*935*1180

775*1085*1330

1200*750*1130

Net Weight

58kg

80kg

102kg

135kg

160kg

Gross Weight

68kg

94kg

121kg

156kg

190kg

Note: The above temperature and humidity parameters are measured at no load temperature of 28℃ and humidity of 65%RH.
