Description

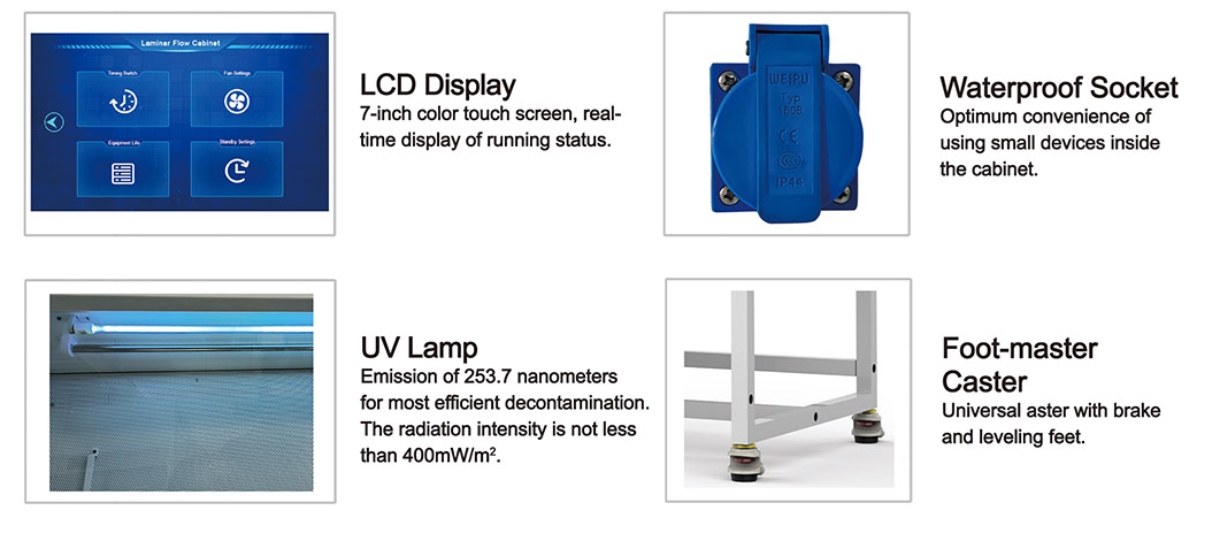

Features: 1. Vertical face design, the operating perspective is wide and more humane. 2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet. 3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter. 4. Work zone is made of SUS304 material, beautiful and corrosion resistance. 5. The front and side Windows are made of 5mm thick tempered glass. 6. The base stand and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled. 7. 7-inch color touch screen, real-time display of running status(air flow direction, air velocity, running time, UV lamp time, HEPA filter running time, HEPA filter running resistance, temperature and humidity, timer). 8. With the function of appointment timing, it can automatically set the time of starting and shutting down and the disinfection time of ultraviolet lamp. 9. With one key disinfection function, convenient and fast. 10. Perfect alarm system: (1) Ultra-high filter pressure alarm (2) Filter failure replacement alarm 11. Interlocking function: UV lamp and front window, UV lamp and fan, fluorescent lamp, fan and front window.
Technical Parameters:
| Model | BKCB-H1100S | BKCB-H1300S |
| External Size(W*D*H) | 1100*820*1780mm | 1300*820*1780mm |
| Internal Size(W*D*H) | 1000*500*570mm | 1200*500*570mm |
| Work Surface Height | 750mm(Customized) | |
| Safety Height | 200mm | |
| Max Opening | 320mm | |
| Display | LCD display | |
| Airflow Velocity | 0.2~0.45m/s | |
| Material | Working area: 304 stainless steel Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV | |
| Pre-filter | Polyester fiber | |
| HEPA Filter | One, 99.995% efficiency at 0.3μm | |
| Front Window | Manual | |
| Noise | ≤65dB(A) | |
| Illumination | ≥300lx | |
| Vibration | ≤5μm(rms) | |
| Safety | Colonies number≤0.5CFU/30min | |
| Clean Level | ISO level 5(Class 100) | |
| Waterproof Sockets | Two sockets, Max. Power: 500W | |
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | |
| Consumption | 700W | 700W |
| LED Lamp | 8W*1 | 8W*1 |
| UV Lamp | 15W*2 | 15W*2 |
| Standard Accessories | Base stand, LED lamp, UV lamp, Waterproof socket*2 | |
| Optional Accessories | Motorized door | |
| Package Size(W*D*H) | 1250*1030*1270mm | 1450*1030*1270mm |
| Gross Weight | 235kg | 290kg |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Clean-workstation quote checklist
Confirm product-protection objective, horizontal or vertical airflow preference, work-zone dimensions, process equipment inside the cabinet, electrical service, filtration and installation constraints.
