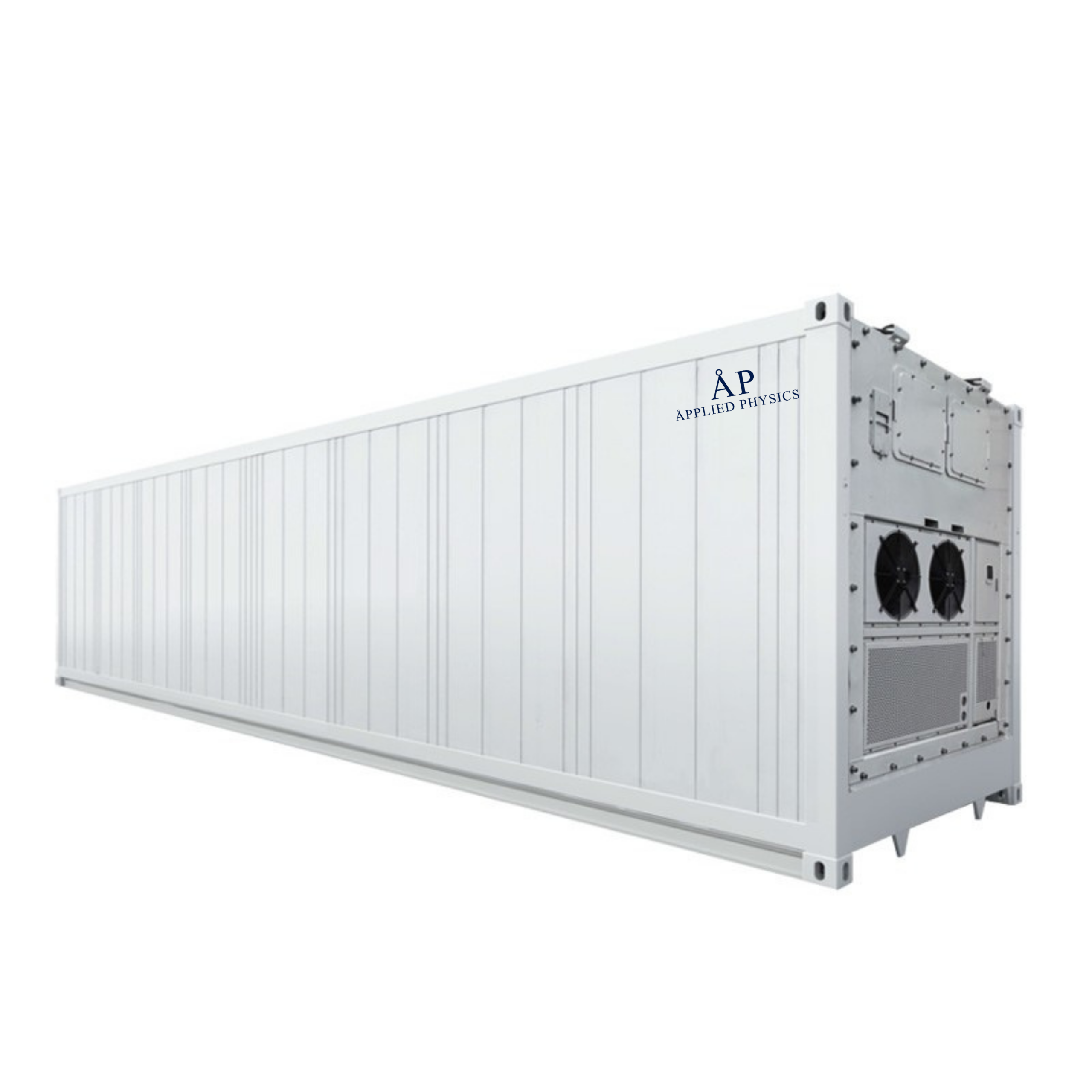

Intelligent Mobile Cold Storage

Description

Intelligent Mobile Cold Storage

Features

1. The container has a high structural strength and can be hoisted as a whole when fully loaded.

2. The built-in evaporator structure, with air outlet at the bottom and air return at the top, saves storage space and has good refrigeration uniformity.

3. The container is monitored throughout the process, which can realize remote control, temperature checking, alarm, intelligent and convenient.

4. It adopts a refrigerated container with an integrated structure, which is beautiful and easy to transport.

5. The interior is made of stainless steel, and the floor is a T-shaped aluminum plate, which is clean and hygienic with high strength. The board is high-density foamed with good thermal insulation performance.

Technical Parameters

Container Type

20 feet for fresh

20 feet for freeze

20 feet for quick freeze

40 feet for freeze

Refrigerating Unit Type

XSJZ30F

XSJZ60F

SLJZ250

XSJZ80F

Refrigerant

R404

R404

R507

R404

Phase/Power Supply

2N～220V 50Hz

3N～380V/460V 50Hz/60Hz

3N～380V/460V 50Hz/60Hz

3N～380V/460V 50Hz/60Hz

Refrigerating Capacity/Power (ambient temperature 38℃, storage temperature 0℃)

6.2KW/3.8kw

13.5KW/6.8kw

27*2KW/13.5*2kw

17KW/8.5kw

Refrigerating Capacity/Power (ambient temperature 38℃, storage temperature -18℃)

4KW/3.2kw

6.5KW/4.8kw

12.5*2KW/12.1*2kw

8KW/6kw

Outer Size(mm)

6058*2438*2591

6058*2438*2591

6058*2438*2591

12192*2438*2896

Inner Size(mm)

5420*2260*2240

5420*2260*2240

4800*2260*2240

11200*2290*2500

Net Weight(kg)

2870

2870

3170

4740

Inner Volume

28.4

28.4

24.3

67.5
