Description

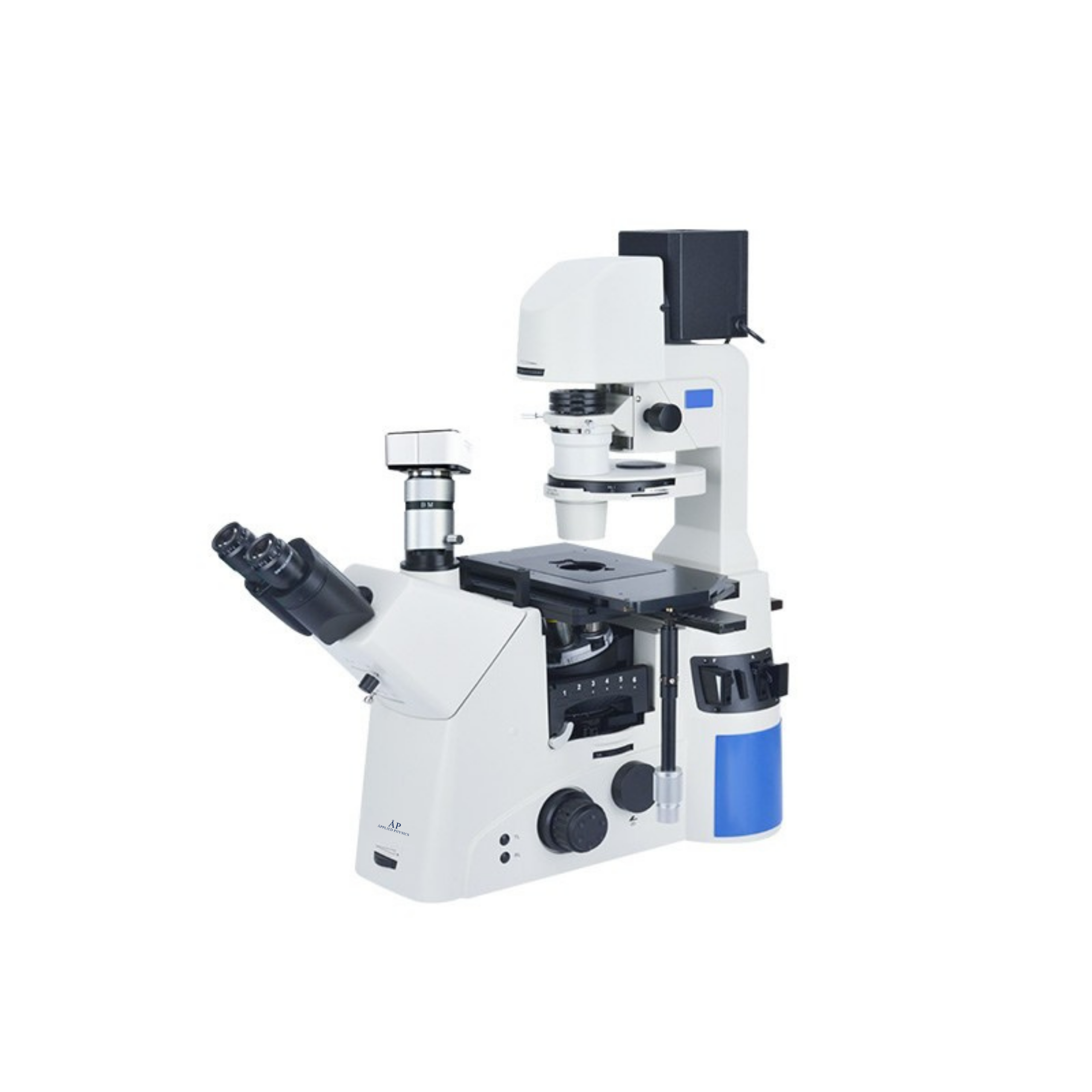

Inverted Biological Microscope BMI-39XD Technical Parameters: Model BMI-39XD Optical System Infinite optical system View Head Compensation free trinocular head, Inclined at 45°, 360° rotatable, interpupillary 47~78mm Eyepiece WF10X/22mm Infinite Plan Phase Achromatic Objective 4X N.A=0.30 WD=7.40mm 20X N.A=0.45 WD=7.50~8.80mm 40X N.A=0.60 WD=3.00~4.40mm Focusing Coaxial Coarse&Fine Adjustable System, Range 30mm, Fine Division 0.002mm Stage Three Layers Mechanical Stage 340*230mm, Moving Range 130*85mm Condenser ELWD condenser NA0.3, LWD 26mm Illumination Transmission illumination: Halogen lamp, 12V/100W, Kohler illumination Epi-illumination: 100w fluorescent mercury lamp Filter Blue, yellow, green Imaging System 2000W CMOS Camera, MCL-Z adapter Power Supply AC85~240V, 50/60Hz Package Size 820*880*570mm Gross Weight 32kg
