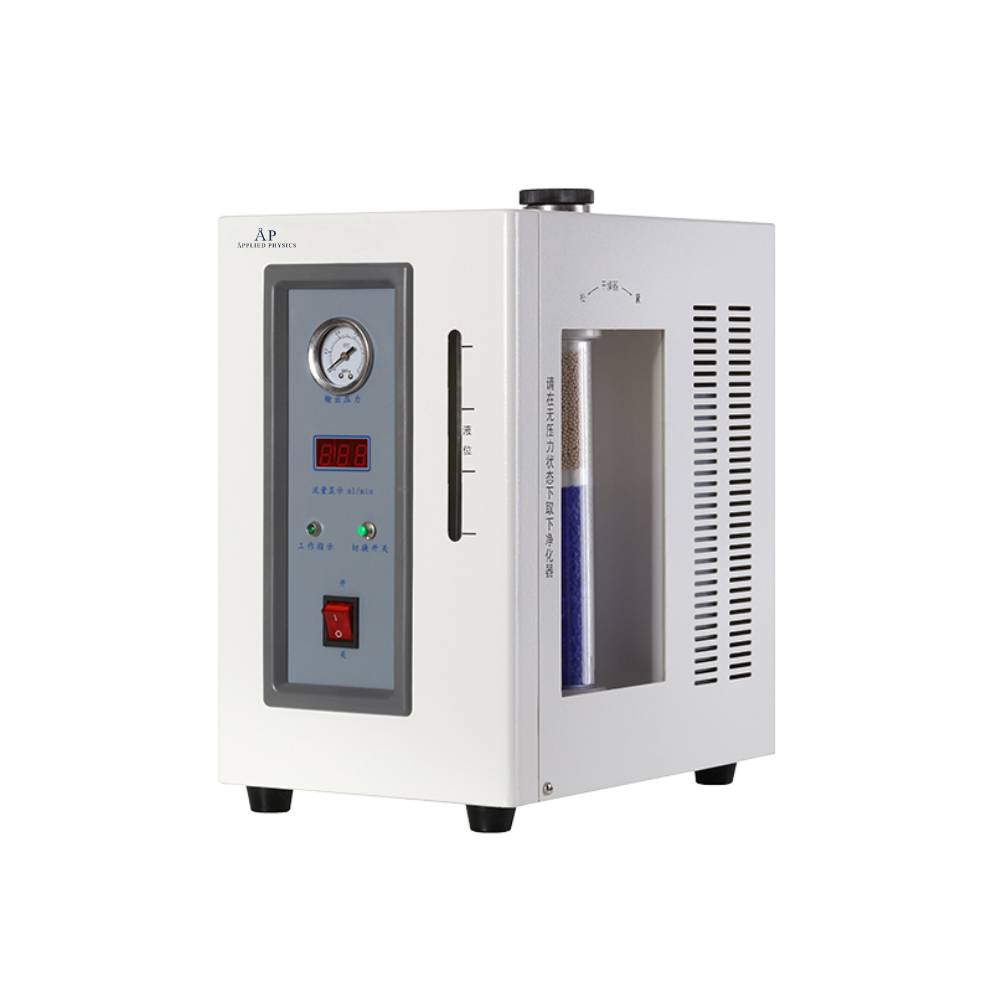

Laboratory Nitrogen Generator

Description

Laboratory Nitrogen Generator

Features:

1. Improved double-cathode stainless steel electrolytic separation cell. Nitrogen production by electrolysis

and oxygen exhaust are carried out simultaneously, and the electrolyte circulation is unimpeded.

2. The electrolysis separation cell has large electrolysis area, low cell temperature, large gas production,

and higher nitrogen purity.

3. The unique anti-liquid return device ensures that the instrument will never return liquid.

4. Equipped with the function of voltage stabilization and automatic closing of the gas circuit after power failure.

5. Adopt advanced switching power supply to improve the efficiency of electrolysis and separation.

6. Small size and light weight, some products use oil-free compressors.(NG-300P/500P).

7. Need external air source(NG-300ll/500ll).

Technical Parameters:

Model

NG-300II

NG-500II

NG-300P

NG-500P

Output Flow(ml/min)

0~300ml/min

0~500ml/min

0~300ml/min

0~500ml/min

Output Pressure

0~0.5Mpa(Factory setting 0.4Mpa)

Purity

>99.997%

Surrounding Requirement

Temperature 10~40°C

Humidity≤85%

Consumption

80W

120W

650W

750W

Power Supply

AC220V±10%, 50Hz±5%(Standard); AC110, 60Hz(Optional)

Instrument Size(W*D*H)

320*220*370mm

400*300*640mm

Package Size(W*D*H)

390*280*430mm

475*375*720mm

Net Weight

15kg

40kg

Gross Weight

17kg

42kg
