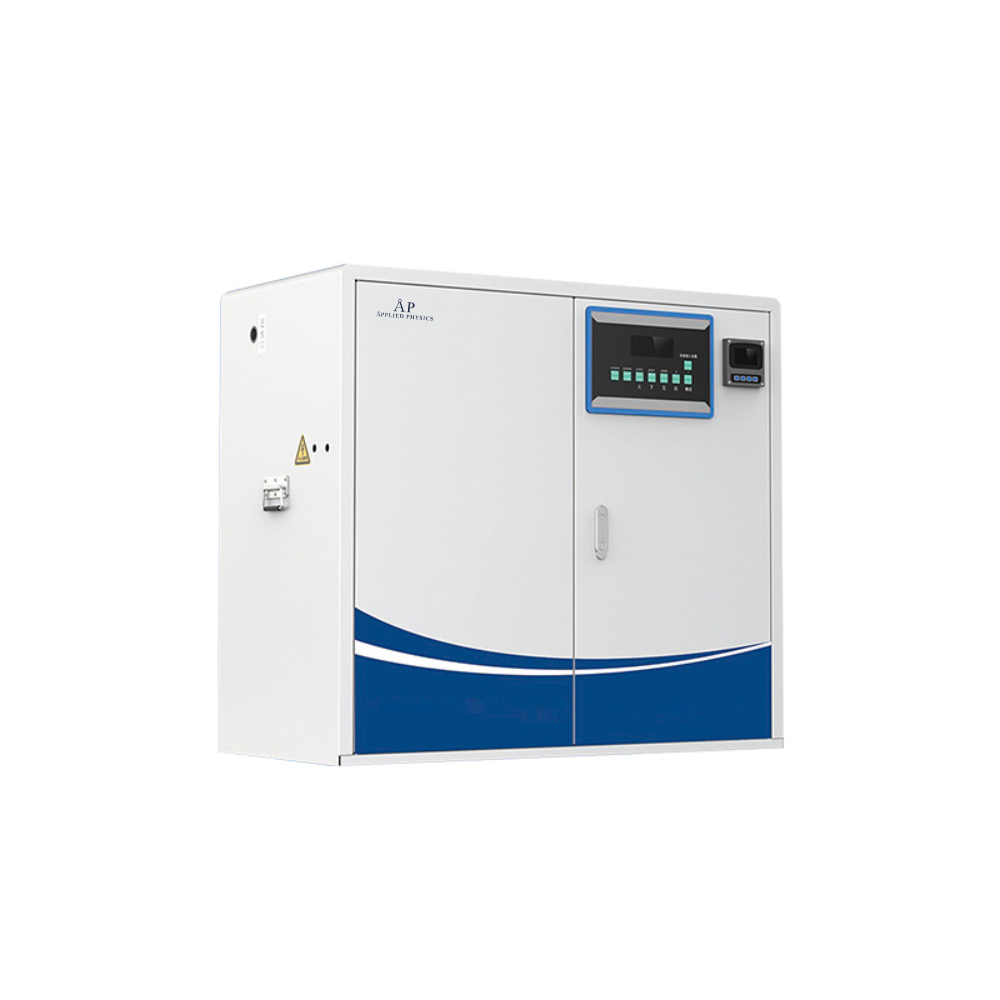

Laboratory Wastewater Treatment System BK-SFS200 BK-SFS500

Description

Laboratory Wastewater Treatment System BK-SFS200 BK-SFS500

Features:

1. Perfect processing technology

Various kinds of pollutants in sewage are treated by chemical reaction, aeration oxidation, ozone disinfection, multi-medium filtration, ultraviolet lamp disinfection and other technologies.

2. Intelligent monitoring

The intelligent man-machine control system is adopted to monitor and control the change of sewage quality and the treatment process in real time, so as to realize all-weather automatic operation without special person on duty.

3. High-efficient sterilization

Compared with the traditional equipment, this system has the advantages of simple and convenient operation and strong sterilization ability.

4. Accurate dosing

Imported metering pump is used to accurately control the dosage, and equipped with liquid level control, drug shortage alarm and other devices.

5. Easy operating

Easy to operate, stable operation, long service life, low cost of operation and maintenance.

Technical Parameters:

Model

BK-SFS200

BK-SFS500

Treated Water Volume

200L/Day(8 hours)

500L/Day(8 hours)

PH measurement Range

0~14

PH Adjustment Value

6~9

Resolution

0.01pH

Accuracy

±0.02pH

Processing System

Neutralization precipitation+compound disinfection(ozone oxidation, Oxidizing agent oxidation)+UV sterilization+multi-stage filtration

Neutralization precipitation+compound disinfection(ozone oxidation, Oxidizing agent oxidation)+UV sterilization+ multi-stage filtration+aeration+photocatalysis(optional)+

microelectrolysis

Flush Mode

With positive and negative flushing methods

Water Input Way

Imbibition inlet

Imbibition inlet and artesian inlet

Antifreeze Device

With antifreeze heating function, the antifreeze function starts automatically when the degree is lower than 5°C

Lack of Fluid Alarm

Multi-channel liquid level detection, with drug liquid shortage alarm function, automatic waste water treatment

Power Supply

Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz

Packing Size(W*D*H)

Machine: 1055*559*948mm Accessories: 315*555*165mm

Machine: 1500*710*1415mm

Accessories: 515*515*1315mm

Gross Weight

102.5kg

220kg
