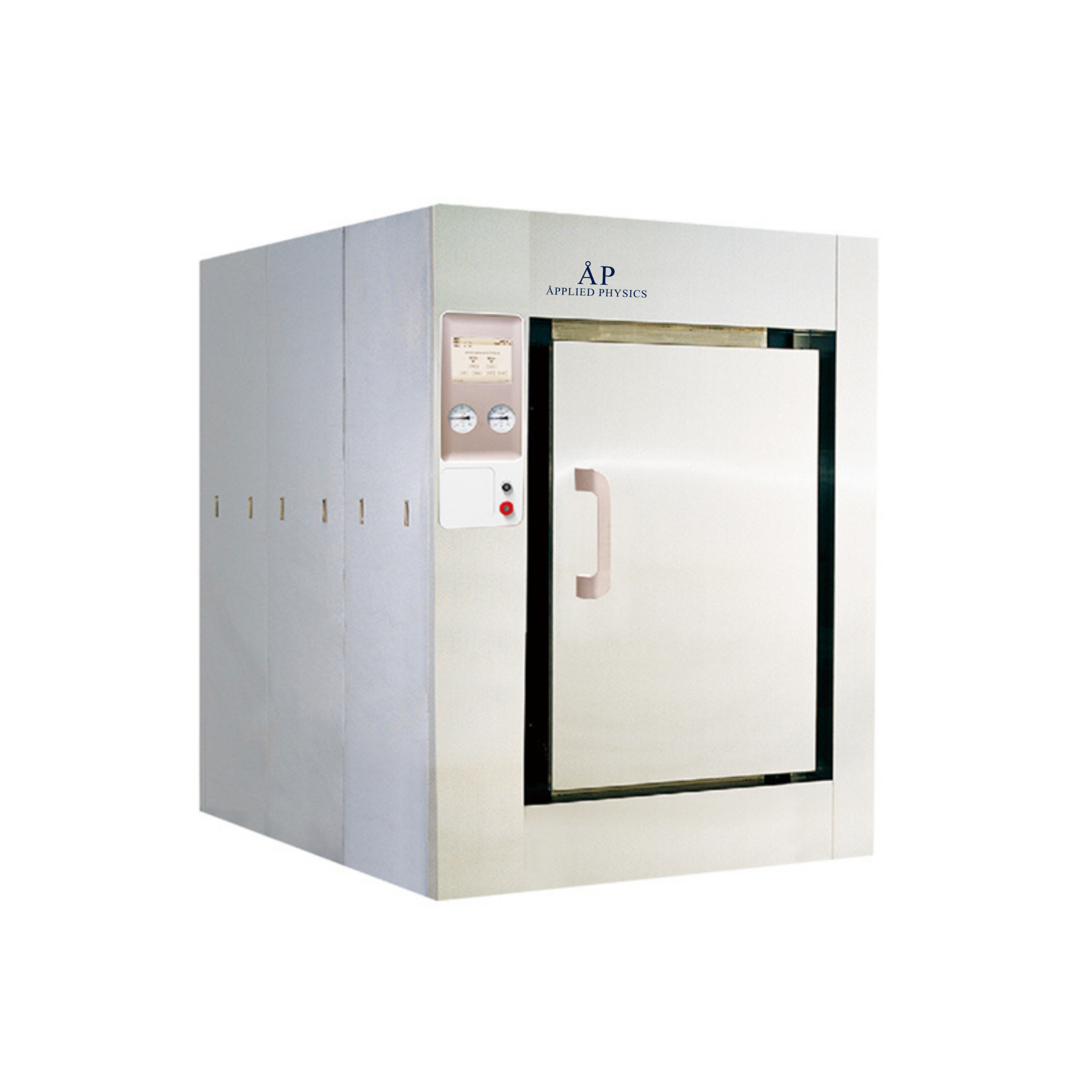

Large Steam Autoclave Medical Sterilizing Machine

Description

Large Steam Autoclave Medical Sterilizing Machine

 Large Steam Autoclave Medical Sterilizing Machine



Features:

Superb chamber machining and welding process

The acid-proof stainless steel chamber and jacket are automatically robot-welded to guarantee long time and trouble-free operation.

Nice chamber surface

Surface smoothness, Ra≤0.5; No welding part or bolt in the chamber which effectively protect the items to

besterilized.

Steam baffle plates are surrounded by silicon rubber protecting the chamber surface.

Reliable and durable chamber

Chamber is designed according to professional analytical method. High-emulation software ANSYS is used for

chamber simulation. Design service life: 10 years (or 20000 times sterilization)

Reasonable sealing structure

Compact designed sealing groove, durable circular hollow silicon gasket, sealed by compressed air.

Hanged door automatically

The door is driven by a motor automatically, stable and easy operation. Door concave-convex tooth structure

ensures its safety and durability.

Precise pressure detecting and control

Intelligent pressure transmitters, Wika(Germany), ensure steam pressure detecting and control both in Chamber and

jacket.

Unique vacuum noise-reduction system

LNS low-noise and water-saving vacuum system, effective reduced the noise during running.

Humanized operation system

Colorful touch screen on loading-side, 6 indicating lamps on unloading sides, which are concise, vivid and exactly

showing sterilizing running status and alarming information.

Reasonable pipeline layout

All the pipes, calves and components are designed and installed in single side, which is more convenience for

repair and maintenance. The sterilizers can be installed against the wall and also, two sterilizers can use the same

maintenance space to save installation space.

Scientific Design Parameters, Wide Scope of Application:

Application:

BKQ-D/S is a fast, compact and versatile sterilizer which is researched and developed according to the latest requirements of medical institution and CSSD. It is designed and manufactured combines high capacity with cost-efficiency, while offering high operating reliability and easy maintenance.



Item

Chamber

Jacket

Design Pressure Mpa

-0.1/0.3

0.3

Design Temperature(℃)

144

144

Working Pressure (Mpa)

-0.1/0.25

0.25

Max Working Temperature(℃)

139

139

Safety Valve Open Pressure

0.28

0.28



Models:

Model

Volume

Chamber size

(W*D*H)

External size

(W*D*H)

Net weight

Power consumption

Power supply

BKQ-140D-A

146L

420*420*830mm

1290*1680*1050mm

425 Kg

2.5KW

380V,50Hz

BKQ-140DD-A

525 Kg

18KW

BKQ-140S-A

1290*1680*1100mm

510 Kg

2.5KW

BKQ-140SD-A

610 Kg

18KW

BKQ-240D-A

241L

600*600*670mm

1370*1880*950mm

580 Kg

2.5KW

380V,50Hz

BKQ-240DD-A

660 Kg

24KW

BKQ-240S-A

1370*1880*1000mm

660 Kg

2.5KW

BKQ-240SD-A

720 Kg

24KW

BKQ-350D-A

352L

600*600*980mm

1215*1880*1190mm

780 Kg

2.5KW

380V,50Hz

BKQ-350DD-A

880 Kg

24KW

BKQ-350S-A

1215*1880*1240mm

860 Kg

2.5KW

BKQ-350SD-A

960 Kg

24KW

BKQ-350D-B

1215*1880*1190mm

880 Kg

2.5KW

380V,50Hz

BKQ-350DD-B

1000 Kg

24KW

BKQ-350S-B

1215*1880*1240mm

960 Kg

2.5KW

BKQ-350SD-B

1080 Kg

24KW

BKQ-650D-B

655L

610*910*1180mm

1310*2070*1370mm

1170 Kg

4KW

BKQ-650DD-B

1270 Kg

46KW

BKQ-650S-B

1310*2070*1420mm

1270 Kg

4KW

BKQ-650SD-B

1370 Kg

46KW

BKQ-810D-B

810L

610*910*1460mm

1310*2070*1650mm

1260 Kg

4KW

380V,50Hz

BKQ-810DD-B

1360 Kg

61KW

BKQ-810S-B

1310*2070*1700mm

1360 Kg

4KW

BKQ-810SD-B

1460 Kg

61KW

BKQ-990D-B

999L

610*910*1800mm

1310*2070*1990mm

1300 Kg

4KW

380V,50Hz

BKQ-990DD-B

1400 Kg

61KW

BKQ-990S-B

1310*2070*2040mm

1400 Kg

4KW

BKQ-990SD-B

1500 Kg

61KW

BKQ-1200D-B

1203L

680*1180*1500mm

1450*1990*1710mm

1950 Kg

5KW

380V,50Hz

BKQ-1200S-B

1450*1990*1760mm

2050 Kg

5KW

BKQ-1500D-B

1500L

680*1180*1870mm

1450*1990*2080mm

2111 Kg

5KW

380V,50Hz

BKQ-1500S-B

1450*1990*2130mm

2211 Kg

5KW
