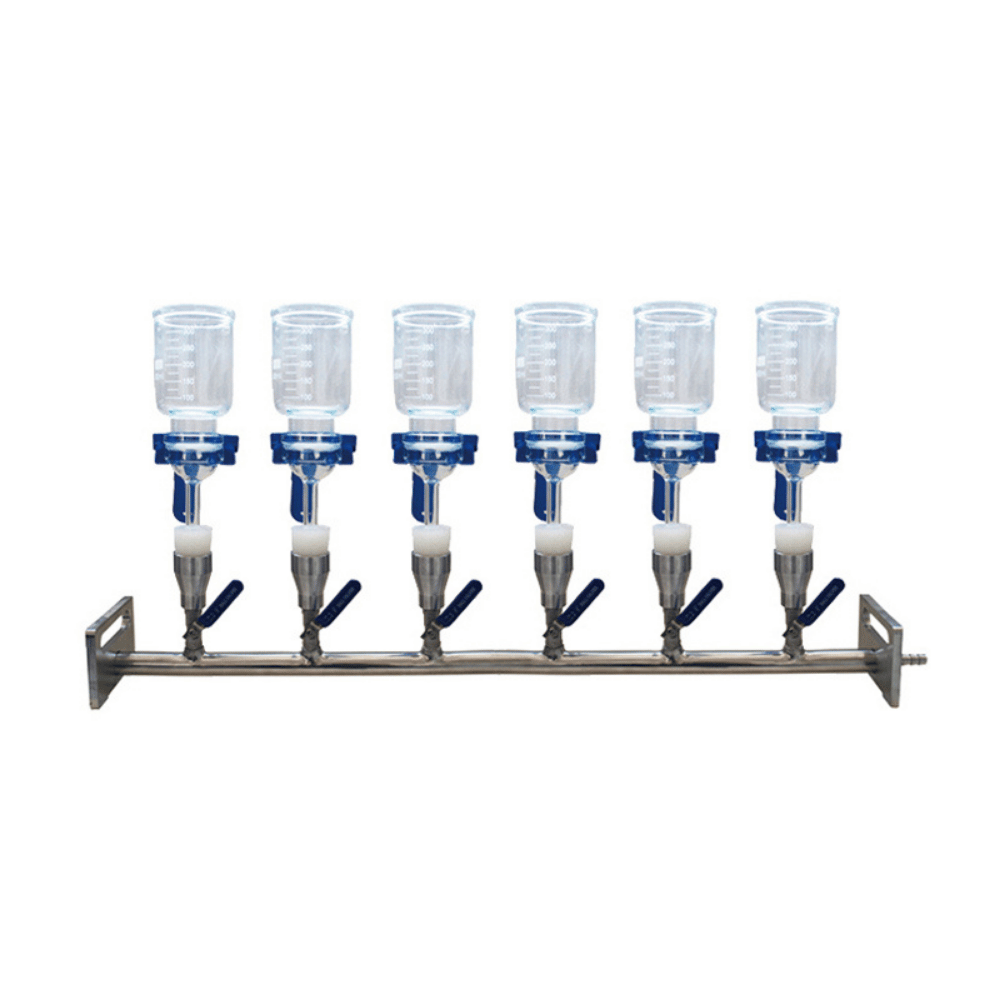

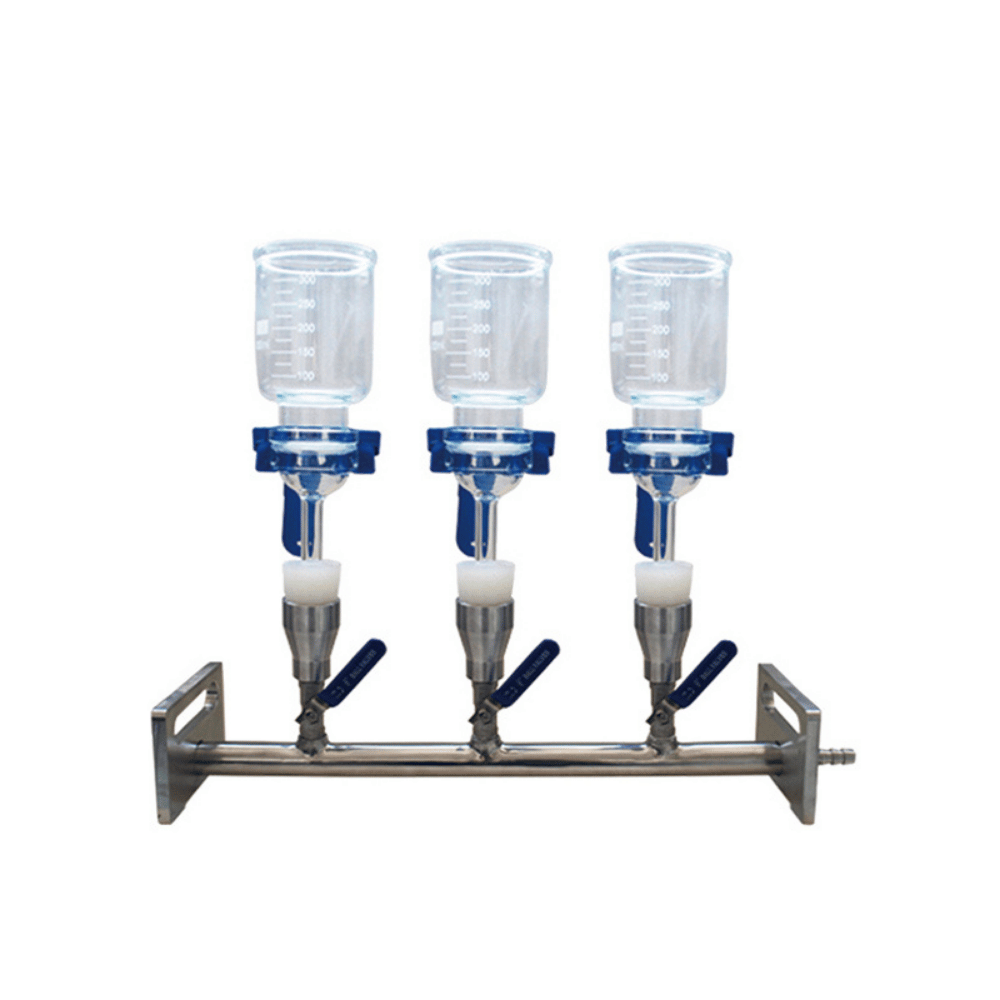

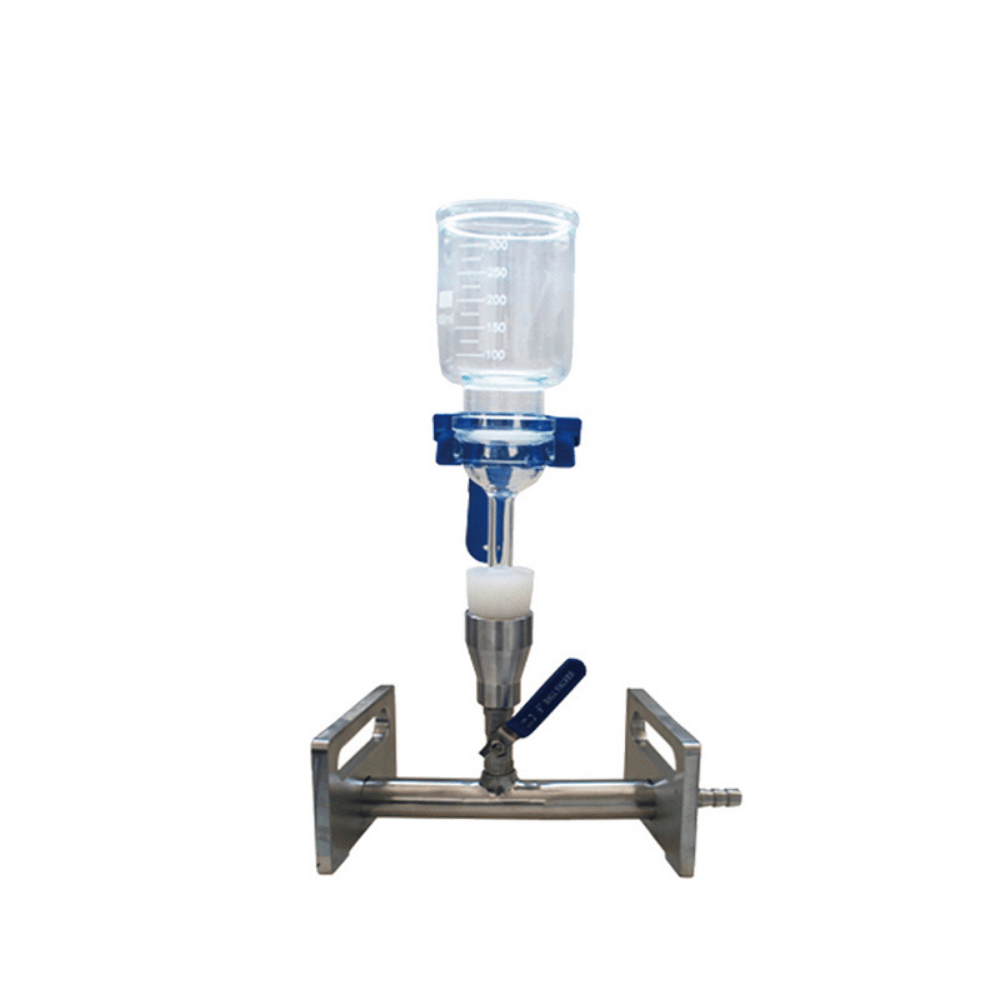

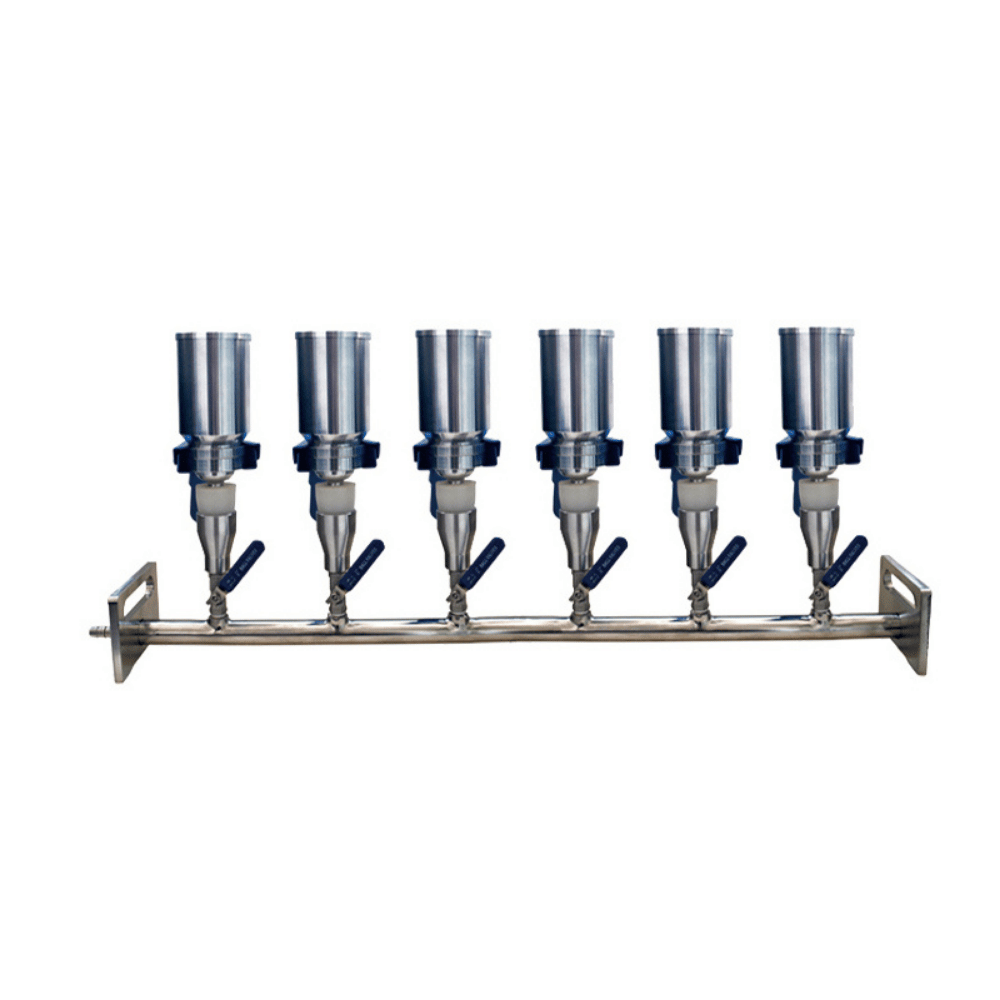

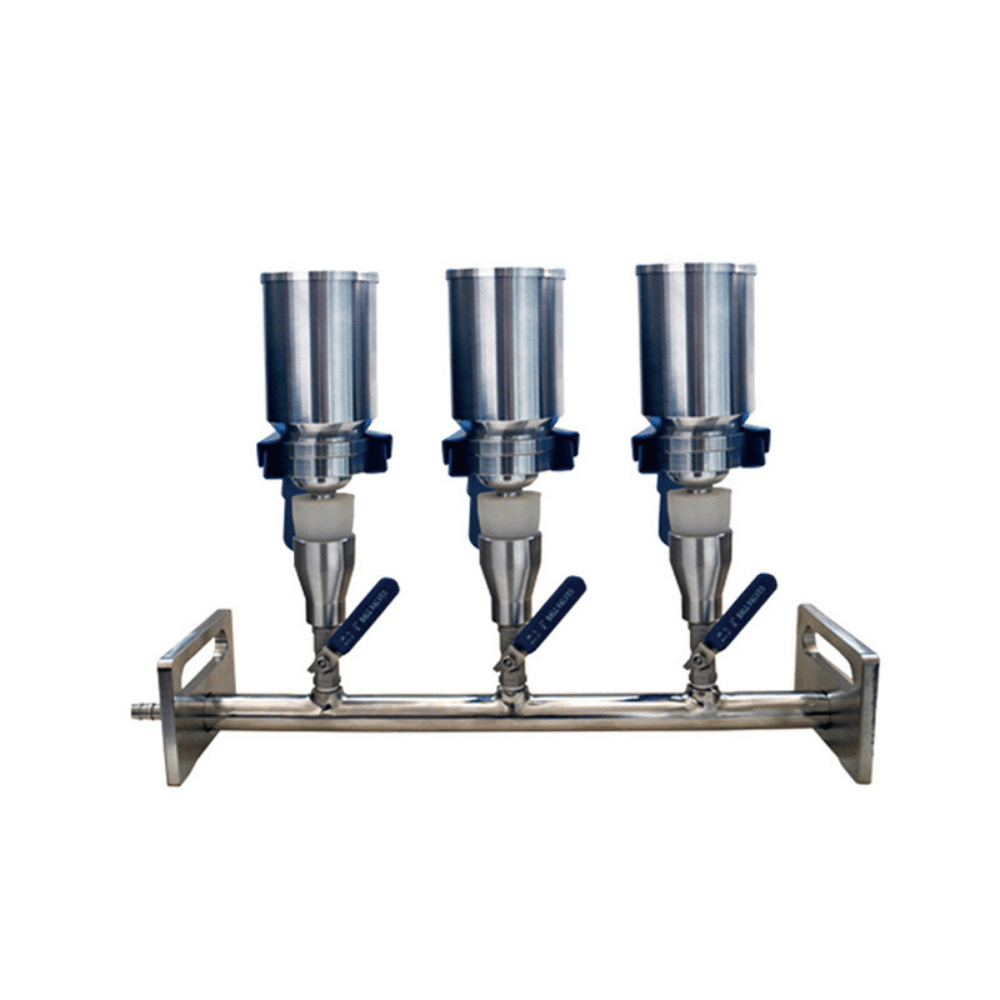

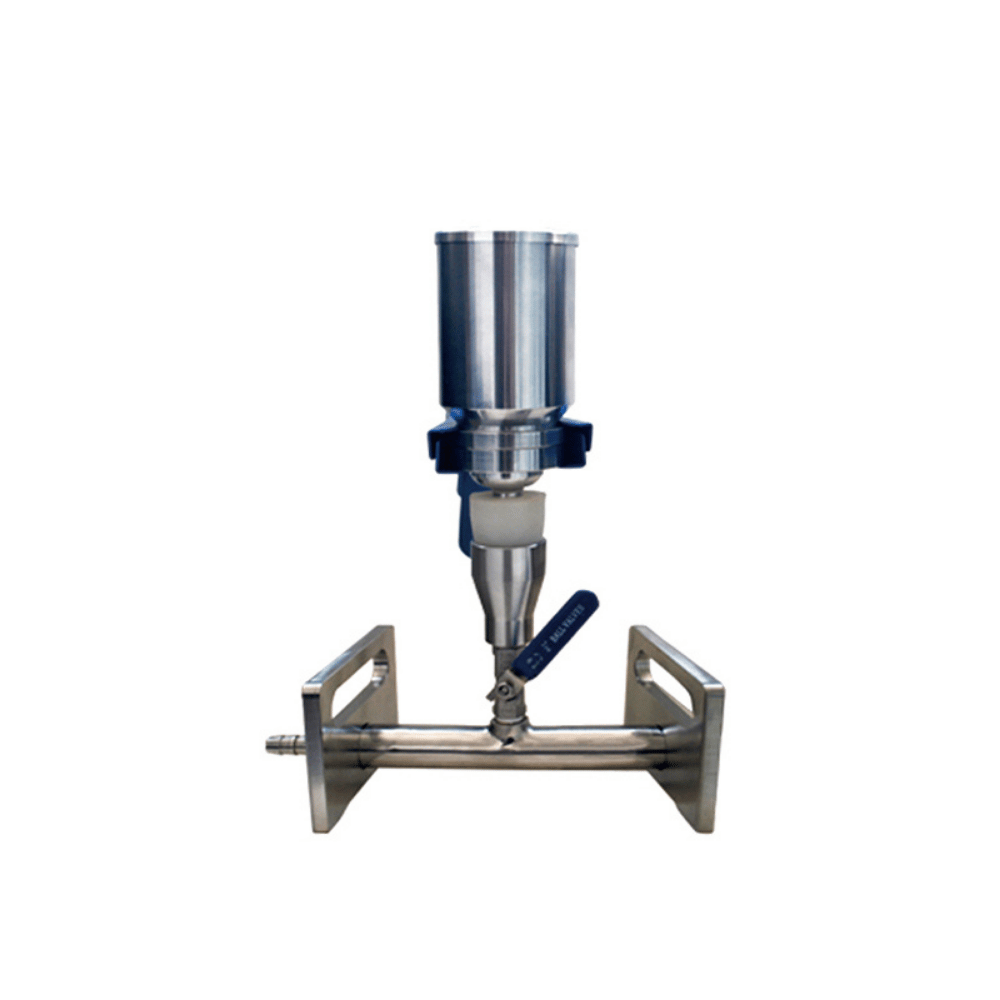

Manifolds Vacuum Filtration(Customized)

Manifolds Vacuum Filtration(Customized) Features: 1. It is convenient to filtrate several samples at the same time. 2. 316L stainless steel holder, corrosion resistance, acid and alkali resistance. 3. Each holder has individual control valve, so one vacuum pump can support operations of single and multi-branch manifold filter. 4. Each individual manifold component(filter heads, valves and hose connections) is removable for easy cleaning and autoclaving at 121ºC. 5. Valves for vacuum control and air release. 6. Built-in check valve to prevent backflow from the vacuum system. 7. It can be widely used in chemistry analysis, pharmaceutical, sanitation test, water quality analysis, science research fields and so on. Standard Accessory: 1.  316L stainless steel holder. 2.  Glass funnel(300ml)/316L stainless steel funnel(300ml). 3.  Borosilicate glass filter head/316L stainless steel filter head. 4.  Lid. 5.  Stainless steel valve. 6.  Clamp of aluminum alloy Optional Accessories: 1. MVF-1G & MVF-1S: GM-0. 2/0. 33II/0. 5/0. 5II/1. 0 Vacuum pump;  Liquid collecting bottle. 2. MVF 3G & MVF-3S: GM-0. 5/0. 5II/1. 0 Vacuum pump; Liquid collecting bottle. 3. MVF-6G & MVF-6S: GM-1. 0 Vacuum pump; Liquid collecting bottle. Technical Parameters: Model Type Funnel Support Screen&Pore Size Connection Holder Package Size(W*D*H) G.W. MVF-1G 1-branch Glass PTFE, 20μm Ground Joint SS316 270*230*130mm 3kg MVF-1S SS316 SS316, 100μm Integral, SS316 SS316 270*230*130mm 2.9kg MVF-3G 3-branch Glass PTFE, 20μm Ground Joint SS316 535*360*380mm 9kg MVF-3S SS316 SS316, 100μm Integral, SS316 SS316 480*260*130mm 5.7kg MVF-6G 6-branch Glass PTFE, 20μm Ground Joint SS316 965*365*390mm 17kg MVF-6S SS316 SS316, 100μm Integral, SS316 SS316 900*260*130mm 10.3kg
