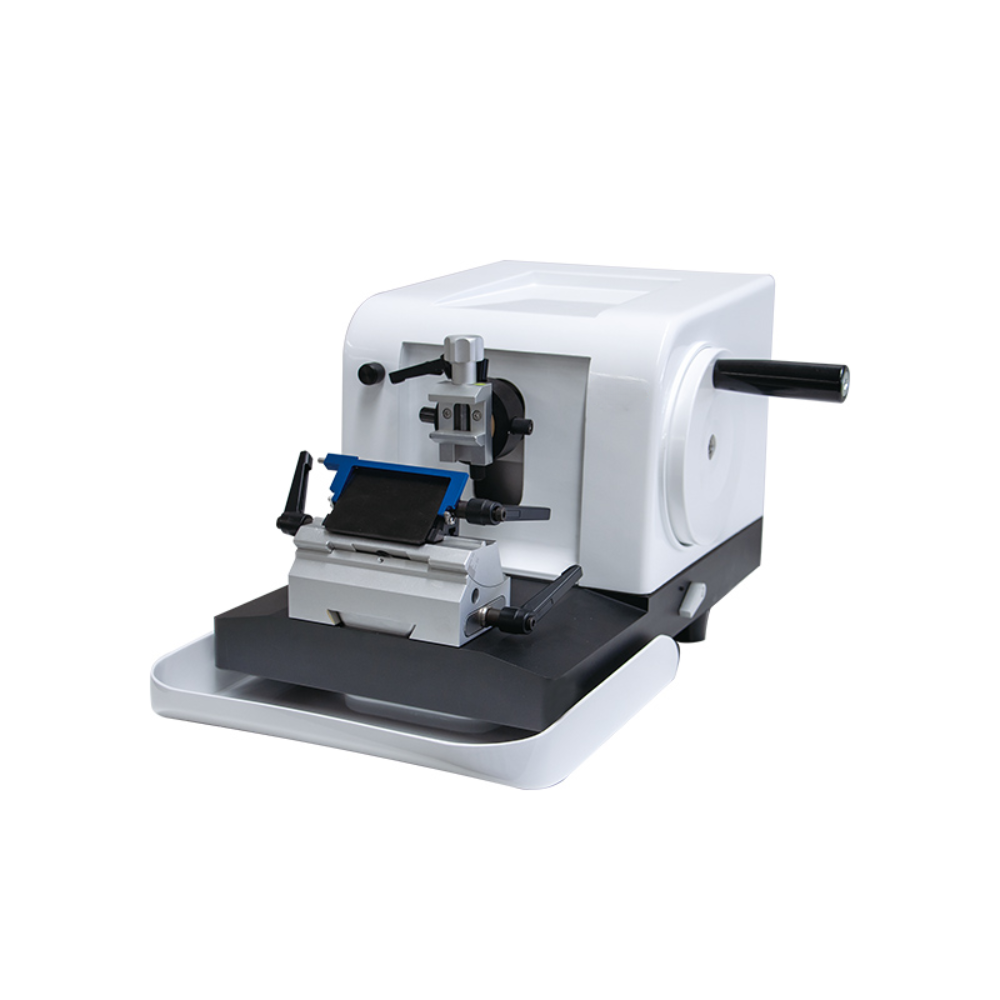

Manual Rotary Microtome BK-2258

Description

Manual Rotary Microtome BK-2258

Features:

1. Blades and wax blocks can be placed in the groove on the top of the cover, which is easy to use.

2. Cross-roller guide rails to ensure long-lasting operation of the equipment.

3. High-precision micro-feeding system to achieve stable and high-precision slicing.

4. The wax block holder can be adjusted in any direction in three-dimensional space, which is easy and accurate to use.

5. The right wheel turns and stops immediately, and can be locked at any position to ensure the safety and convenience of slicing.

6. The counterweight design of the right runner makes slicing light and fast.

7. Precise tool holder lateral movement function, the position of the same sample changes very little after changing the blade edge, the base of the tool holder has a scale, which is convenient for the positioning of the tool holder.

8. The knife guard covers the full length of the blade to avoid the potential risk of injury during operation. When changing the blade, the ejector easily pushes the blade out and removes it safely.

9. Large-capacity removable waste chute, easy to clean.

Technical Parameters：

Model

BK-2258

Sectioning Thickness Range

0~60μm

Trimming Thickness Range

0~60μm

Mini. Sectioning Thickness

0.5μm

Precision

±5%

Max Specimen Size

50*70mm

Specimen Stroke

Horizontal: 28mm, Vertical: 52mm

Tool Holder Stroke

The maximum forward and backward movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm

Sample Adjustment Direction

Horizontal 8°

Vertical 8°

Rotation 360°

External Size(W*D*H)

570*470*300mm

Net Weight

29kg

Packing Size(W*D*H)

600*590*530mm

Gross Weight

42kg
