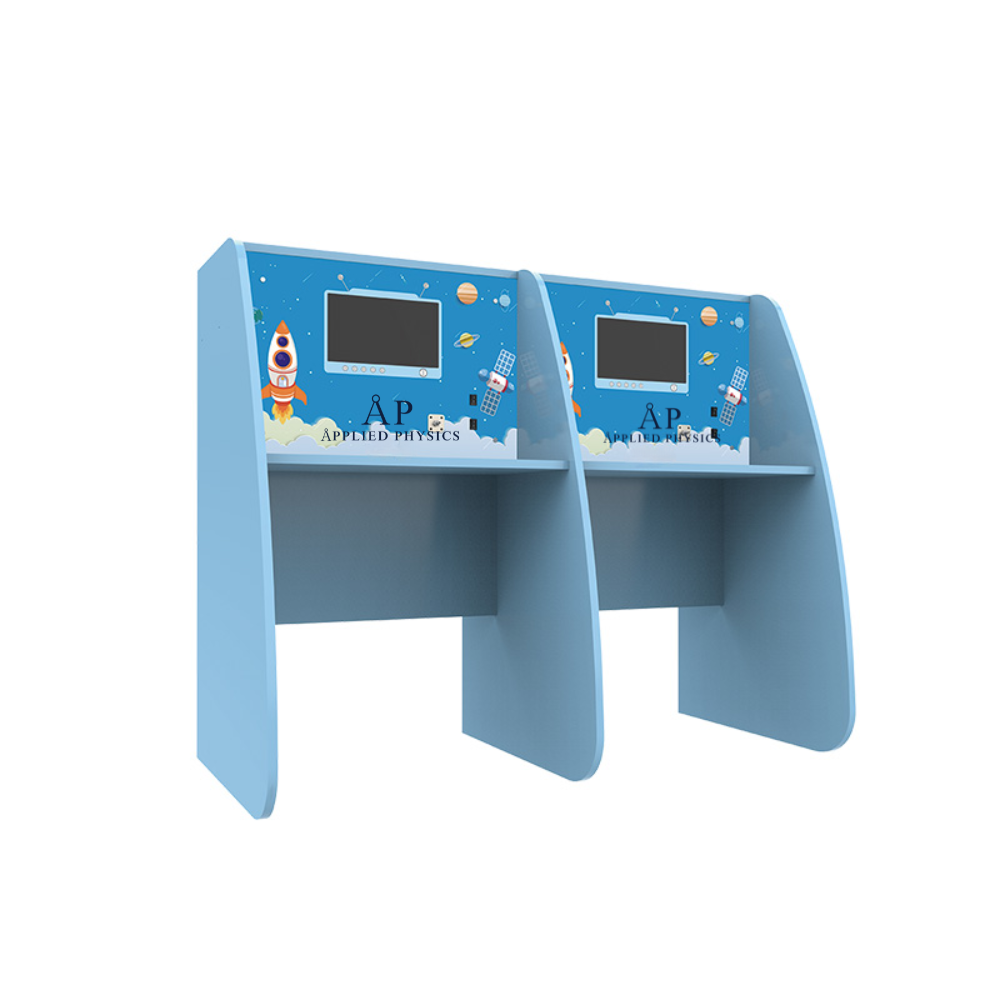

Multimedia Nebulization Therapy Unit

Description

Multimedia Nebulization Therapy Unit

Features:

1. Independent nebulization positions to avoid crowding and cross-infection.

2. 10-inch video animation player, increases interest in treatment, guides children nebulization.

3. One-button start and convenient operation.

4. Built-in medical nebulizer for reliable use.

5. The cartoon layout attracts children and reduces children’s sense of rejection of the hospital.

Technical Parameters:

Model

BK-NT-II

Dispiay

10-inch TFT HD color screen

Sheet Material

16mm particle board

Environmental Protection Level

Class E1

Nebulization Positions

2

Data Storage

U disk and TF card storage, standard with 8G large capacity U disk

Play Function

Support for full-format video playback

Built-in Compression Nebulizer Model

BK-AN-IA

Air Flow Rate

Compressor pump free air flow≥10L/min

Spray Rate

Maximum Atomization Rate≥0.2ml/min

Residual Liquid Medicine Amount

≤1.0ml

Median Diameter of Mist Particle

2.7μm±25% the diameter of Mist particles less than 5μm accounted for>65%

Continuous Working Time

≥4h

Noise

≤60dB(A)

Atmospheric Pressure Range

86kPa~106KPa

Ambient Temperature Range

+5°C~+40°

Relative Humidity Range

30%~75%

Input Power

400VA

Power Supply

AC220V, 50/60Hz

External Size(W*D*H)

1249*600*1025mm

Package Size(W*D*H)

685*730*605mm; 1110*705*445mm

Net Weight

60kg

Gross Weight

40kg; 53kg
