Description

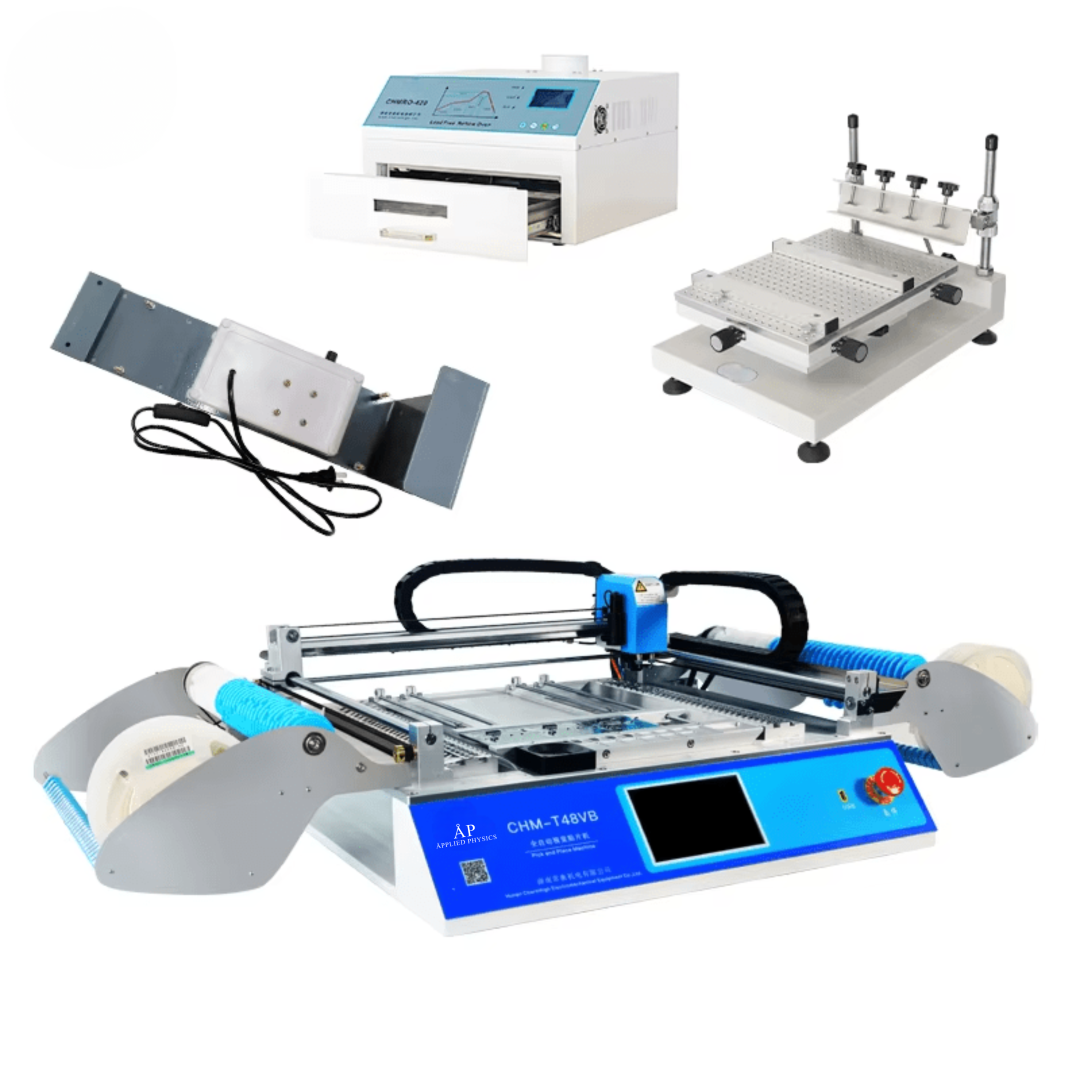

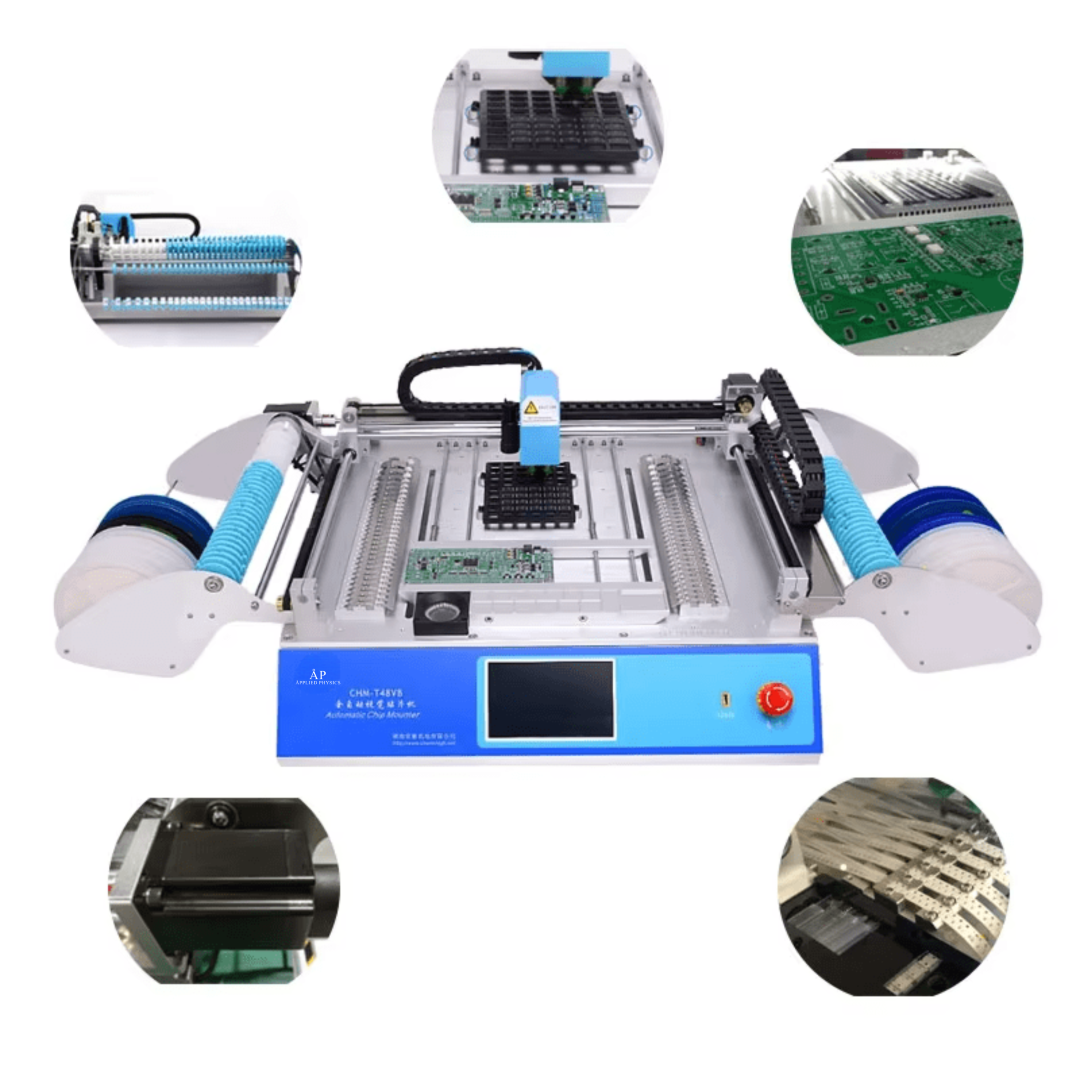

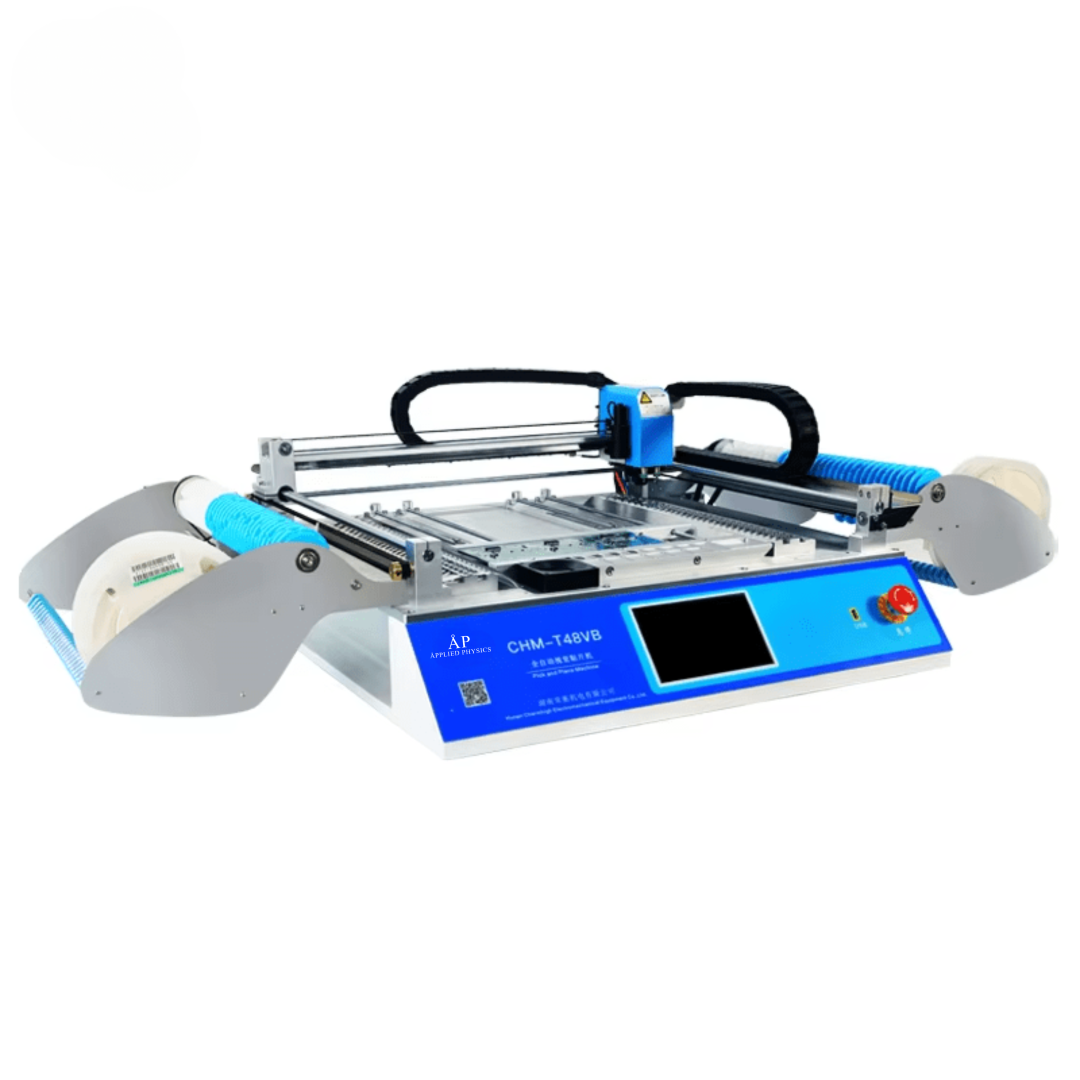

The APS-T48VB from Applied Physics Semiconductor is a compact, desktop vision pick and place machine designed for high-mix, low-to-medium volume SMT assembly. Featuring dual mounting heads and a robust vision system, it is ideal for prototyping, small batch production, and educational or R&D environments. The APS-T48VB supports a wide range of components and PCB sizes, making it a versatile addition to any electronics manufacturing setup.
Key Features
- Large PCB Clamping Area: Supports PCBs up to 345mm (L) x 360mm (W), accommodating a variety of board sizes and assembly processes.
- Dual Mounting Heads: Two independent heads for simultaneous component placement, increasing throughput and efficiency.
- Vision System: Equipped with up-looking and down-looking cameras for automatic component calibration and precise PCB alignment, ensuring accurate placement even for fine-pitch components.
- Flexible Feeding System: Up to 58 tape feeder positions (44×8mm, 8×12mm, 4×16mm, 2×24mm), 14 general IC stacks, and support for custom IC trays and stick feeders, enabling high-mix production.
- User-Friendly Operation: Built-in computer with an embedded Linux operating system and a 7-inch touchscreen interface for intuitive control, no external PC required.
- No External Air Supply Needed: Integrated vacuum pump simplifies setup and operation.
- Closed-Loop Control: X & Y axes driven by stepping motors with encoder-based closed-loop control for high accuracy and reliability.
Technical Specifications
| Specification | Details |
| Model | APS-T48VB |
| Dimensions | 1310mm (L) × 710mm (W) × 340mm (H) |
| Weight | 49 kg |
| Power Supply | AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 300W |
| Air Supply | Not required (built-in vacuum pump) |
| Mounting Head Qty | 2 |
| Mounting Speed | 6000 CPH (optimal, without vision); 4000 CPH (optimal, with vision) |
| Control Accuracy | 0.025 mm |
| Component Type | 0402/0603–5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor, capacitor, diode, LED, IC, etc.) |
| PCB Thickness | 0.6mm–3.5mm |
| PCB Size | 10mm (L) × 10mm (W) up to 345mm (L) × 360mm (W) |
| PCB Conveying | Manual |
| Nozzle Change | Manual |
| Control System | Built-in computer (embedded Linux OS), 7-inch touchscreen |
| Drive System | X&Y axes: stepping motors with closed-loop encoder; Z-axis reset detection; S-curve acceleration |
| Transmission System | Synchronous belt + polished rod + linear guide |
| Feeding System | 58 tape feeders (44×8mm, 8×12mm, 4×16mm, 2×24mm), 14 IC stacks, custom trays/stick feeders |
| Vision System | Up-looking camera (component calibration, up to 22mm×22mm); down-looking camera (PCB mark/component positioning) |
