Description

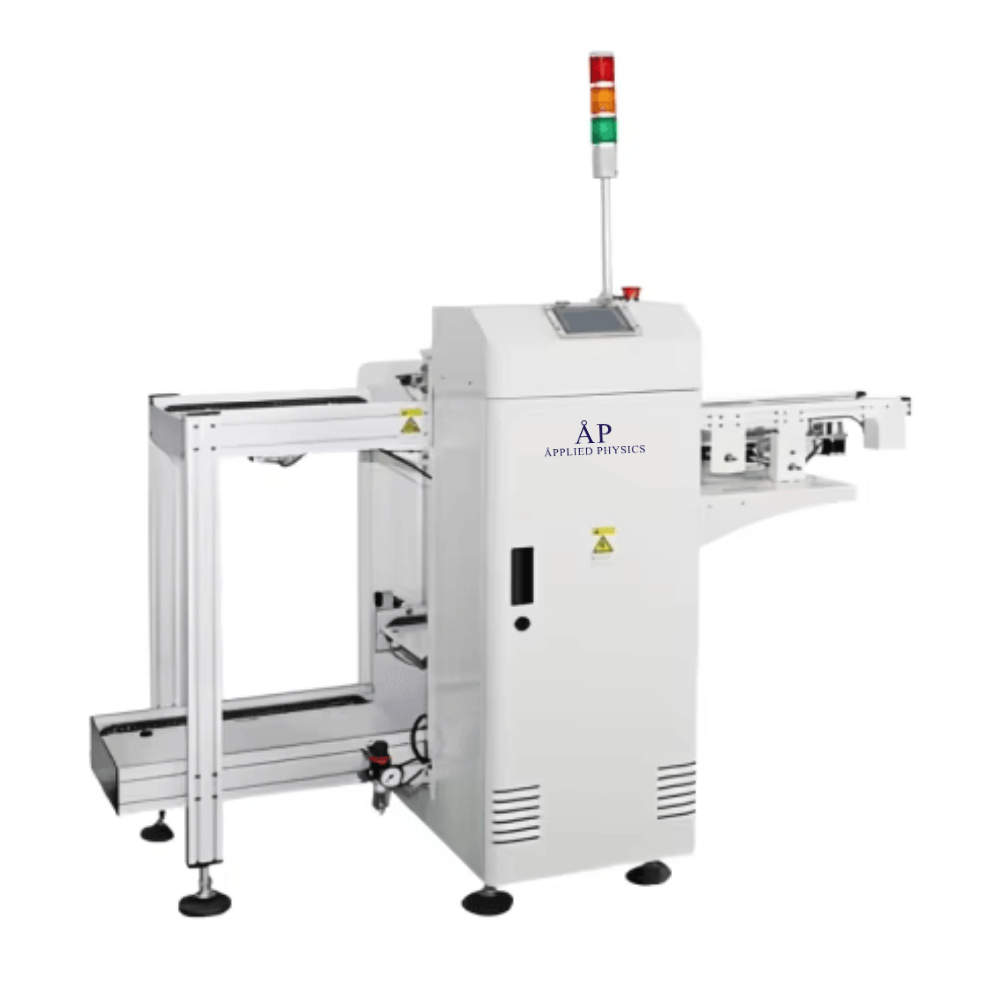

The AP-MLU1600 PCB Magazine Loader/Unloader is engineered for seamless integration with SMT pick and place lines, providing reliable, automated PCB handling for high-efficiency electronics manufacturing. Designed with robust materials and intelligent controls, this loader/unloader ensures smooth, precise, and safe PCB transfer, maximizing throughput and minimizing downtime.
Product Parameters
| Parameter | Specification |
| Dimensions | L1600 × W800 × H1300 mm |
| Guide Rail | Special aluminum profile with houndstooth plastic chain |
| Drive System | 90W brake motor with ball screw for magazine lift |
| Clamping Mechanism | Pneumatic clamp structure |
| Conveyor | 0.6m long push plate conveyor included |
| Magazine Size | L355 × W320 × H565 mm |
| Max PCB Size | L330 × W250 mm |
| Direction | Left to right / Right to left |
| Lifting Platform Pitch | Selectable: 10, 20, 30, 40 mm |
| Controller | PLC programmable controller |
| Board Collection | Automatic board collection function |
| Control Panel | Intelligent true color touch screen |
| Power Supply | 220V 50Hz |
| Air Supply | 0.4–0.6 MPa |
| Full Load Capacity | 50 PCBs per magazine |
| Electric Control | One set included |
Product Details
- Precision Handling: Utilizes a special aluminum profile guide rail and houndstooth plastic chain for smooth, stable magazine movement.
- Reliable Drive System: 90W brake motor with ball screw ensures accurate, stepwise magazine elevation.
- Secure Clamping: The pneumatic clamp structure holds magazines firmly during operation.
- Integrated Conveyor: Includes a 0.6-meter push plate conveyor for efficient PCB transfer.
- Flexible Operation: Supports both left-to-right and right-to-left board flow to suit any SMT line layout.
- Programmable Control: Advanced PLC controller with a true color touch screen for intuitive operation and real-time status monitoring.
- Automatic Board Collection: Streamlines production by automatically collecting finished boards.
- High Capacity: Accommodates up to 50 PCBs per magazine, supporting high-volume manufacturing.
- Adjustable Platform Pitch: Selectable pitch settings (10, 20, 30, 40 mm) for versatile PCB thickness and process requirements.
- Safety & Reliability: Robust construction and intelligent controls ensure safe, continuous operation.
Applications
- SMT pick and place lines
- PCB assembly automation
- Electronics manufacturing
- High-mix, high-volume production environments
Why Choose Applied Physics Semiconductor’s PCB Magazine Loader/Unloader?
- Optimized for Modern SMT Lines: Designed for seamless compatibility with leading pick and place machines.
- Durable & Reliable: Built with premium materials and components for long service life.
- User-Friendly: Intuitive touch screen interface and easy maintenance.
- Flexible Integration: Supports various magazine and PCB sizes, with adjustable direction and pitch.
- Enhanced Productivity: Automatic board collection and high-capacity storage reduce manual handling and increase throughput.
