Description

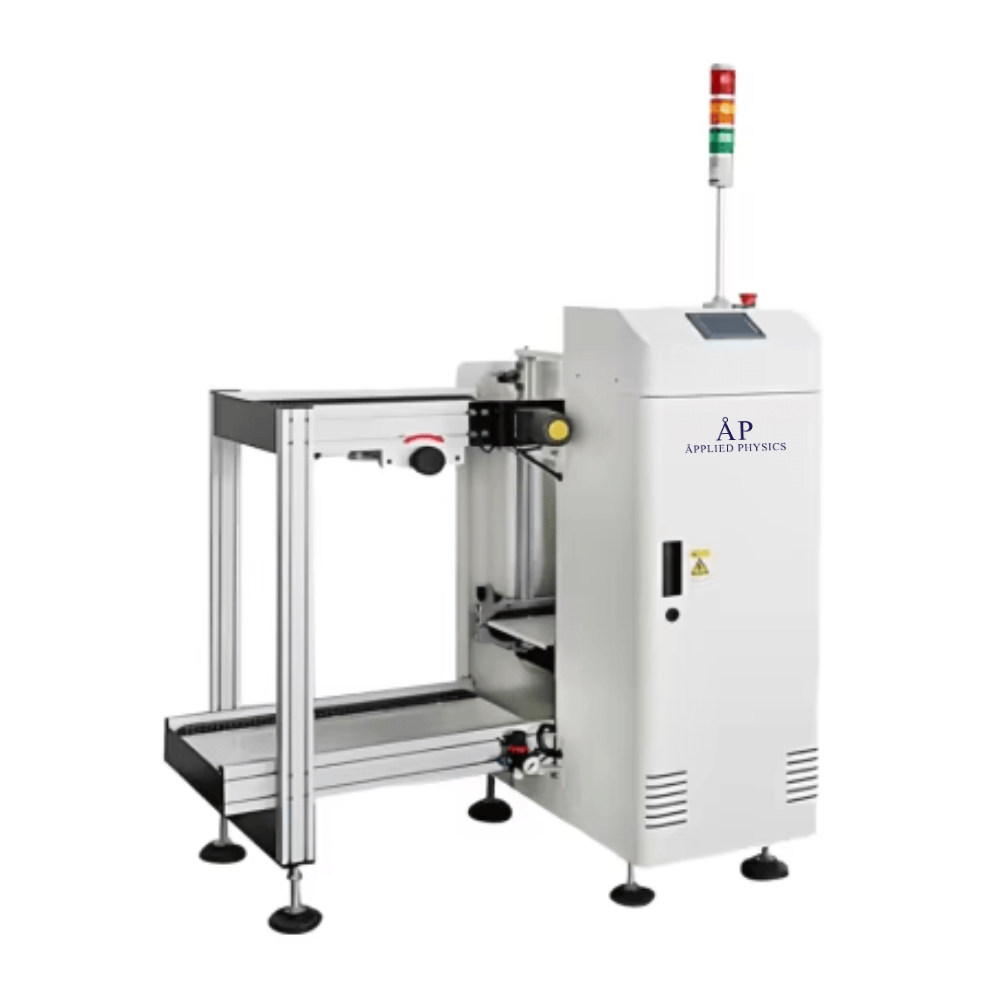

The AP-MLU1150 SMT PCB Magazine Loader and Unloader from Applied Physics Semiconductor is designed for high-efficiency, automated PCB handling in modern SMT production lines. Engineered for reliability and precision, this loader/unloader streamlines board transfer, reduces manual labor, and enhances throughput for electronics manufacturing environments.

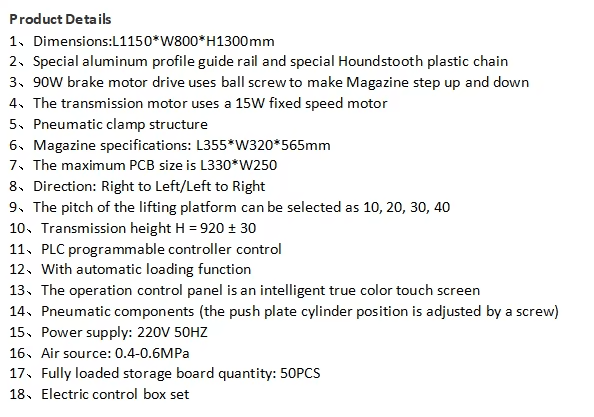

Product Parameters
| Parameter | Specification |
| Dimensions | L1150 × W800 × H1300 mm |
| Guide Rail | Special aluminum profile with houndstooth plastic chain |
| Magazine Lift Drive | 90W brake motor with ball screw |
| Transmission Motor | 15W fixed speed motor |
| Clamping Mechanism | Pneumatic clamp structure |
| Magazine Size | L355 × W320 × H565 mm |
| Max PCB Size | L330 × W250 mm |
| Direction | Right to Left / Left to Right |
| Lifting Platform Pitch | Selectable: 10, 20, 30, 40 mm |
| Transmission Height | H = 920 ± 30 mm |
| Controller | PLC programmable controller |
| Loading Function | Automatic loading |
| Control Panel | Intelligent true color touch screen |
| Pneumatic Components | Push plate cylinder position is adjustable by a screw |
| Power Supply | 220V 50Hz |
| Air Source | 0.4–0.6 MPa |
| Full Load Capacity | 50 PCBs per magazine |
| Electric Control | The electric control box set is included |
Product Details
- Precision Guide Rail: Features a special aluminum profile guide rail with a houndstooth plastic chain for smooth, stable magazine movement.
- Dual Motor System: 90W brake motor with ball screw for precise magazine elevation and a 15W fixed speed motor for consistent transmission.
- Secure Clamping: The pneumatic clamp structure ensures magazines are held firmly during operation.
- Flexible Operation: Supports both right-to-left and left-to-right board flow, adaptable to any SMT line layout.
- Programmable Control: Advanced PLC controller with a true color touch screen for intuitive operation and real-time monitoring.
- Automatic Loading: Streamlines production by automatically loading PCBs into the magazine.
- Adjustable Platform Pitch: Selectable pitch settings (10, 20, 30, 40 mm) accommodate various PCB thicknesses and process requirements.
- Transmission Height: Standardized at 920 ± 30 mm for compatibility with most SMT lines.
- High Capacity: Holds up to 50 PCBs per magazine, supporting high-volume manufacturing.
- Easy Adjustment: Pneumatic components with screw-adjustable push plate cylinder position for quick setup and maintenance.
Applications
- SMT pick and place lines
- PCB assembly automation
- Electronics manufacturing
- High-mix, high-volume production environments
Why Choose Applied Physics Semiconductor’s AP-MLU1150 Loader/Unloader?
- Optimized for Modern SMT Lines: Seamless compatibility with leading pick and place machines.
- Durable & Reliable: Built with premium materials and components for long service life.
- User-Friendly: Intuitive touch screen interface and easy maintenance.
- Flexible Integration: Supports various magazine and PCB sizes, with adjustable direction and pitch.
- Enhanced Productivity: Automatic loading and high-capacity storage reduce manual handling and increase throughput.
