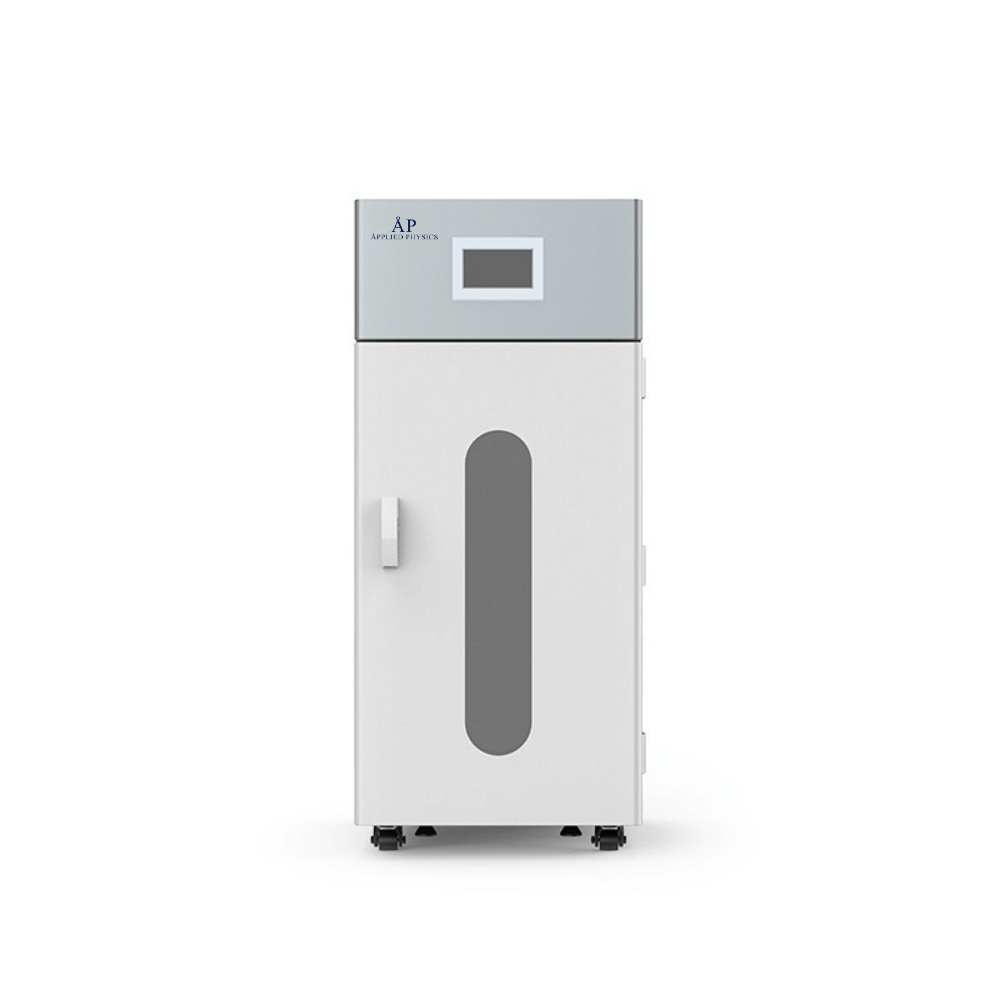

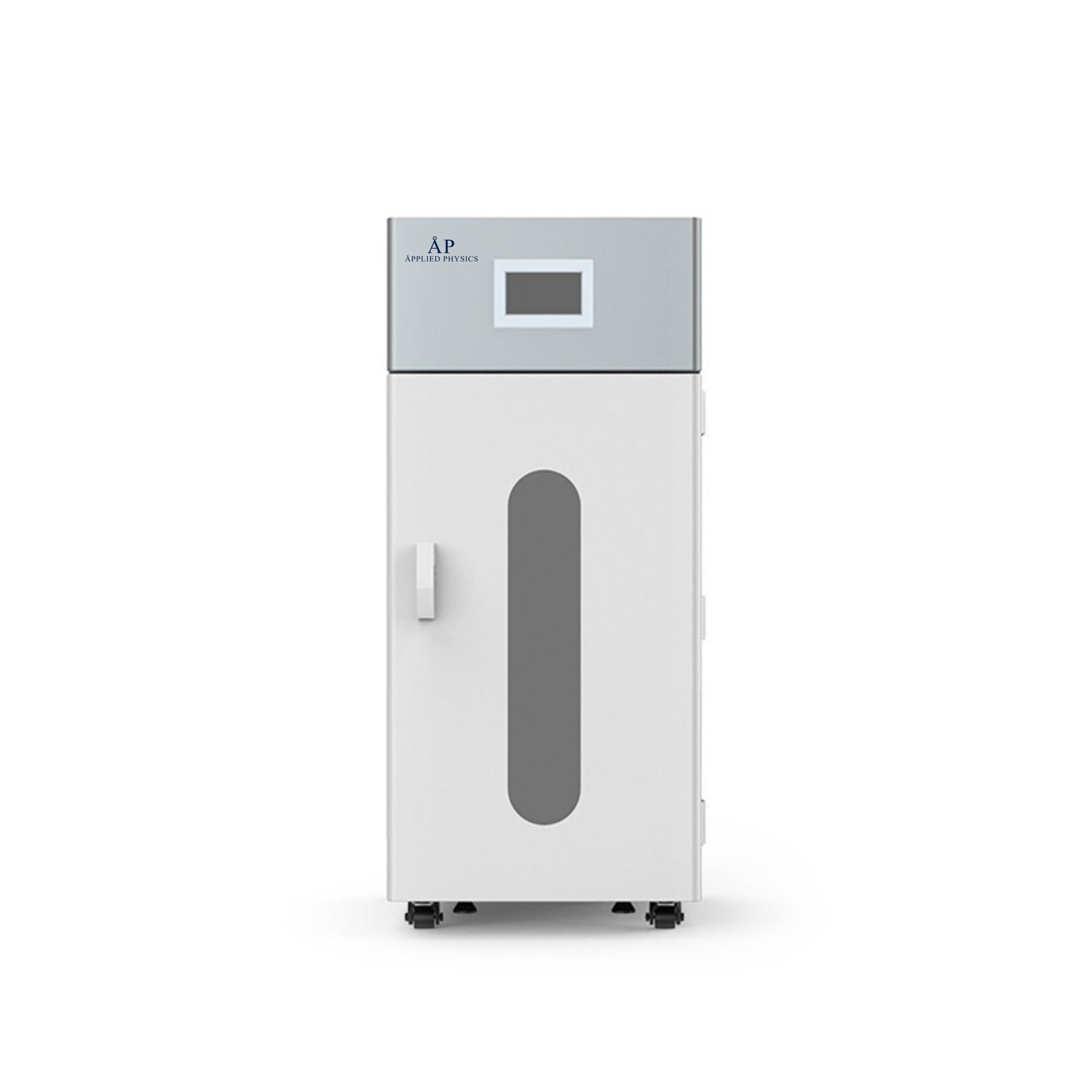

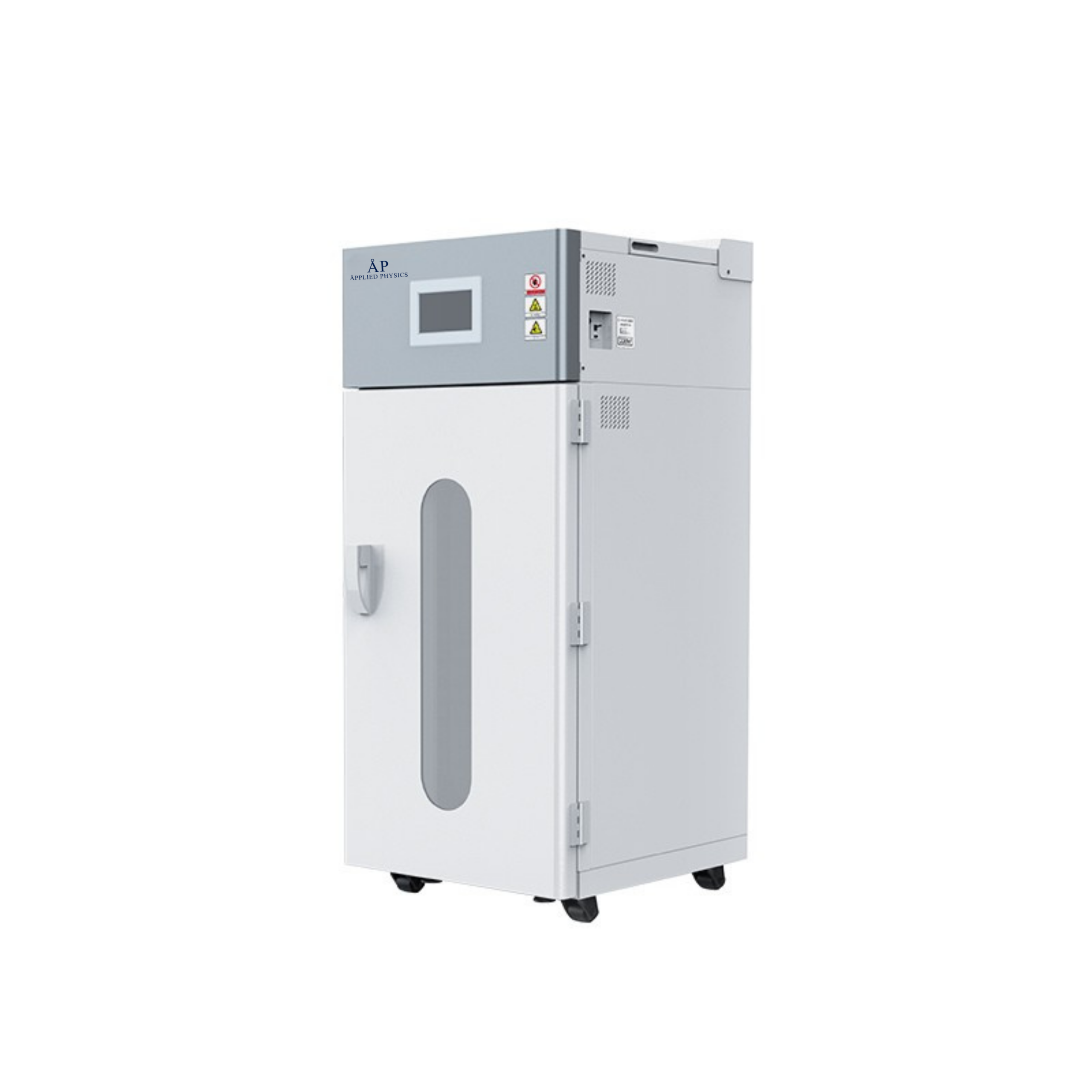

Paraffin Therapy Instrument Model BLL-15A

Description

Paraffin Therapy Instrument Model BLL-15A

Features:

* Automatic paraffin melting, filtering, paraffining, gatch making, heat preservation according to the setting number of gatch disc and gatch thickness, real-time monitoring of machine working status.

* Clock function: the real-time can be set and calibrated.

* Reservation function: make an appointment in advance, shorten the waiting time for gatch making and improve efficiency.

* Constant temperature function: keep the warm of gatch, easy to use.

* Power-off memory function: in case of unexpected power failure, continue the working state before the power failure if the power supply can be restarted within 10 minutes.

* Automatic paraffin release mode and one-button paraffin release mode can be performed.

* Display function: large-screen color LCD touch screen, real-time display of running status.

* Multiple filtration function: multiple filtration system is used to ensure the purity of the paraffin liquid.

* Disc number selection function: you can choose to make 5, 10, 15 plates of gatch according to different clinical needs.

* Thickness adjustment function: gatch thickness is set as required, 10-20mm thickness is optional.

* Countdown function: The countdown status is displayed in real time during the gatch making process, which is convenient to grasp the gatch making time.

* Observation and lighting function: with a large observation window and LED lighting system, convenient to observe the gatch production at any time

* Anti-blocking function: all paraffin tubes are wrapped with carbon fiber wire for heating and insulation to prevent paraffin tube blockage.

* Air duct system: scientific air duct system to ensure uniform solidification of gatch.

* Equipment material: the appearance is made of anti-static coating, the inner room is made of 304 stainless steel, controlled by Siemens PLC, and the accessories are national certified products to ensure high quality.

* Safety performance: with overheating power protection, leakage circuit protection, to ensure safer use.

Technical Parameters:

Model

BLL-15A

Gatch Disc Number

5, 10, 15

Gatch Thickness

10-20mm adjustable

Heating Temp. of Melting Paraffin Box

60~95℃ adjustable, the adjustment interval is 1℃, temp. precision is ±5℃

Heating Temp. of Incubator

35~62℃ adjustable, the adjustment interval is 1℃, precision is ±2℃

Ambient Temp.

+5°C~+35°C

Continuous Working Time

>4h

Power Supply

220V，50Hz

Power

2600VA

External Size(W*D*H)

650*750*1520mm

Package Size(W*D*H)

850*1000*2000mm

Net Weight

275kg

Gross Weight

310kg
