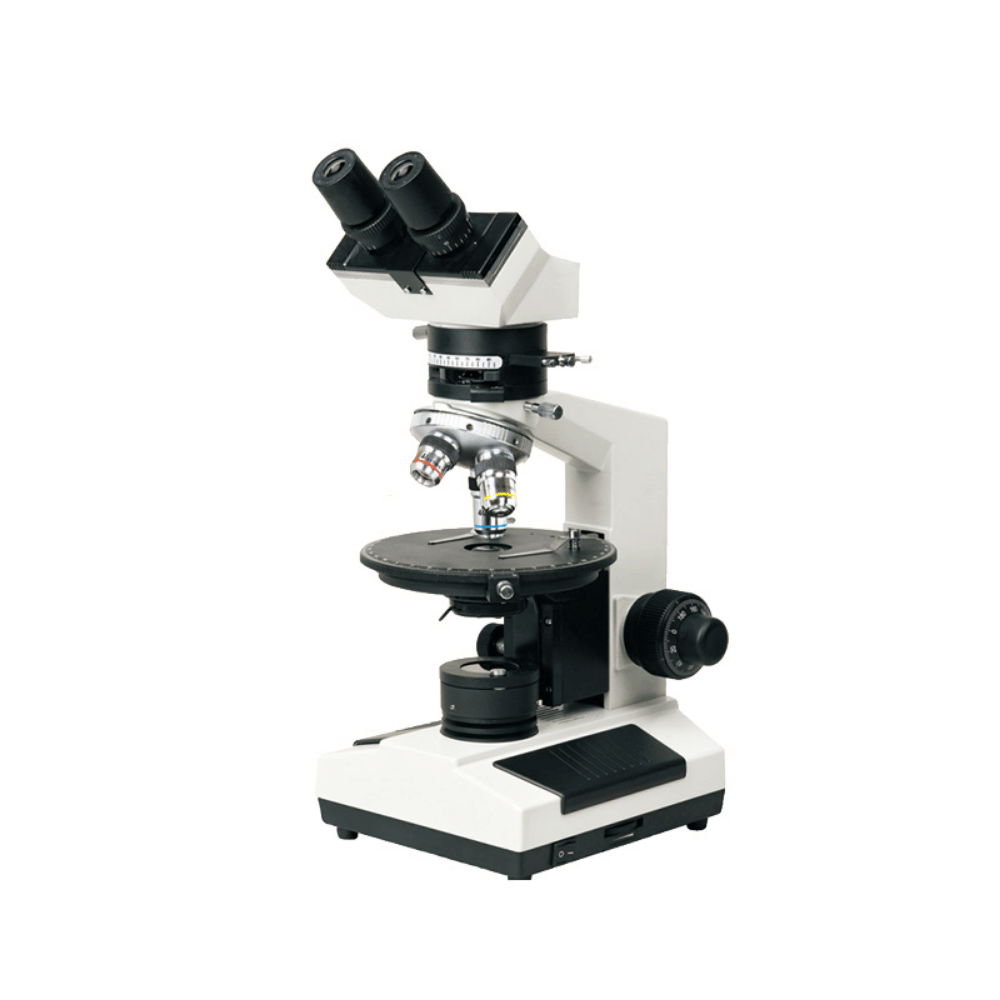

Polarizing Biological Microscope BMP-107B BMP-107T

Polarizing Biological Microscope BMP-107B BMP-107T

Request a Quote

Polarizing biological microscope ‌ is a kind of microscope which uses the polarization property of light to study and identify birefringent substances. By converting ordinary light into polarized light for observation, it is able to clearly distinguish between monorefractive(isotropic) and birefringent(anisotropic) substances. Polarizing microscope is widely used in geology, minerals, metallurgy, chemical industry, semiconductor industry and many other fields .

SKU: AP-BK-MICP-21 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Semiconductor portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Semiconductor Metrology Wafer Standards

Description

Technical Parameters:

Model BMP-107B BMP-107T
Viewing Head Sliding Binocular Head at 45°, 360° rotatable √ /
Sliding Trinocular Head at 45°, 360° rotatable / √
Eyepiece Eyepiece WF10X/18 with Scale of Crosshair √ √
Eyepiece WF10X/18 √ √
Objective Strain free Achromatic Objective 4X, 10X, 40X √ √
Nosepiece Toward Quadruple Nosepiece, Center Adjustable √ √
Analyzer Rotatable Analyzer with Gradation 0°~90° √ √
Bertrand Lens Bertrand Lens, Sliding in/out of Optical Path √ √
Optical Compensator λ Slip(first class red) √ √
1/4λ Slip √ √
Quartz wedge √ √
Revolving

Round Stage

 Diameter Φ160mm, Graduated in 1° Increments, Minimum Resolution 6′ when using Vernier Scale √ √
Condenser Abbe Condenser with Iris Diaphragm & Filter √ √
Focusing Coaxial Coarse&Fine Adjustment, Range 28mm, Fine Division 0.002mm √ √
Polarizer Sliding in/out of Optical Path, Located on the Top of Collector √ √
Illumination 6V/20W Halogen Lamp, Brightness Adjustable √ √
Power Supply AC110~220V, 50/60Hz √ √
Package Size 327*273*425mm √ √
Gross Weight 7.5kg √ √

Additional information

Model

BMP-107B, BMP-107T
