R100 Remote Air Sampling Package is a high-performance active microbial monitoring system designed for critical cleanrooms, isolators, and pharmaceutical manufacturing environments.
$0.00
The AP USA R100 Remote Air Sampling Package is an advanced, high-reliability microbial monitoring solution engineered specifically for isolators, RABS (Restricted Access Barrier Systems), and aseptic cleanroom environments. Constructed with a heavy-duty 316 Stainless Steel enclosure, the R100 delivers exceptional chemical resistance and durability during routine decontamination cycles.
Equipped with the upgraded Version 2.00R Firmware, the R100 system expands data integrity capabilities with enhanced 21 CFR Part 11 compliance, incorporating system admin/user ID controls, audit capability, and secure run parameters. The unit features controlled sample flow rates of either 28.3 LPM or 100 LPM, paired with an integrated HEPA filter on the exhaust to prevent particulate contamination within controlled spaces.

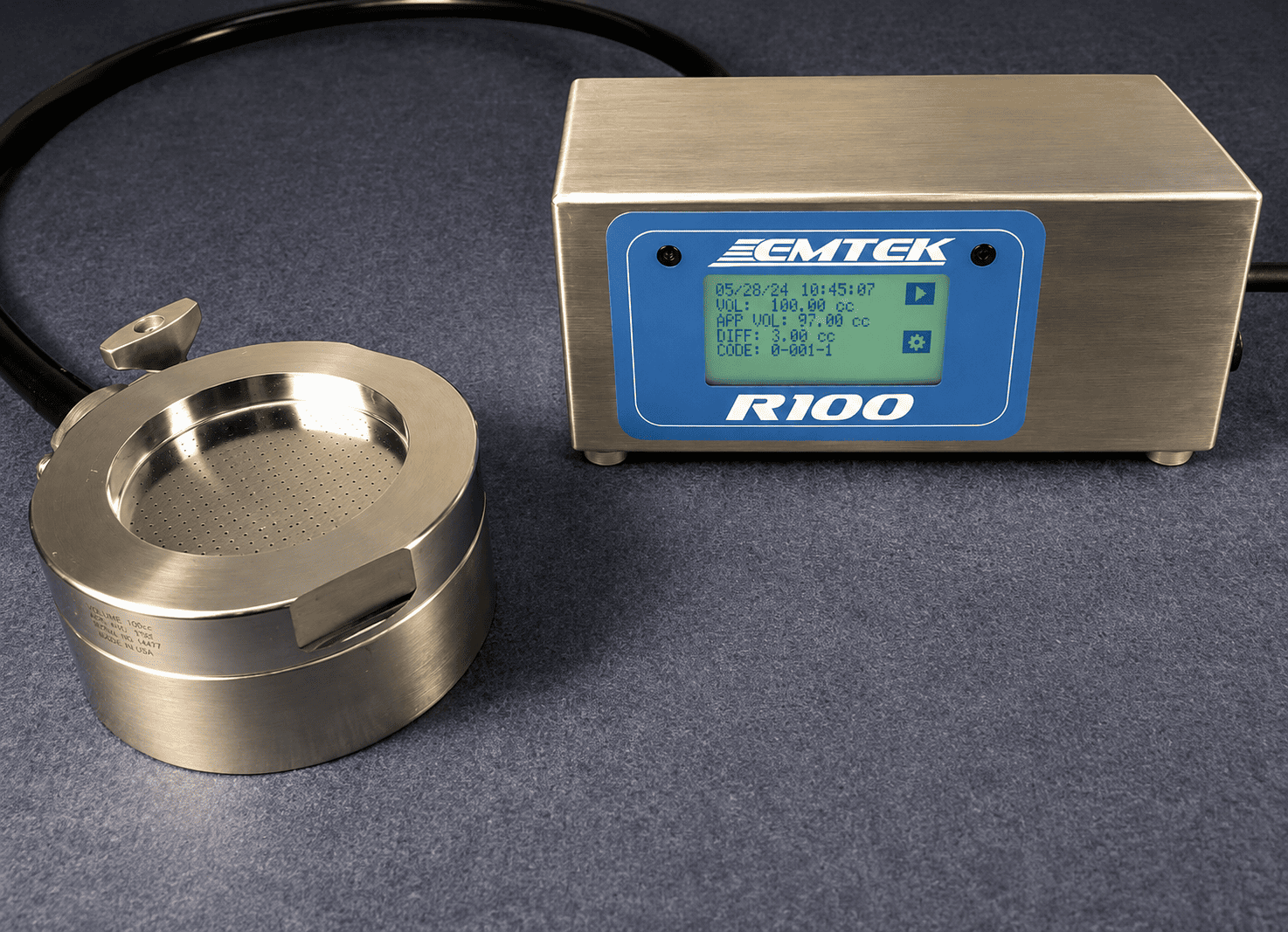

R100 Remote Air Sampler Controller: 316 Stainless Steel enclosure with LCD touchscreen interface.
Upgraded V2.00R Firmware: Enhanced 21 CFR Part 11 compliance for data security and tracking.
P100.RAS.SS Remote Air Sampler: Includes choice of 316SS inlet lid (28.3 LPM or 100 LPM).

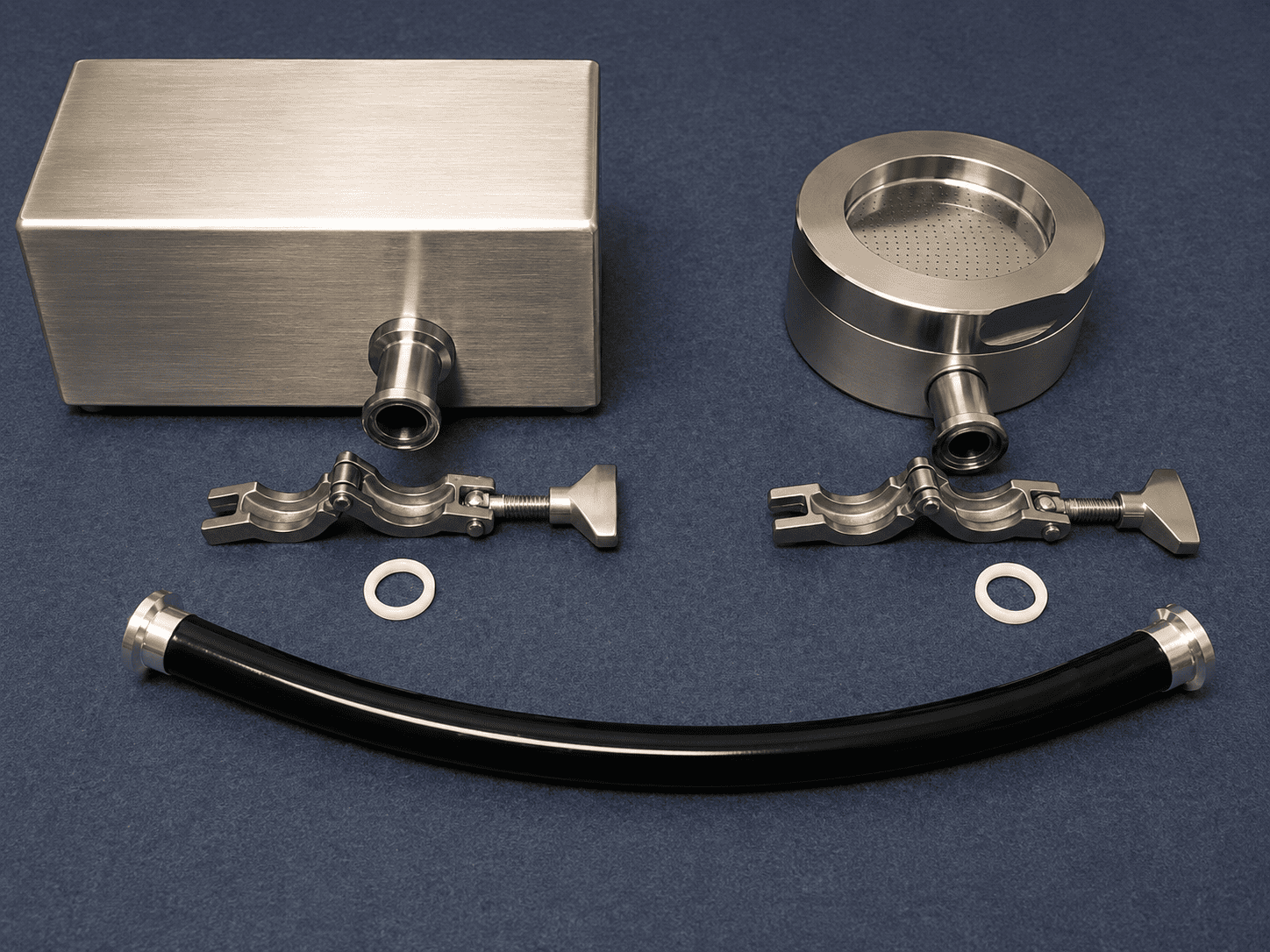

Sanitary Mounting Kit: Includes (2) Sanitary Clamps, (2) PTFE Seals, (2) Sanitary Tube Fittings, and 3 meters of 0.500″ ID silicone tubing.
Port & Plug Protective Set: USB, RJ45, Inlet/Outlet, and Vacuum Port Teflon plugs.
System Accessories: 5-channel IR Remote Control (Start/Pause/Resume/Stop), AC/DC Power Supply, USB drive with User Manuals, NIST-Traceable Calibration Certificate, and custom foam shipping box.
Warranty: Standard 2-year warranty included.
MODBUS Communications: Pre-configured mapping for seamless integration into customer Facility Monitoring Systems (FMS).
Comprehensive Data Export: Ethernet and USB ports support direct PC communication, data retrieval via USB, or output to an optional printer.
Sample Memory: Stores up to 500 complete sample runs with critical test parameters, site description entry, and user ID capture.
Flow Rates: Controlled 28.3 LPM or 100 LPM
Enclosure Material: 316 Stainless Steel (316SS)
Dimensions: 7.875″ x 3.625″ x 3.75″ (20 x 9.2 x 9.5 cm)
Weight: 3.75 lbs (1.7 kg)
Exhaust Filtration: HEPA filtered
Power Requirement: AC Power (AC/DC Adapter Included)
| Model | AP- R100.PACK.SS.28, AP- R100.PACK.SS.100 |
|---|
