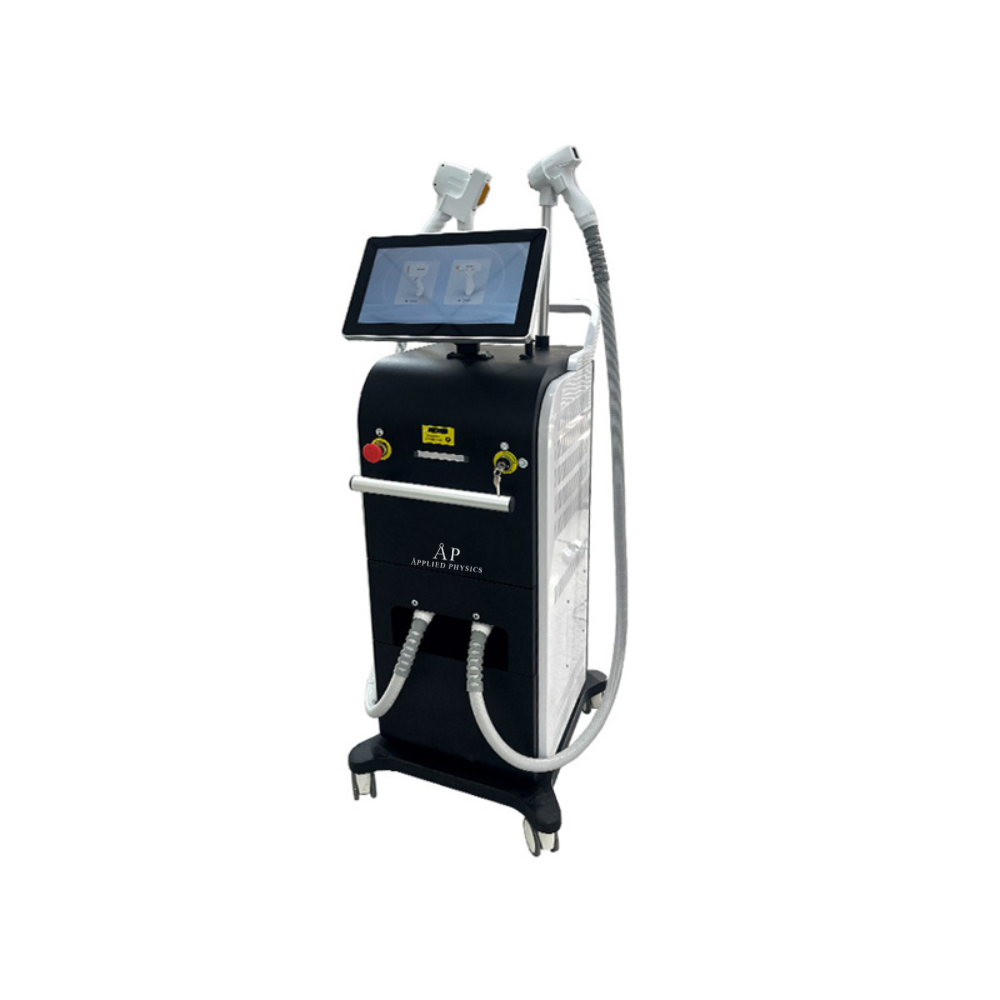

Semiconductor Laser Hair Removal Machine

Description

Semiconductor Laser Hair Removal Machine

Main Functions:

1. 14 inches touch screen.

2. Sapphire treatment head.

3. -20°C high efficiency refrigeration.

4. Semiconductor refrigeration system.

5. Energy accuracy up to 90%.

6. 24 hours working ability.

Technical Principle:

Pilotage-400 uses standard laser with a wavelength of 808nm~810nm.

The semiconductor laser emits near-infrared light waves, which can penetrate deep into the rootof the hair follicle, heat the pigment and spread throughout the hair follicle. It can not only accurately destroy the hair follicle, but also not cause damage to adjacent tissues, and permanently remove hair.

Advantages:

1. Sapphire treatment head, can cold the skin to 0~5°C, comfortable and painless.

2. Using well-known American brand palladium strips, with more than 100 million light releases.

3. TEC cooling system and intelligent temperature monitoring sensor. The instrument can be operated continuously for 24 hours.

4. Dual layer filter element, effective removal of water ions and impurities to protect the laser.

5. 14 inch HD touch screen, USB interface for easy remote online upgrade.

6. Intelligent operating software reduces human error, and the movement module is designed for easy maintenance.

Technical Parameters:

Model

Pilotage-400A

Pilotage-400B

Pilotage-400C

Wavelength

808nm±10nm(standard), (755nm, 755+808nm, 755+808+1064nm optional)

Laser Power

600W 1200W

600W

1200W

Spot Size

10*10mm; 10*25mm

10*10mm

10*25mm

Pulse Length

5~400ms

Energy Density

5~50J/cm²(Continuous adjustable)

Frequency

1~10Hz

Refrigeration Temperature

-20°C

Cooling Method

Closed internal circulating water cooling, semiconductor cooler cooling and air cooling

Power Supply

AC220V, 50/60Hz; AC110V, 50/60Hz(external transformer)

2000VA(2000W)

External Size(W*D*H)

480*560*1370mm

Net Weight

65kg

60kg

Package Size(W*D*H)

580*755*1260mm

Gross Weight

82kg

77kg
