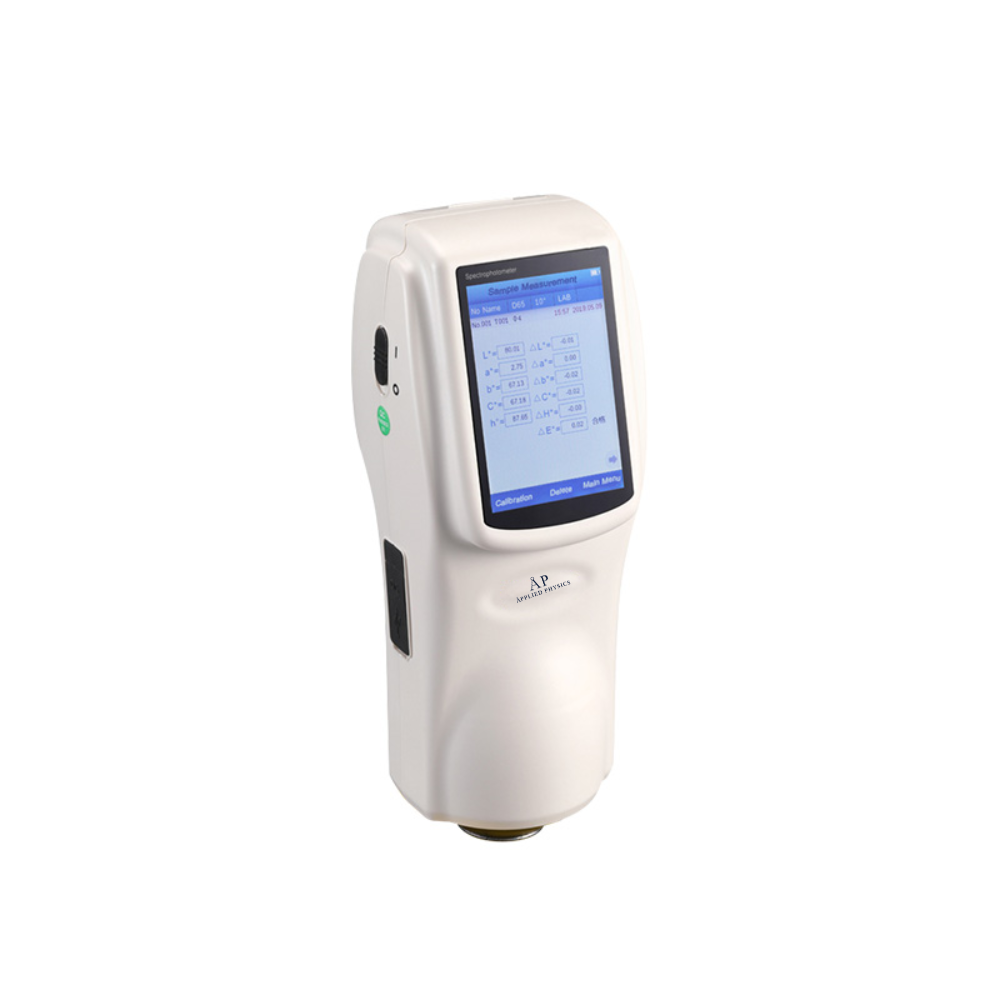

Spectrophotometric Colorimeter

Spectrophotometric Colorimeter Technical Parameters: Model BCM-810 Illumination/Observation System d/8(diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978 Integrating Sphere Size φ58mm Light Source Combined LED sources Sensor Silicon photodiode array Wavelength Range 400~700nm Wavelength Pitch 10nm Reflectance Range 0~200% Measuring Aperture φ8mm Color Space CIE LAB, XYZ, Yxy, LCh, CIE, LUV Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), metamerism index(Mt), color strength, color stain, color fastness, opacity Observer 2°/10° Illuminant D65, D50, A, C, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) Display Data Spectral value/Graph, Colorimetric value, Color difference value/Graph, Pass/Fail result, Color offset, Color simulation Measurement Time 1.5s Repeatability Spectral reflectance: Standard deviation within 0.1% Colorimetric value: Standard deviation within ΔE*ab 0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) Inter Instrument Agreement Within ΔE*ab 0.2(Average for 12 BCRA Series II color tiles) Battery Li-ion battery, 2800 times within 8 hours Lamp Life 5 years, more than 1.6 million measurements Display 3.5 inch TFT LCD, Capacitive touch screen Interface USB/RS-232 Data Memory 1000 standards, 15000 samples Ambient Temp. 0~40°C(32~104°F) Storage Temp. -20~50°C(-4~122°F) Standard Accessory Power adapter, Li-ion battery, operating instruction, PC software(Download from office website), data line, white and black calibration cavity, protective cover, wrist strap Optional Accessory Universal test components, micro printer, powder test box External Size(W*D*H) 90*77*230mm Package Size(W*D*H) 370*170*310mm Net Weight 600g Gross Weight 3kg Notes The specifications are subject to change without notice

Catalog relationship: Available Through Applied Physics
