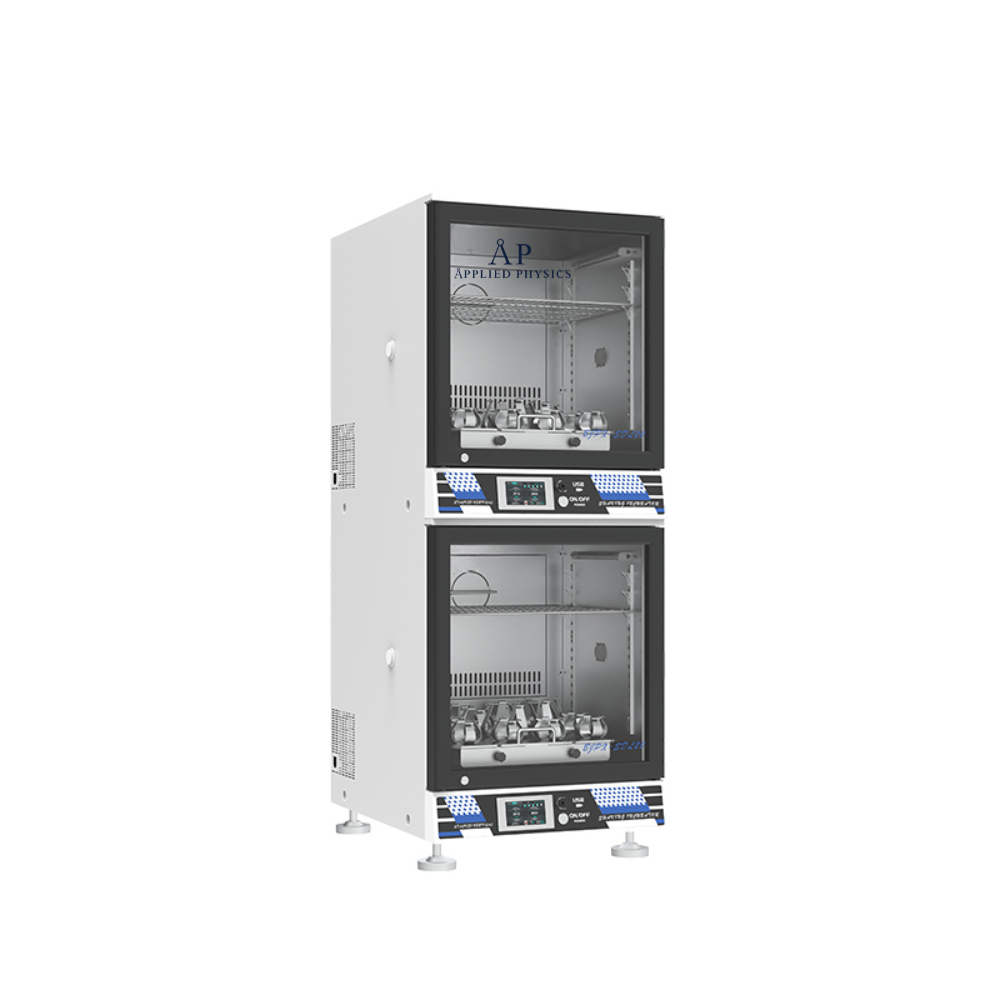

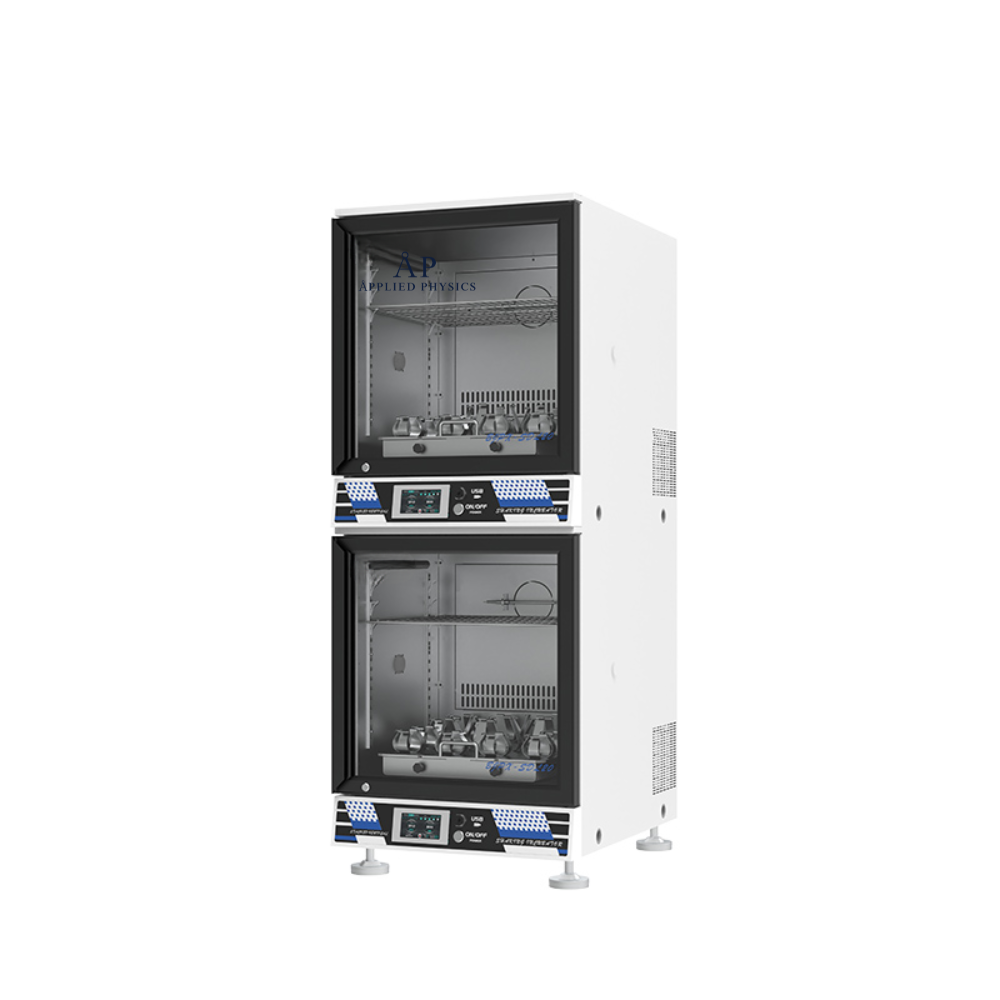

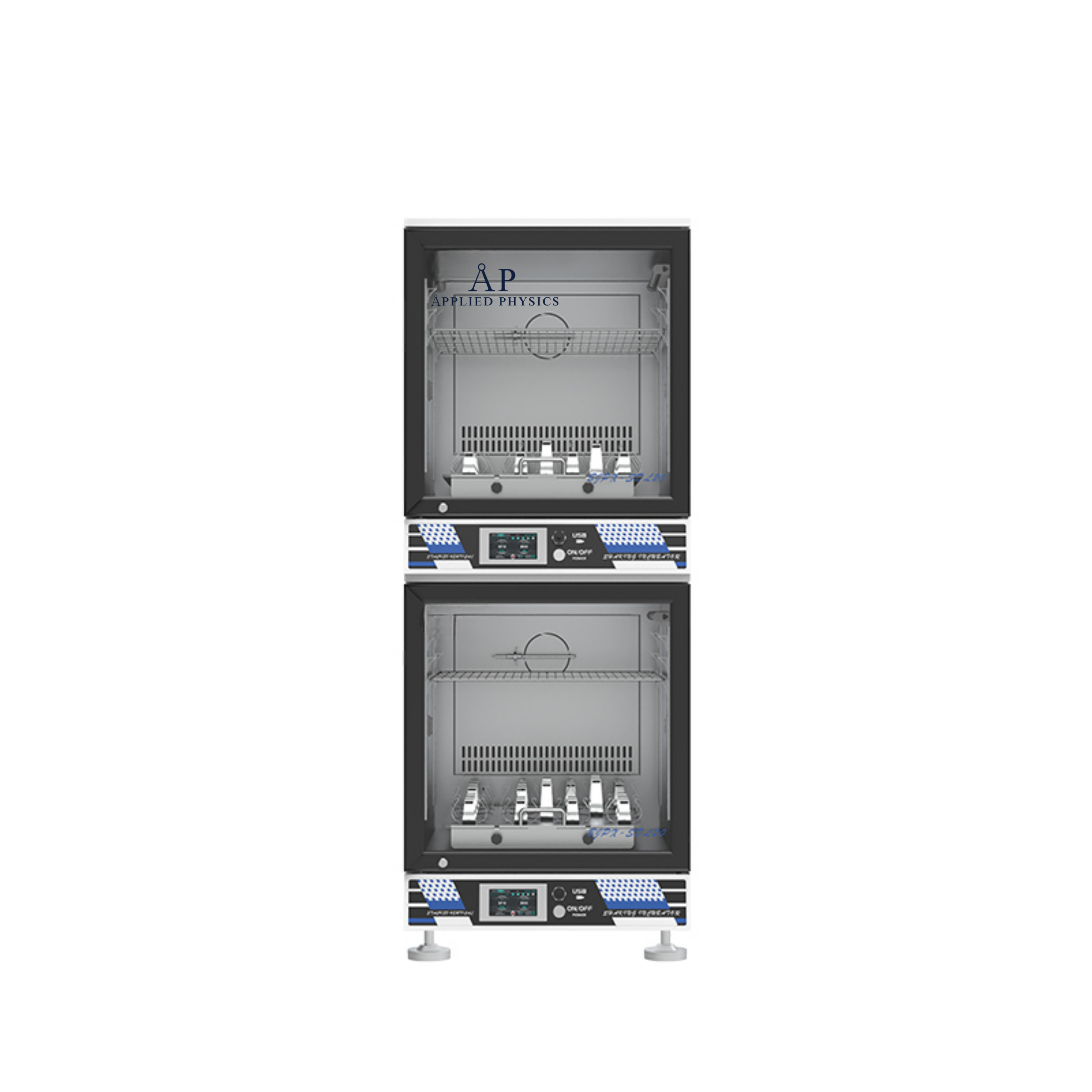

Stacked Large Capacity Shaking Incubator(BJPX-SDL)

Awaiting product image

Request a Quote

The Stacked Large Capacity Shaking Incubator is a high-performance device designed for large-scale cell culture, microbial fermentation, and other temperature-sensitive shaking applications. With its stacked design, this incubator maximizes space efficiency in laboratories while offering increased capacity for simultaneous experiments.

SKU AP-INC-SHK-STACK-SDL Categories ,

Description

Features: 1. Brushless DC motor, low noise, lasting operation. 2. 5 inch touch screen, clear and intuitive interface. 3. Run parameter encryption lock, parameter memory function. 4. With power failure recovery function. 5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply. 6. With USB data export function to achieve data traceability. 7. With ultraviolet disinfection function. 8. Standard equipped with LED light, open the door of the box light automatically open.   Technical Parameters:

ModelBJPX-SDL10BJPX-SDL20
Capacity155L
Temp. SensorPT100
Temp. RangeRT+5~60℃4~60℃
Temp. Fluctuation≤±0.5℃
Temp. Uniformity≤±1℃(37℃）
Temp. Precision0.1℃
Timing Range0~999min
ControllerPID
Display5-inch touch screen
Circulation ModeForced convection
Shaking ModeRotary shaking
Drive ModeSingle axis balanced drive type
Vibration RangeΦ26mm
Rotating Speed30~300r/min
Rotating Accuracy±1r/min
Shaking Plate Size460*450mm
Max. CapacitySingle Layer Shaker Plate250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1
Double Layer Shaker PlateUpper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower Layer: Universal spring clamp
Standard. Capacity500ml*14(Single layer)
Lighting ModeLED lamp*1
Sterilization ModeUV lamp*1
Refrigerant/R290
Ambient Temp.15~35℃
Internal Material304 stainless steel
External MaterialCold rolled steel sheet
Safety FunctionHigh/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm
Consumption1200W1800W
Power SupplyAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)560*500*555mm(Per unit)
External Size(W*D*H)650*840*810mm(Per unit)
Package Size(W*D*H)775*1005*1070mm(Per unit)
Net Weight195kg(Per unit)215kg(Per unit)
Gross Weight225kg(Per unit)245kg(Per unit)

Product relationship

Available Through Applied Physics

Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.

Applied Physics portfolio: Cleanroom

Catalog relationship: Available Through Applied Physics

Related Applied Physics resources

Continue through the Cleanroom portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Cleanroom Validation →
Cleanroom Foggers →

Additional information

Model

BJPX-SDL10, BJPX-SDL20
