Description

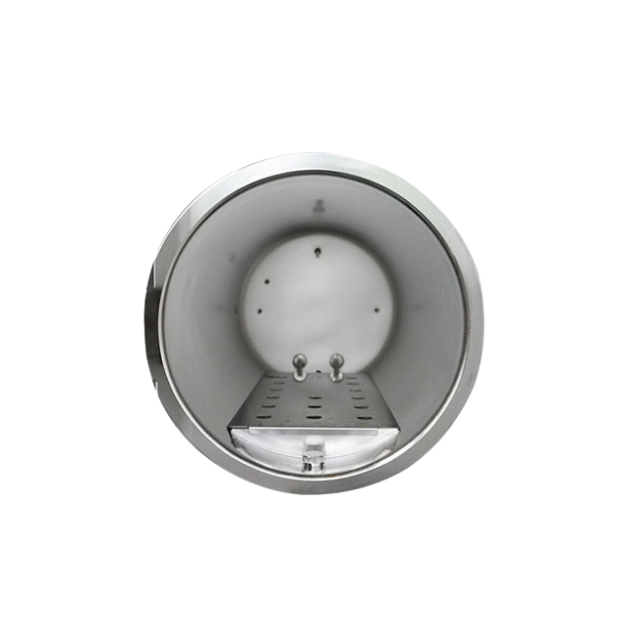

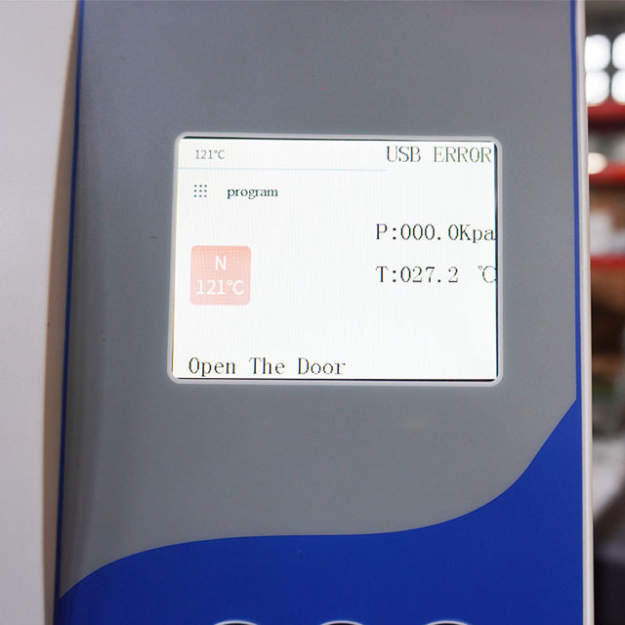

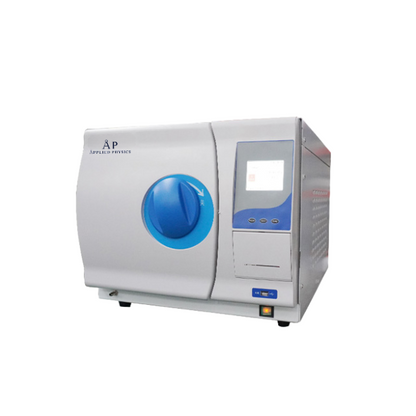

Features: 1. High-quality material: the sterilization chamber is made of high-quality S30408 stainless steel electropolished. 2. Steam generation method: the main body is heated, no external steam source is required. 3. Operation interface: 3.5-inch capacitive color display screen is used to display pressure, temperature, time, alarm code and other information in real time, which is convenient for users to observe. When the sterilization cycle is over, a buzzer will sound. 4. Sterilization record: standard USB interface, optional printer, record program data. 5. New storage rack: increase the utilization space of the sterilization chamber, and the selection space for sterilization load is larger. 6. Control system: controlled by single chip microcomputer, automatic control of heating, sterilization and exhaust, without too much manual operation. 7. One-key start on the operation panel, using mechanical keys, the number of actions≥100,000 times. 8. Two sterilization procedures at 121°C and 134°C are selectable.
Safety Protection: Over-temperature automatic protection, heating tube anti-dry protection, safety interlock device, double over-voltage protection, over-current leakage safety protection, door detection protection. Technical Parameters:
| Model | BKM-K18N | BKM-K23N | |
| Capacity | 18L | 23L | |
| Door | Manual | ||
| Display | 3.5-inch LCD | ||
| Max Designed Pressure | 0.28Mpa | ||
| Working Pressure | 0.23Mpa | ||
| Max Designed Temp. | 150℃ | ||
| Working Temp. | 121/134℃ | ||
| Temp. Precision | 0.1℃ | ||
| Chamber Material | S30408 | ||
| Chamber Size | φ250*350mm | φ250*450mm | |
| Altitude | ≤2500m | ||

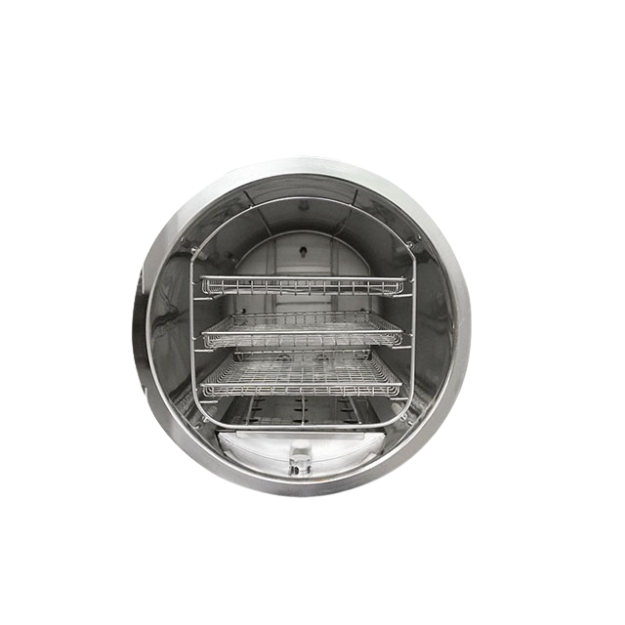

| Rack | 1 rack with 3 trays | ||
| Standard Accessories | Aluminum tray, USB port | ||
| Optional Accessories | Stainless steel tray, printer | ||
| Consumption | 1.6KW | ||
| Power Supply | AC220V, 50/60Hz(Standard) AC110V, 50/60Hz(Optional) | ||
| External Size(W*D*H) | 650*495*410mm | 700*495*410mm | |
| Net Weight | 32kg | 36kg | |
| Package Size(W*D*H) | 810*610*590mm | ||
| Gross Weight | 47kg | 50kg | |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Autoclave quote checklist
Confirm load type, wrapped/unwrapped or porous items, liquids if applicable, chamber capacity, cycle objective, available utilities, installation space and required cycle records or validation documentation.
