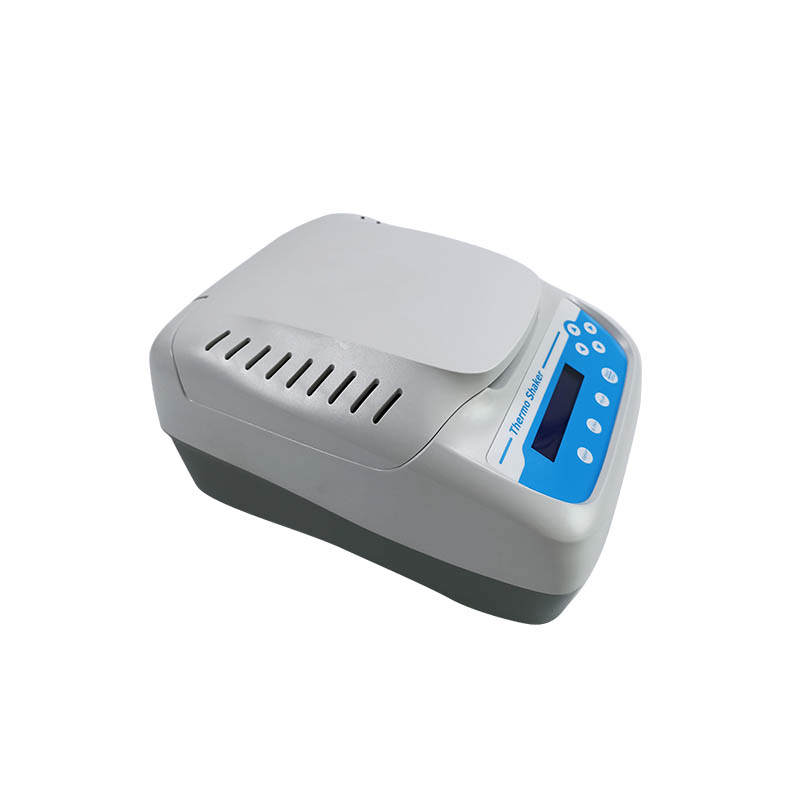

Description
Features: 1. LCD display. It is easy to setup and use. 2. Accurate temperature control, high stability. 3. Heating lid independent temperature control function can effectively prevent sample evaporation and cross-infection. 4. Built-in fan reduces sample cooling time. 5. Optional blocks are available for common laboratory tubes and plates. Custom blocks are also available upon request. 6. Brushless DC Motor: noiseless long service life maintenance-free. 7. Automatic preheating function. 8. Auto resume to run after power failure. 9. Automatic running function. 10. Shorten mixing function. 11. Built-in temperature calibration function. 12. Built-in over-heating protection device, safe and reliable. Technical Parameters:
| Model | BK-MSP1000 |
| Temp. Setting Range | 0℃~105℃ |
| Temp. Control Range | RT. +5℃~105℃ |
| Time Range | 1sec~99min59sec/1min~99h59min/∞ |
| Temp Accuracy | ≤±0.3℃ |
| Display Accuracy | 0.1℃ |
| Temp Uniformity | ≤±0.3℃ |
| Speed Range | 200~3000rpm |
| Orbit | 2mm |
| Heating Time | ≤10min(from 25℃ to 100℃) |
| Fan Cooling Time | ≤12min(from 100℃ to 37℃) |
| Heating Lid Temp. Setting Range | OFF/AUTO/0℃~110℃ |
| Heating Lid Temp. Control Range | RT. +5℃~110℃ |
| Heating Lid Heating Time | ≤10min(from 25℃ to 110℃) |
| Heating Lid Independent Temp. Control Function | Yes |
| Auto Fan Function | Yes |
| Program Number | 10 programs (S0~S9) |
| Multi Point Running | Yes (Max 5 points) |
| Multi Cycle | Yes (Max 99 times) |
| Auto Heating | Yes |
| Auto Constant Temperature at the End of Run | Yes |
| Heating Lid Mode | Automatic/Manual |
| Auto Running | Yes |
| Auto Resume to Run | Yes |
| Delay Timing Function | Yes |
| Standard Accessories | MD30/ MD31/ MD32/ MD33/MD34(Choose any one of them) |
| Consumption | 335W |
| Power Supply | AC220, 50/60Hz; AC110, 50/60Hz |
| External Size (W*D*H) | 296*212*164mm |
| Net Weight | 6.6kg |
| Packing Size (W*D*H) | 410*350*240mm |
| Gross Weight | 8kg |
Optional Blocks:
| Type | Capacity | Max. Speed |
| MD30 | 96*0.2ml PCR Plate | 2500rpm |
| MD31 | 54*0.5ml centrifuge tube | 2500rpm |
| MD32 | 35*1.5ml centrifuge tube | 2500rpm |
| MD33 | 35*2.0ml centrifuge tube | 2500rpm |
| MD34 | 20*1.5ml + 15*0.5ml | 2500rpm |
| Without Block | Elisa plate/Deep-well plate/ Tissue culture plate | 3000rpm |
