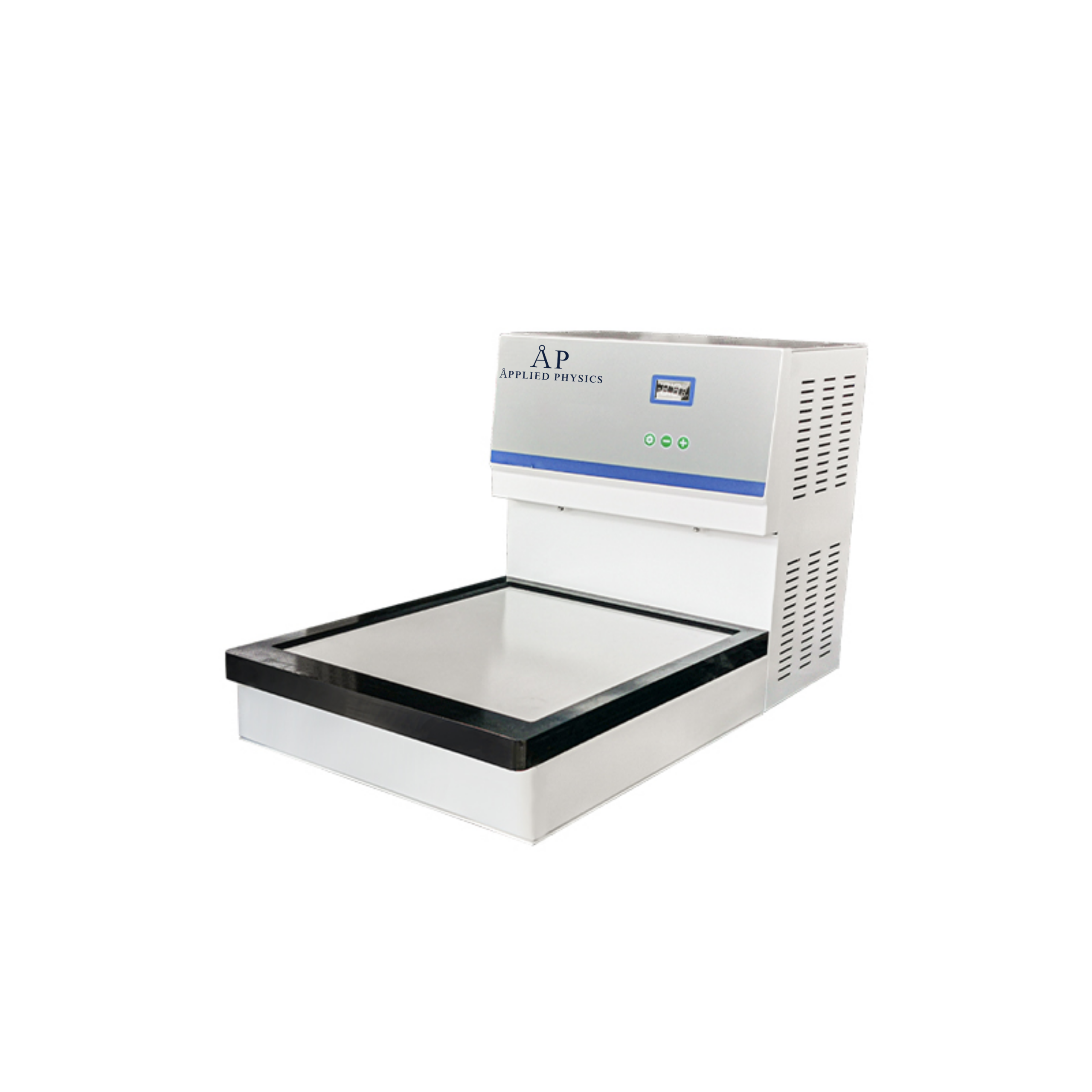

Tissue Cooling Center

Request a Quote

Tissue embedding center is a kind of equipment used in biomedical laboratories, mainly used for tissue sample embedding process. Embedding is an important step in histology and pathology to fix a biological tissue sample in a suitable medium for subsequent sectioning and microscopic observation.

SKU: AP-PATH-COOL-GEN Categories: Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Description

Features:

1. Environmentally friendly fluorine-free refrigerant is selected, with low noise and fast cooling effect.

2. The temperature control adopts a single-chip microprocessor controller, and the temperature setting is simple.

3. With temperature control mode and super cooling mode, high temperature control accuracy.

4. The cooling temperature can be adjusted to achieve the ideal cooling effect.

Technical Parameters:

Model BK-CPIV
Temperature Control Range 5 to -20℃(Max to -28℃)
Control Temperature Precision ±3℃
Working Area Size 360*300mm
Number of Embedding Cassettes 90pcs
Power 300W
Power Supply AC220V,50/60Hz(Standard);

AC110V, 60Hz(Optional)

External Size(W*D*H) 350*630*400mm
Net Weight 23kg
Packing Size(W*D*H) 500*800*590mm
Gross Weight 43kg
