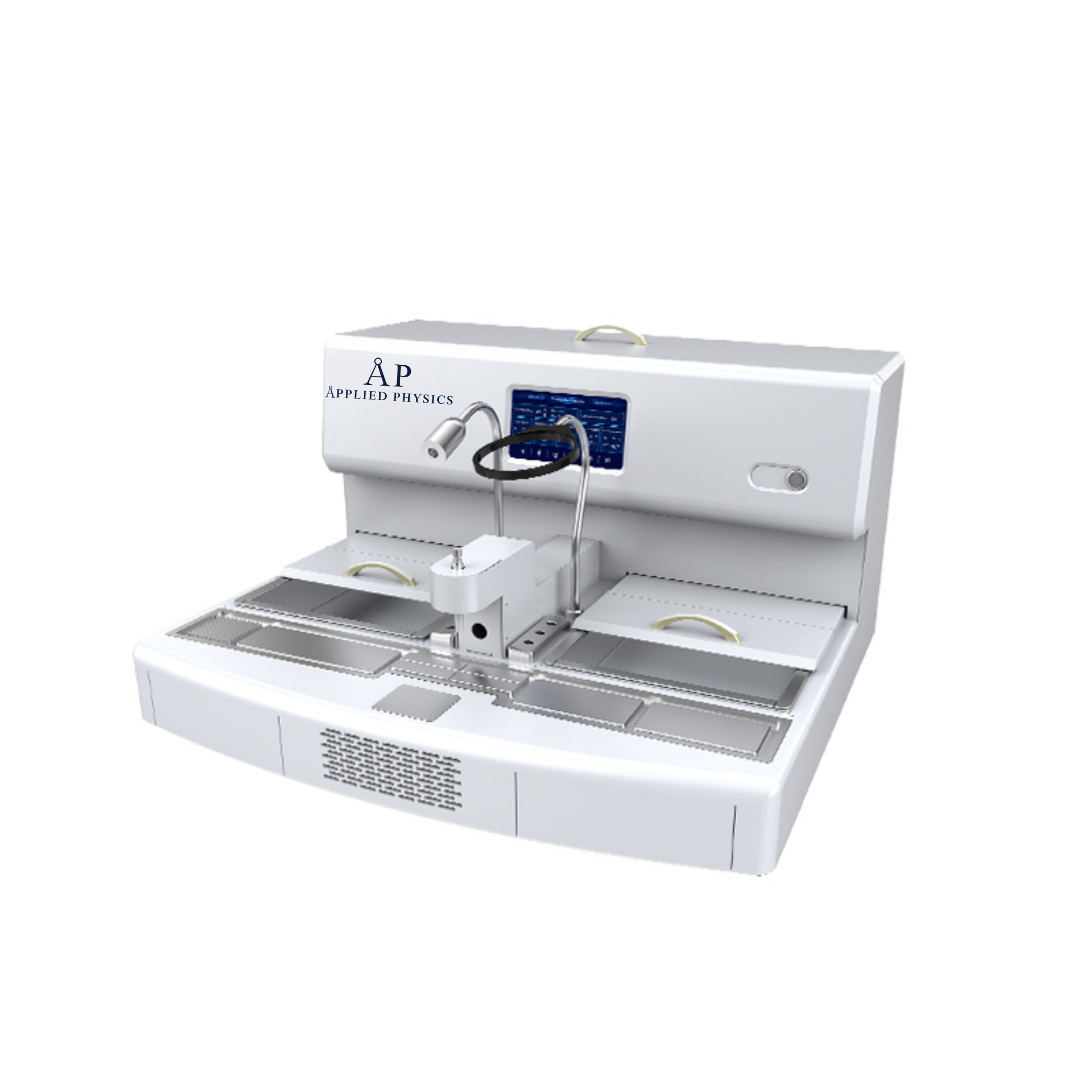

Tissue Embedding Center BK-TEV

Request a Quote

Tissue embedding machine ‌ is a kind of equipment used in biomedical laboratories, mainly used for tissue sample embedding process. Embedding is an important step in histology and pathology to fix a biological tissue sample in a suitable medium for subsequent sectioning and microscopic observation.

SKU: AP-PATH-EMB-TEV Categories: Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Description

Features:

1. Fully automatic program control; power-on can be preset for any day within a week.

2. Temperature controlled by a single-chip microprocessor for simple and convenient setting.

3. Equipped with new heating elements for fast heating, uniform temperature distribution, energy efficiency and reliability.

4. Fitted with a flexible metal hose magnifier, ideal for manipulating tiny specimen tissues.

5. 7-inch HD touch screen for easy, intuitive operation and clear, accurate display.

Technical Parameters:

Model BK-TEV
Thermal Temperature Range RT~80℃
Control Temperature Precision ±3℃
Timing Range 0~24h
Paraffin Chamber Size 650*130*97mm
Thermal Storage Size 240*240*57mm, two pcs
Working Area Size 700*93mm
Pre-Cooling Table Size 69*59mm
Power ≤1400W
Power Supply AC220V,50/60Hz(Standard);

AC110V, 60Hz(Optional)

External Size(W*D*H) 735*693*413mm
Net Weight 45kg
Packing Size(W*D*H) 880*850*650mm
Gross Weight 72kg
