Trinocular head Inverted microscope equipped with full series of objectives that covers most applications. The head implements an extremely innovative design, that permits adjustments to compensate for operator height. Every control is easy to reach and each component has been designed with ease of use in mind. The focusing and specimen translation controls are designed to allow the user to rest wrists on the table. The light intensity regulation is placed very close to the focusing knobs.
$0.00

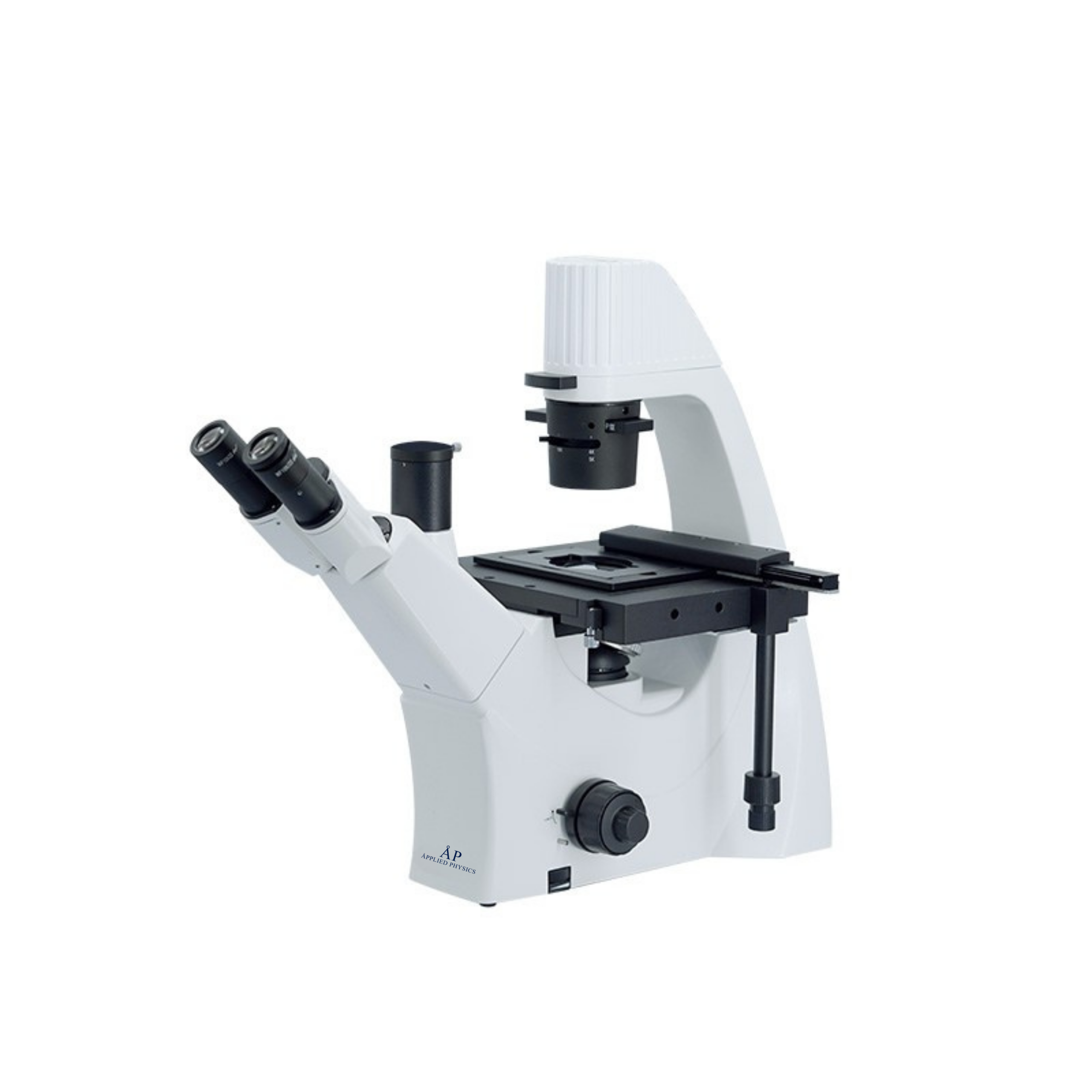

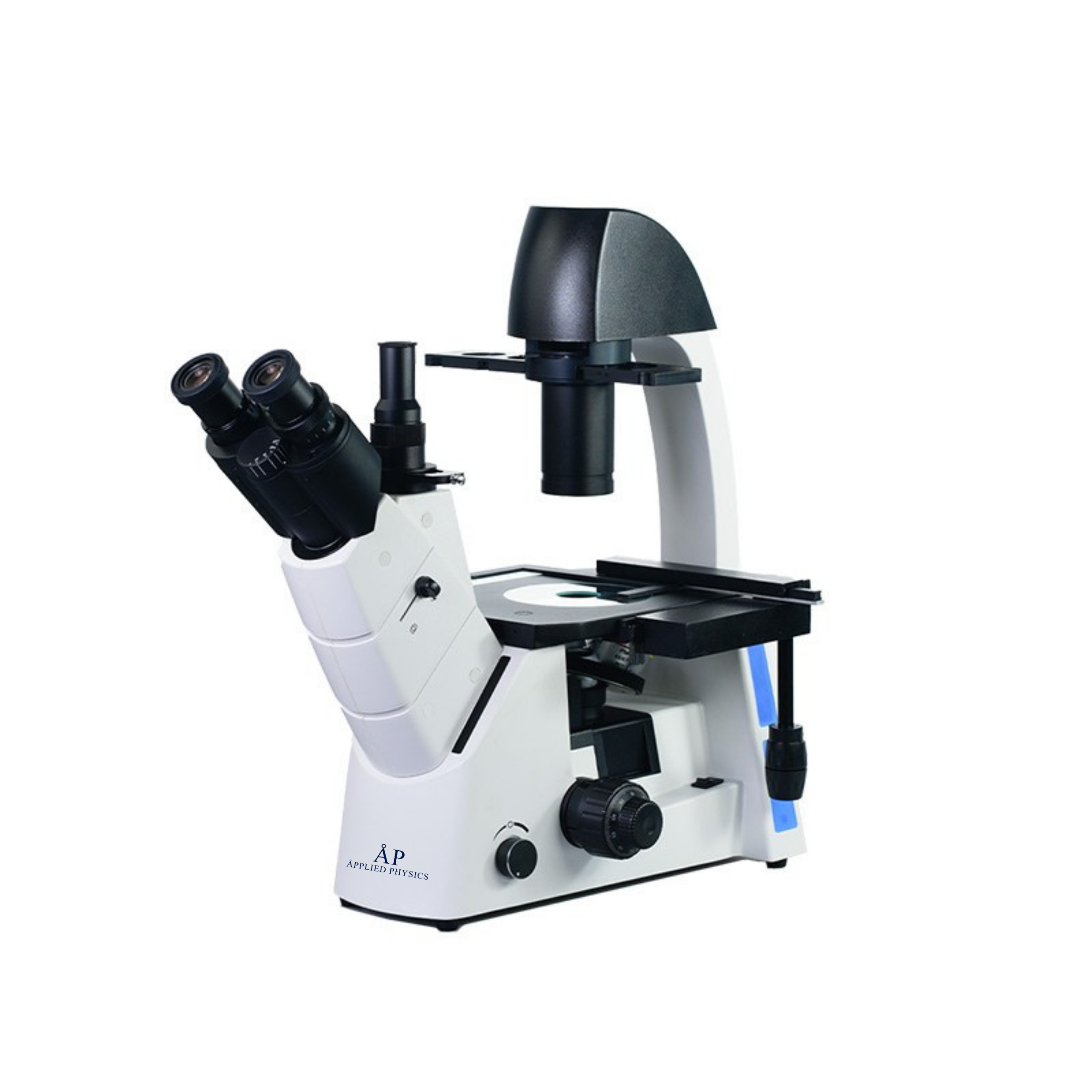

Trinocular Inverted Microscope BMI-37XC BMI-37XE
Technical Parameters:
Model
BMI-37XC
BMI-37XE
Optical System
Infinite optical system
View Head
Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 48~75mm
Eyepiece
WF10X/22mm, P16X/20mm
P10X/20mm
Objective
Infinite LWD Plan Achromatic Objective
4X N.A=0.10 WD=25.00mm
40X N.A=0.60 WD=3.30mm
10X N.A=0.25 WD=4.27mm
20X N.A=0.40 WD=8.00mm
40X N.A=0.60 WD=3.50mm
Infinite LWD
Plan Phase Objective
Contrast Objective
10X N.A=0.25 WD=8.10mm
20X N.A=0.40 WD=4.80mm
40X(Optional)
10X N.A=0.25 WD=4.27mm
20X N.A=0.40 WD=8.00mm(Optional)
40X N.A=0.60 WD=3.50mm(Optional)
Focusing
Coaxial coarse&fine adjustable system, pinion and rack adjustable, fine division 0.002mm
Stage
242*172mm, glass slide ø110mm, moving range 120*75mm
Culture dish plate 1: 86*129.5mm, Ф87.5mm round culture dish is adaptive
Culture dish plate 2: 34*77.5mm, Ф68.5mm round culture dish is adaptive
Culture dish plate 3: 57*82mm, Ф60mm round culture dish is adaptive
Condenser
ELWD condenser with iris diaphragm＆filter, LWD 75mm
Illumination
Halogen lamp 12V/30W, brightness adjustable
LED lamp, 9W, brightness adjustable
Power Supply
AC85~240V, 50/60Hz
Package Size
655*305*630mm
650*430*600mm
Gross Weight
14kg
16kg
| Model | BMI-37XC, BMI-37XE |
|---|
