Description

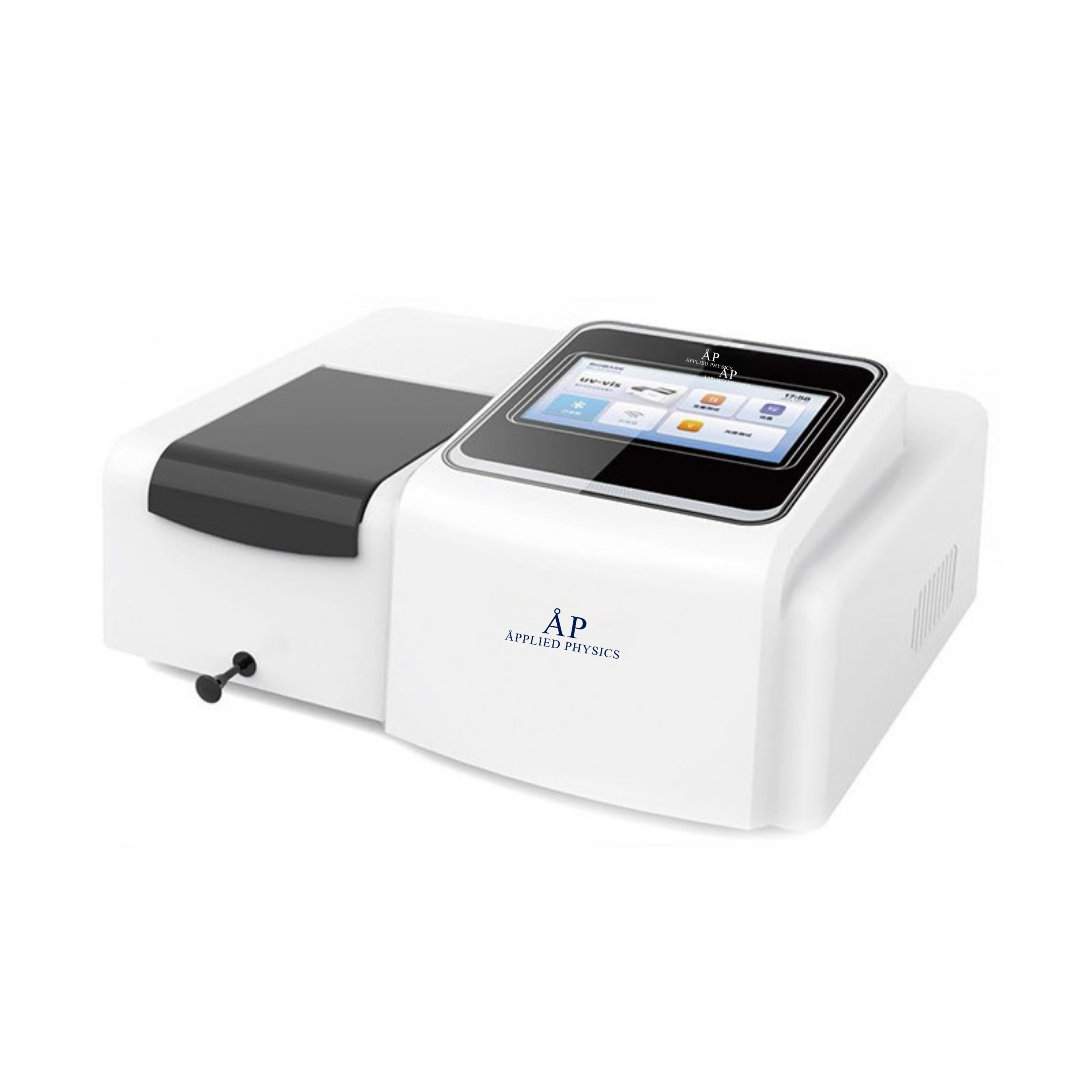

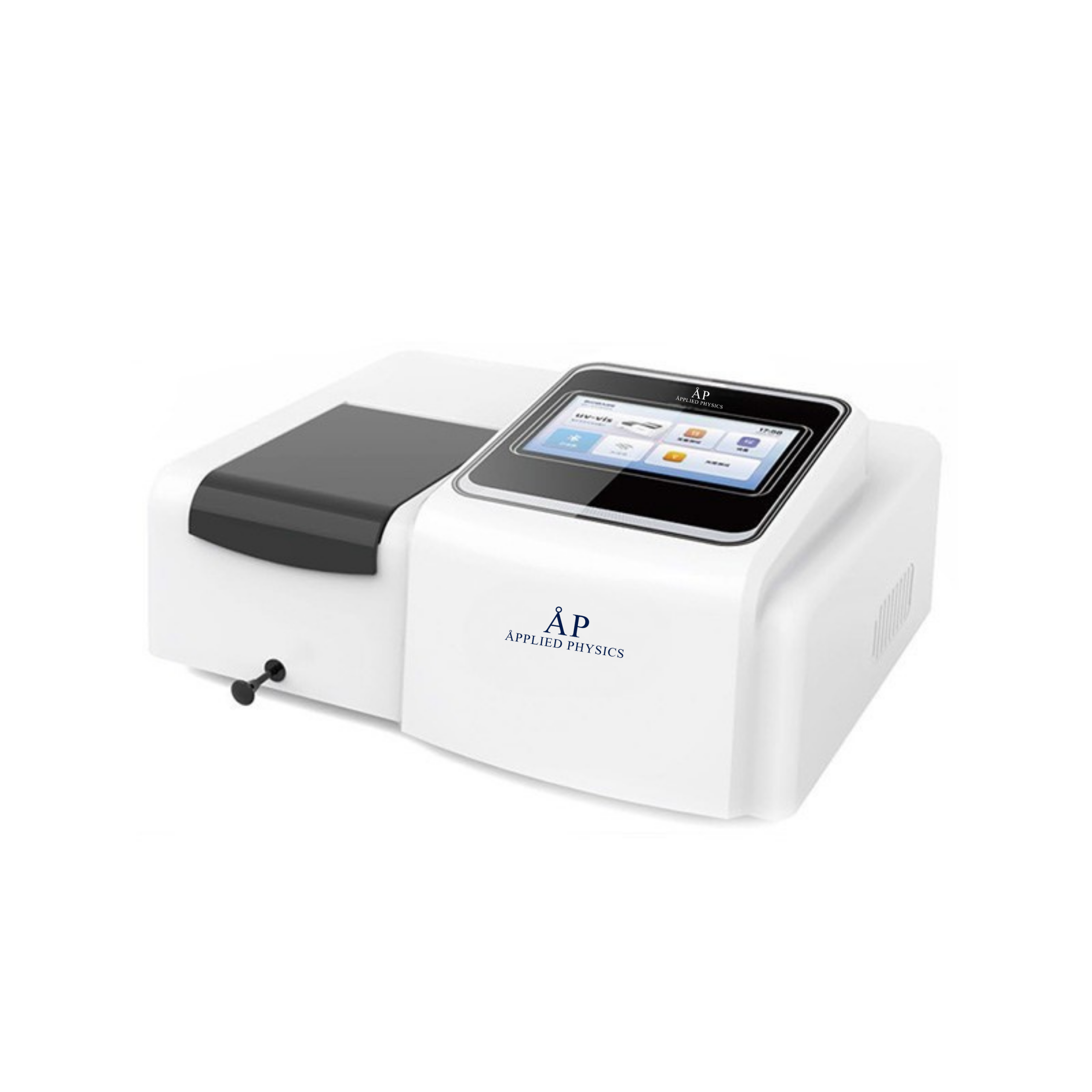

UV/VIS Spectrophotometer BK-UV1600G BK-V1600G Features: 1. 1200L/mm grating. 2. Imported long life deuterium lamp, tungsten lamp. 3. 7-inch LCD display. 4. Wide capacity voltage. 5. Power-on self-test. 6. High sensitivity photoconverter. Technical Parameters: Model BK-UV1600G BK-V1600G Optical System Single beam, grating 1200L/mm Wavelength 190~1100nm 325~1100nm Spectral Bandwidth 4nm Wavelength Accuracy ±1.5nm Wavelength Repeatability ≤0.2nm Photometric Accuracy +0.002Abs(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.4%T(0~100%T) Photometric Repeatability 0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), <0.2%T(0~100%T) Stray Light ≤0.05%T(220nm, 360nm) Stability ±0.001A/h(500nm) Photometric Range -0.301~3.0A 0~200%T 0~9999C Photometric Mode A T C E Wavelength Setting Automatic Output RS232 printer data output, USB-A connection, wireless printing, mobile phone PC connection Detector Imported silicon photodiode Light Source Deuterium lamp, tungsten lamp Tungsten lamp Standard Accessories 4*glass cuvette, 2*quartz cuvette 4*glass cuvette Power Supply 100~220V, 50/60Hz External Size 466*365*200mm Net Weight 11.25kg Packing Size 590*480*315mm Gross Weight 15.4kg 15kg
