Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
$0.00
Technical Parameters:

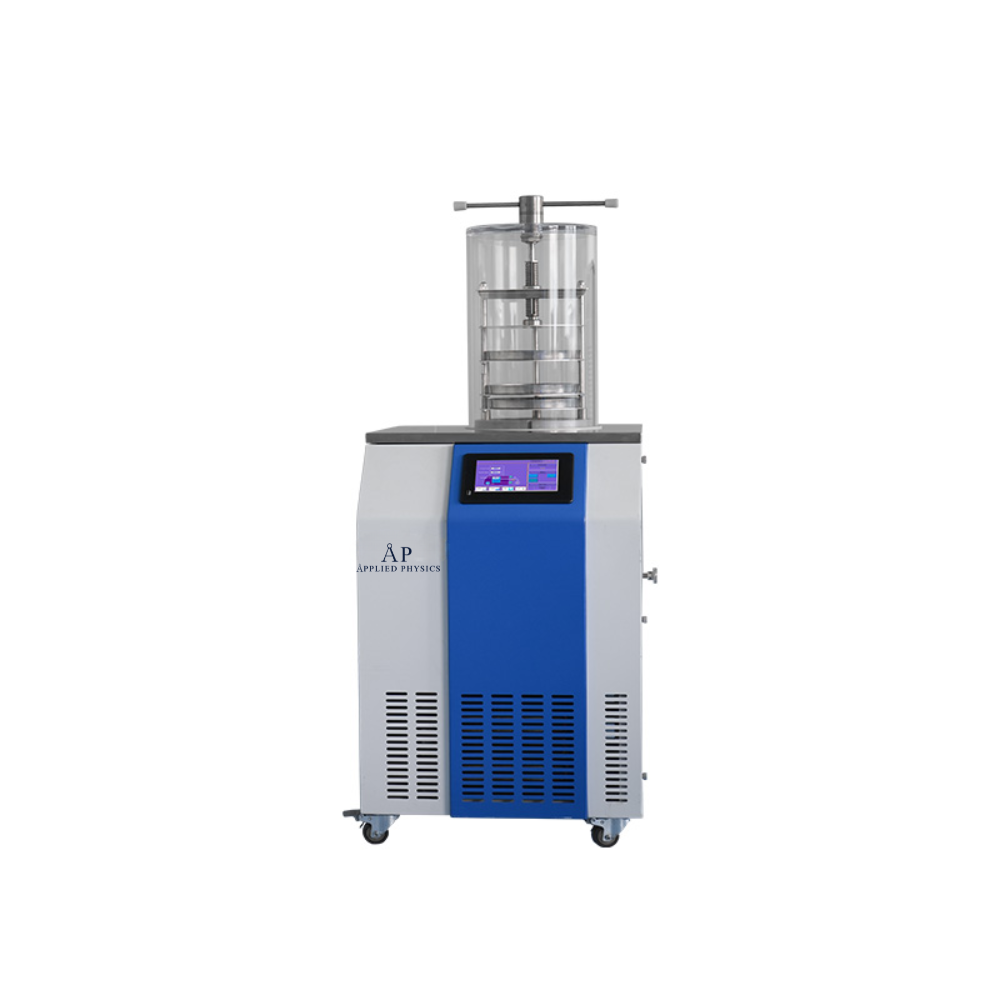

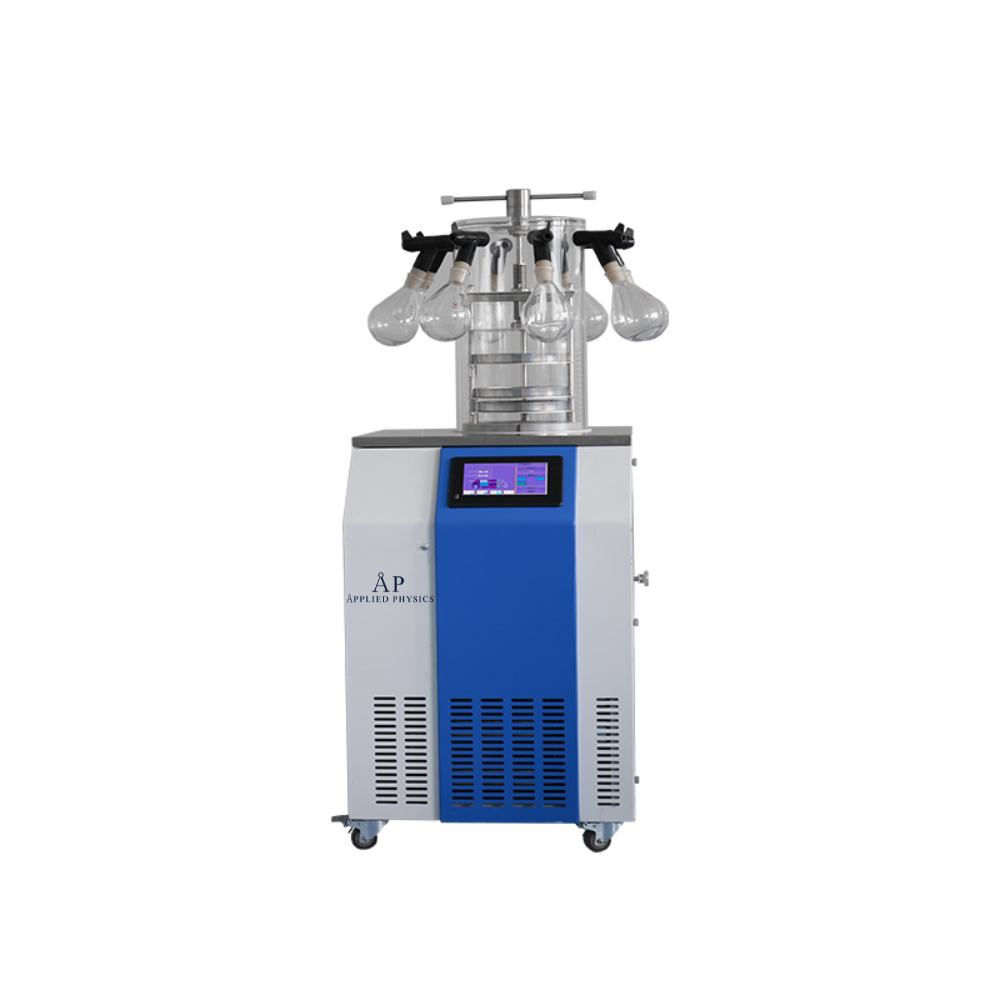

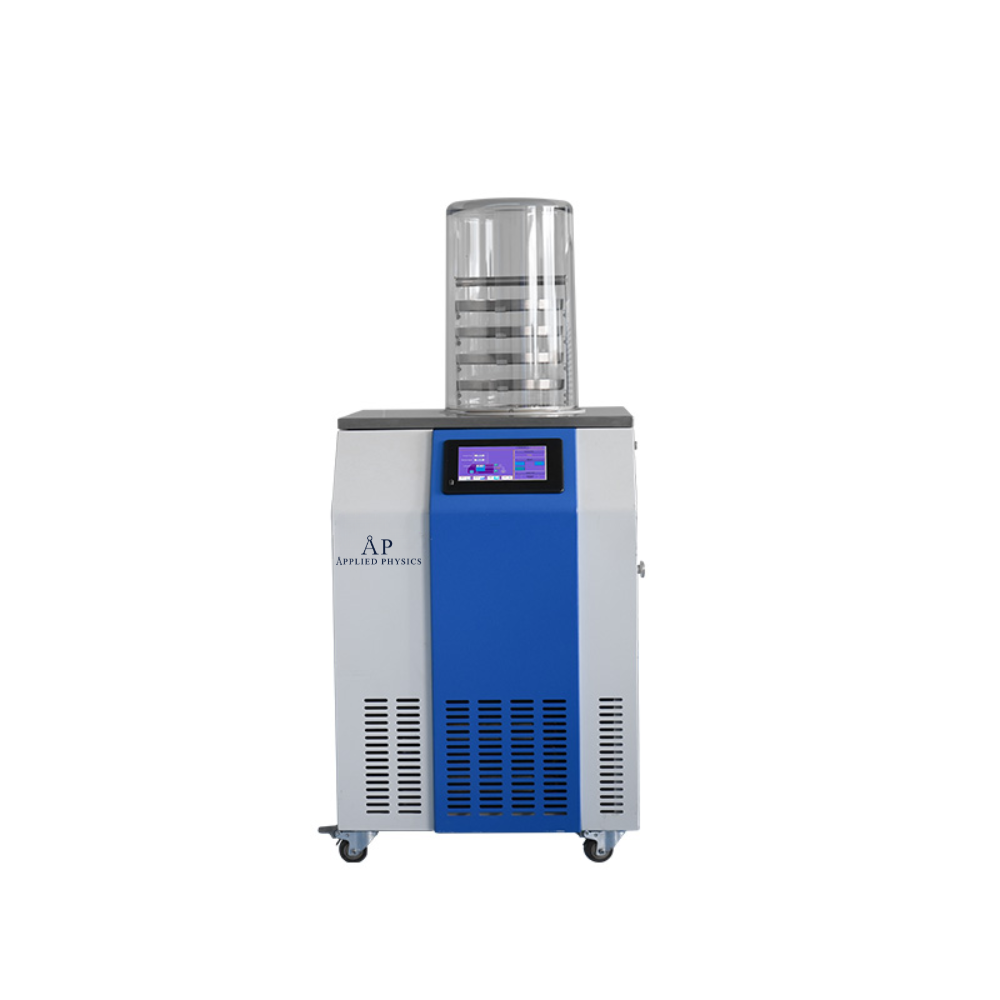

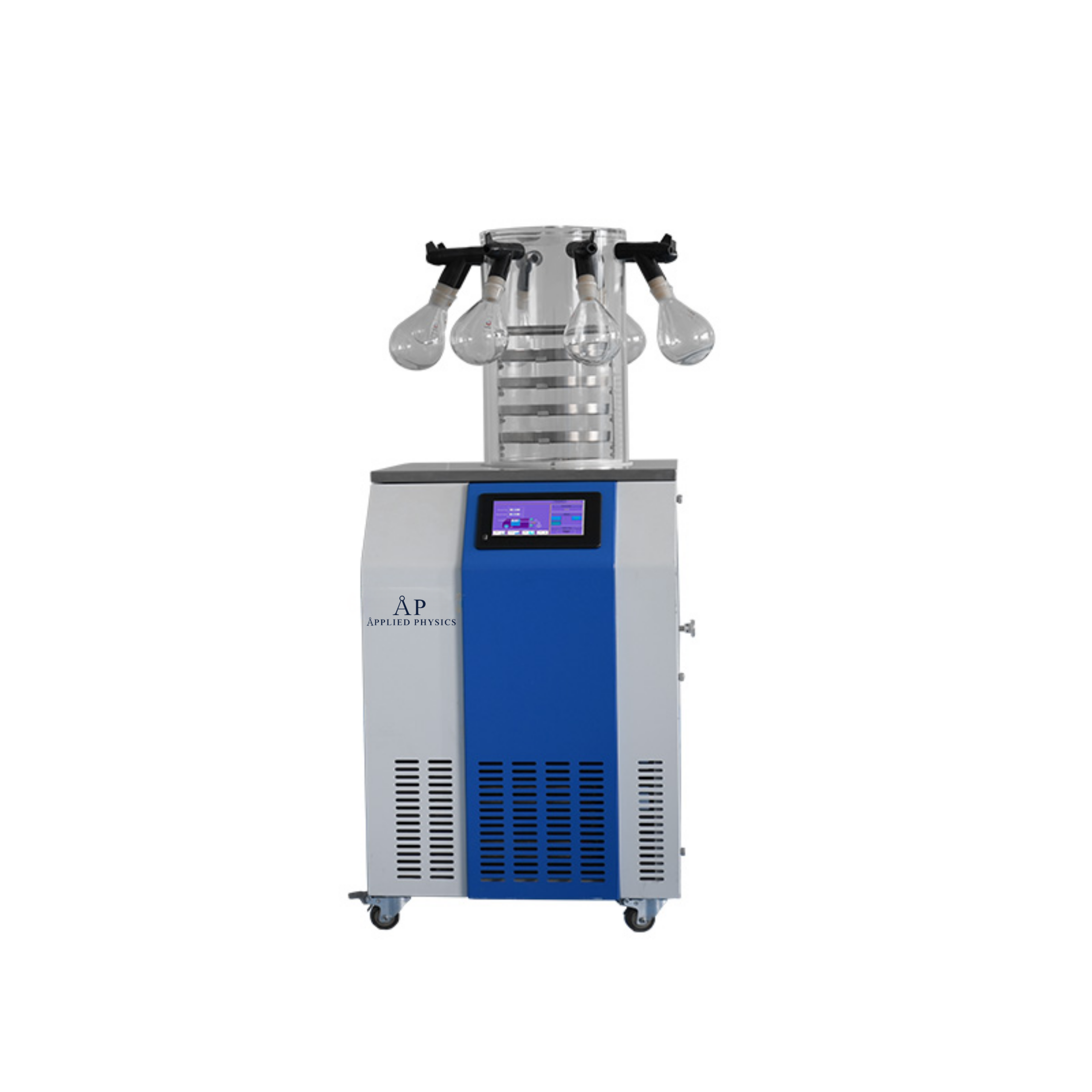

| Model | BK-FD18S | BK-FD18P | BK-FD18T | BK-FD18PT | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering
chamber with8 port manifold |
|
| Freeze Drying Area | 0.18㎡(Standard)
0.27㎡(Optional) |
0.09㎡ | |||
| Tray | 4pcs(Standard)
6pcs(Optional) |
3pcs | |||
| Height Between Trays | 75mm | / | |||
| Cold Trap Temperature | ≤-60℃(No load)(-80℃, -110℃optional) | ||||
| Cold Trap Capacity | 28L | ||||
| Cold Trap Size(Diameter*H) | Φ300*410mm | ||||
| Vacuum Degree | ≤5Pa | ||||
| Water Capture Capacity | 6L/24h | ||||
| Tray Size(D*H) | Φ240*20mm | Φ200*20mm | |||
| Freeze Drying Time | 24~36h | ||||
| Suggested Loading
Capacity (Liquid) |
1.8L(Standard)
2.7L(Optional) |
0.9L | |||
| Total Loading Capacity(Liquid) | 3.6L(Standard)
5.4L(Optional) |
1.8L | |||
| Drying Chamber Size(Diameter*H) | Φ300*465mm | ||||
| Total Qty. of Vial Φ22 | 244(Standard)
366(Optional) |
183 | |||
| Total Qty. of Vial Φ16 | 460(Standard)
690(Optional) |
345 | |||
| Total Qty. of Vial Φ12 | 820(Standard)
1230(Optional) |
615 | |||
| Refrigerant | -60℃: R600a, R23
-80℃: R404a, R23 |
||||
| Cooling System | Standard: Air cooling
Optional: Water cooling |
||||
| Power Supply | Standard: 220V, 50Hz
Optional: 220V, 60Hz, 110V, 60Hz |
||||
| Power Consumption | 1800W | ||||
| Standard Accessory | Vacuum pump 4L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)
Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs(only for model BK-FD18P/PT), USB port |
||||
| Optional Function&Accessory | Vacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models)
600ml/1200ml wide-mouth flask(for BK-FD18P/PT) Tray*2(for BK-FD10S/P) |
||||
| External Size(W*D*H) | 545*686*938mm | ||||
| Package Size(W*D*H) | Main Body | 835*680*1230mm | |||
| Accessory | 725*665*705mm | ||||
| Gross Weight | Main Body | -60℃: 118kg
-80℃: 136kg |
|||
| Accessory | 52kg | 54kg | 60kg | 62kg | |
| Model | BK-FD18S, BK-FD18P, BK-FD18T, BK-FD18PT |
|---|
