Application:
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
$0.00

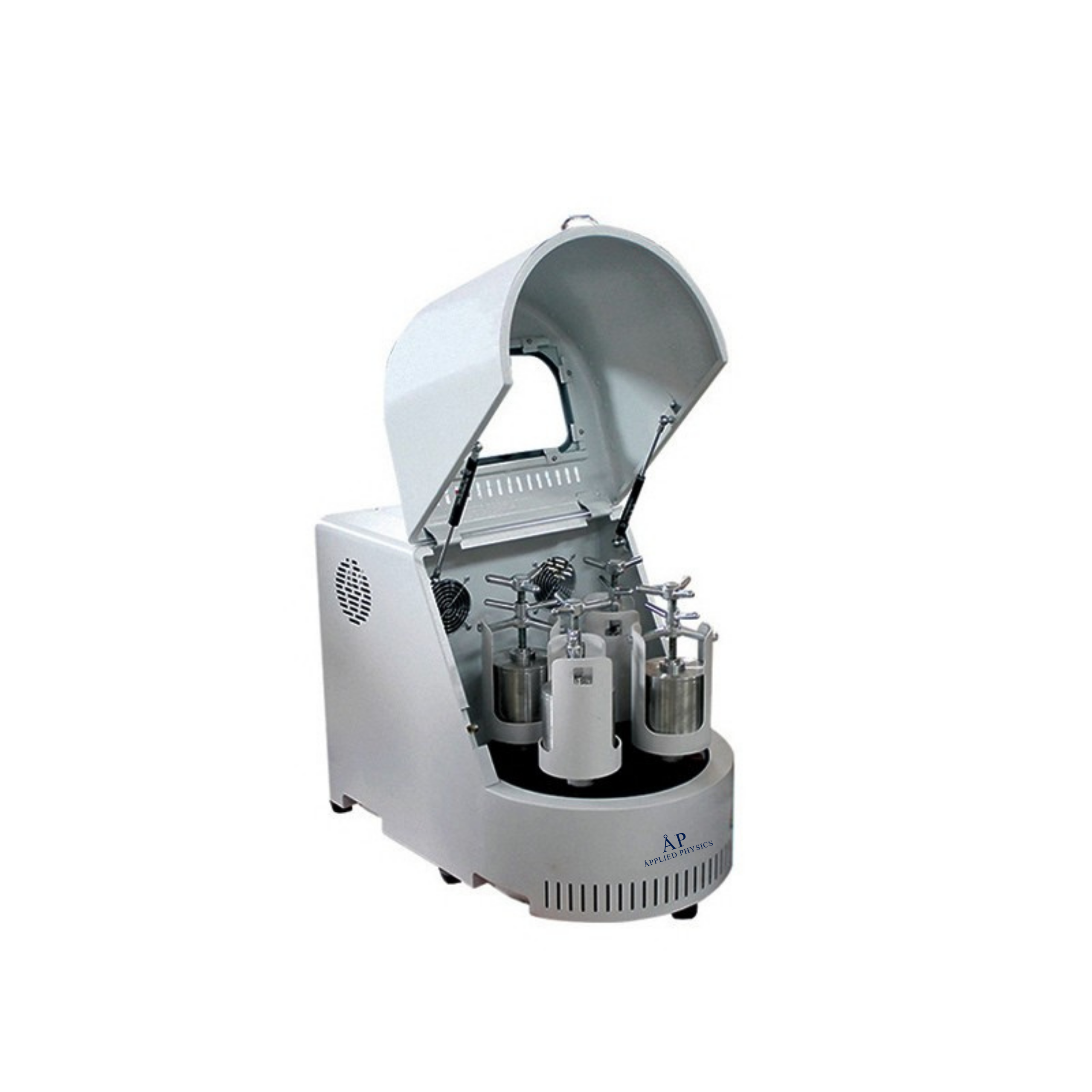

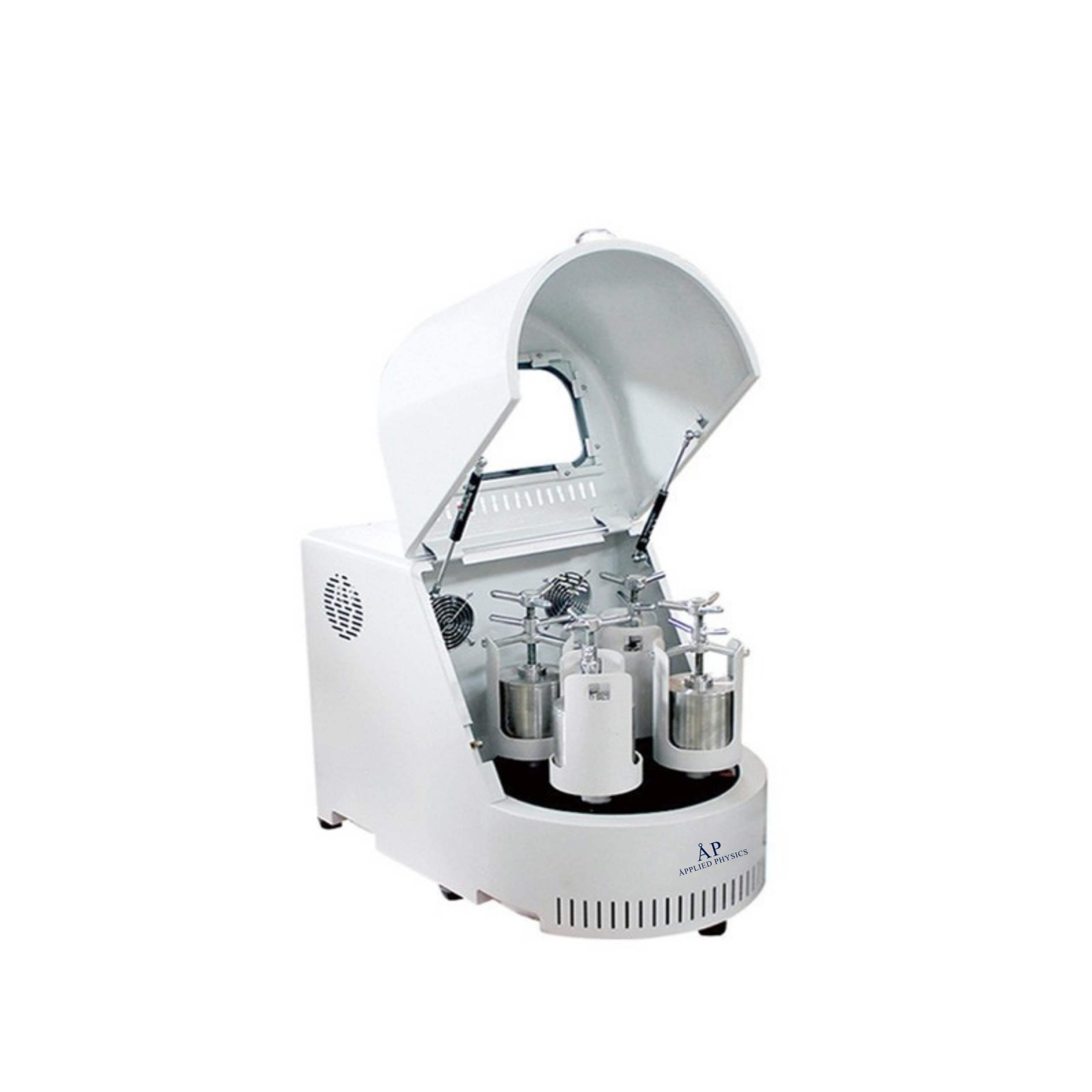

Vertical Planetary Ball Mill(Semi-circle Type)
Features:
1. 3D curve shape design.
2. Special gear with low noise.
Technical Parameters:
Model
BKBM-V0.4
BKBM-V2
Capacity
0.4L
2L
Volume of Each Capacity
50~100ml
50~500ml
Pot Quantity
4pcs
Running Time Range
1~9999min
Reciprocal Running Time
1~999min
Adjustable, Revolution
45~435rpm
35~335rpm
Speed Rotation
90~870rpm
70~670rpm
Noise
58±5dB
60±5dB
Speed Control Mode
Frequency control
Transmission Mode
Gear drive
Working Mode
2 or 4 pots can be used each time
Maximum Sample Volume(Material+Grinding Ball)
2/3 of the volume of the ball mill tank
Feed Size
Soft and Crispy material<10mm, Other materials<3mm Out-put Granularity Minimum granularity can be reached to 0.1μm Adjusting Mode of Rotate Speed Frequency converter with stepless speed regulation Consumption 0.25KW 0.75KW Power Supply AC110/220V±10%, 50/60Hz External Size(W*D*H)mm 530*300*340 750*470*565 Package Size(W*D*H)mm 595*360*485 820*530*720 Net Weight(kg) 29 80 Gross Weight(kg) 50 100 Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately.
| Model | BKBM-V0.4, BKBM-V2 |
|---|
