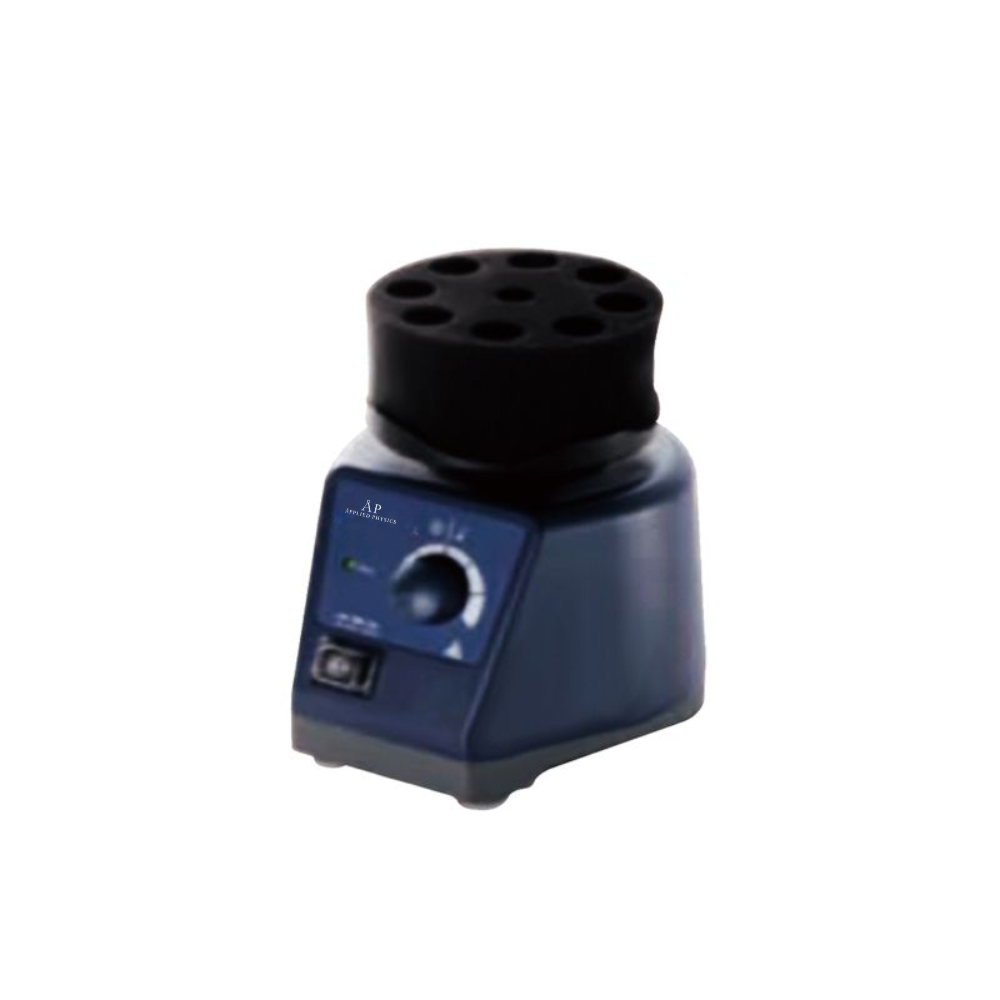

Vortex Mixer MX-S MX-F

Vortex Mixer MX-S MX-F Features: 1. Touch operation or continuous mode. 2. Variable speed control from 0 to 3000rpm(MX-S). 3. Fixed speed 3000rpm(MX-F). 4. Used for various mixing applications with optional adapters(MX-S). 5. Specially designed vacuum suction feet for body stablility. 6. Robust aluminum-east construction. 7. When the test tube adapter or flat gasket accessory is selected, it must be matched with VY1.2 or VT1.3. Technical Parameters: Model MX-S MX-F ltem No. 8031102000 8031101000 Shaking Mode Orbital Orbital Diameter 4mm Motor Type Shaded pole motor Motor Input 58W Motor Output 10W Speed Range 0~3000rpm 0~3000rpm Speed Display Scale / Operation Mode Continuous/touch operation Ambient Temp. 5~40℃ Relative Humidity 80%RH Protection Type IP20 Power Consumption 60W Power Supply AC110/220V±10%, 50/60Hz(Customizable) Standard Accessories VT1.1 standard top External Size(W*D*H) 127*130*160mm Package Size(W*D*H) 290*240*220mm Gross Weight 3kg Optional Accessories: Accessories MX-S(0~2500rpm) Touch Mode(High Speed Area) Continuous Mode(Low Speed Area) VT1.1 Standard Standard VT1.2+VT1.3.1 Optional / VT1.2+VT1.3.2 Optional / VT1.2+VT1.3.3 Optional / VT1.2+VT1.3.4 Optional / VT1.2+VT1.3.5 Optional / VT1.3+VT1.3.6 Optional VT1.3+VT1.3.1 / Optional VT1.3+VT1.3.2 / Optional VT1.3+VT1.3.3 / Optional VT1.3+VT1.3.4 / Optional VT1.3+VT1.3.5 / Optional Application of Accessories: Cat. No. P/N 18900034 VT1.1 18900044 VT1.2 18900505 VT1.3+VT1.3.7 18900020 VT1.3.1 18900021 VT1.3.2 18900022 VT1.3.3 18900023 VT1.3.4 18900024 VT1.3.5 18900043 VT1.3.6 18900158 VT1.3.7 18900395 VT1.3.8 18204185 VT1.3.9 18900855 VT1.3.10 18900862 VT1.3.11 18900875 VT1.3.12 18204342 PS1.0 18204566 VT1.4 18204561 VT1.5

Catalog relationship: Available Through Applied Physics
