Optimizing High-Throughput PCB Production with 10-Head SMT Equipment

Electronics manufacturers today face constant pressure to produce more boards in less time without compromising quality.

As component sizes shrink and board complexity increases, traditional pick and place machines often become a bottleneck.

A 10-head SMT pick and place machine offers a practical solution for medium to high-volume production.

These systems combine speed with flexibility, allowing manufacturers to handle a wide range of components while maintaining consistent output.

Challenges in High-Volume PCB Assembly

Many production lines struggle with several common issues.

Slow placement speeds that limit daily output
Frequent nozzle changes that cause downtime
Difficulty handling both very small and large components on the same machine
Inconsistent accuracy when running at higher speeds
Limited feeder capacity that requires frequent changeovers

These problems reduce overall equipment effectiveness (OEE) and increase labor costs. Manufacturers need equipment that can sustain high throughput across different product mixes.

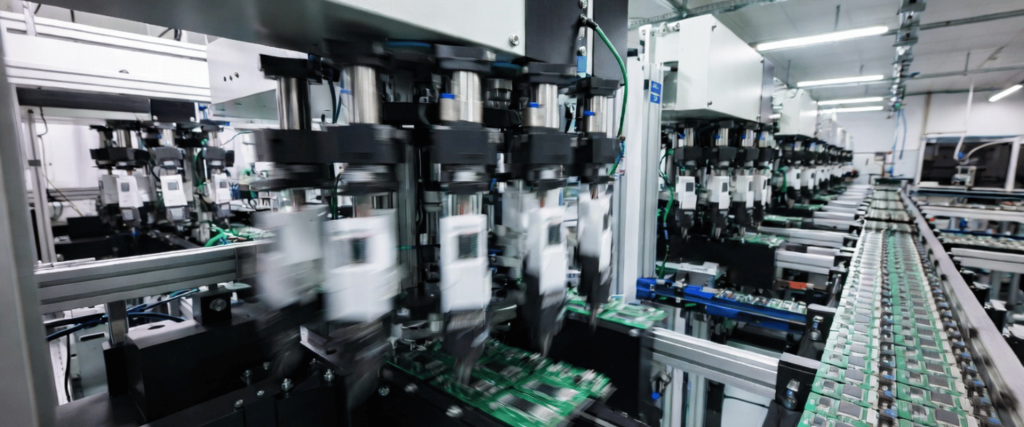

How 10-Head Machines Reduce Production Bottlenecks

A well-configured 10-head machine improves efficiency in several practical ways.

Higher Daily Output

With a 42,000 CPH capability, manufacturers can complete more boards per shift than machines with fewer heads.

Fewer Interruptions

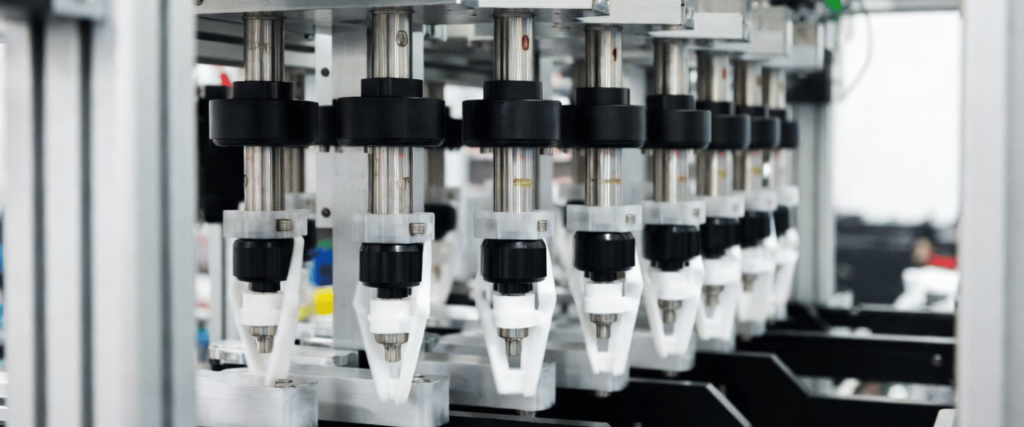

The automatic nozzle changer allows the machine to switch between different component types without stopping production for manual changes.

Better Line Balance

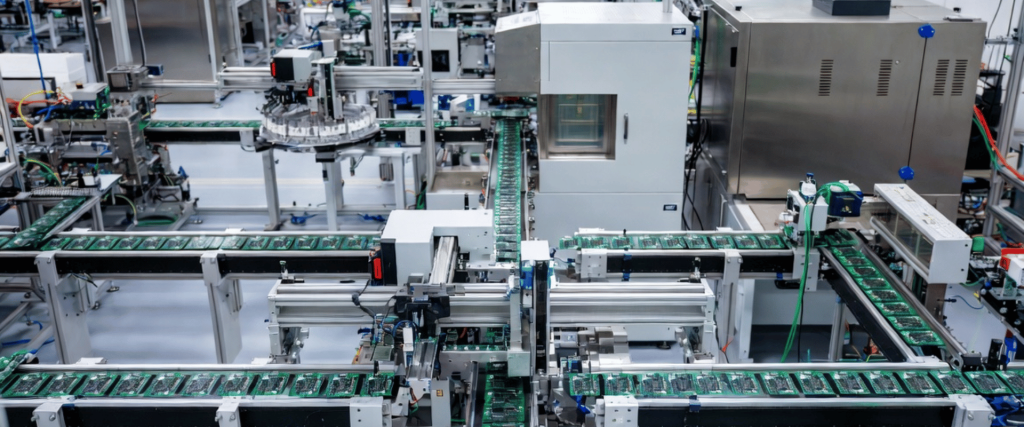

When paired with a reflow oven and other equipment, a 10-head machine helps balance the entire SMT line, reducing waiting time between processes.

Flexible Production

The wide range of components and high feeder capacity make it easier to run different products on the same line without major reconfigurations.

Why 10-Head Pick and Place Machines Improve Throughput

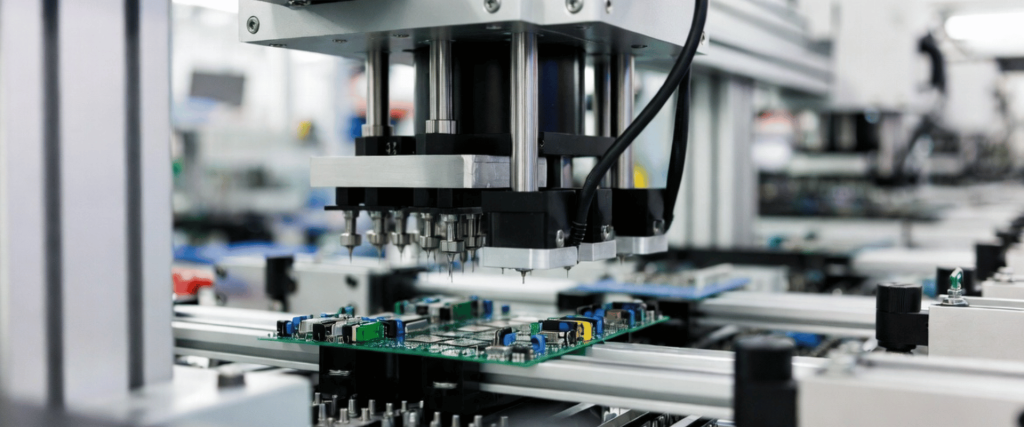

Machines with 10 placement heads address many of these challenges directly. Multiple heads work simultaneously, which significantly increases the components placed per hour.

They maintain good accuracy even at higher speeds
Advanced vision systems allow reliable placement of small passive components and larger ICs
Automatic nozzle changing reduces manual intervention
High feeder capacity supports longer production runs with fewer stops

This combination helps manufacturers achieve higher daily output while keeping defect rates low.

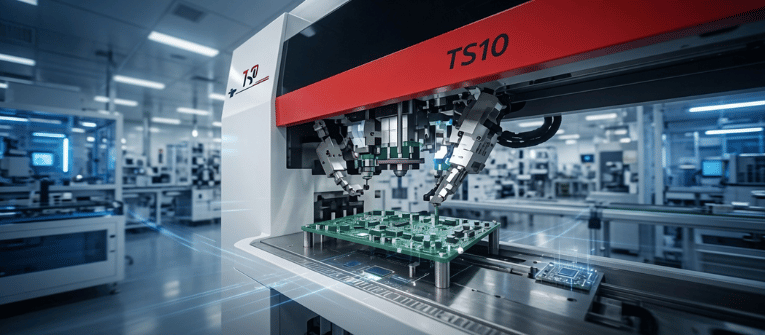

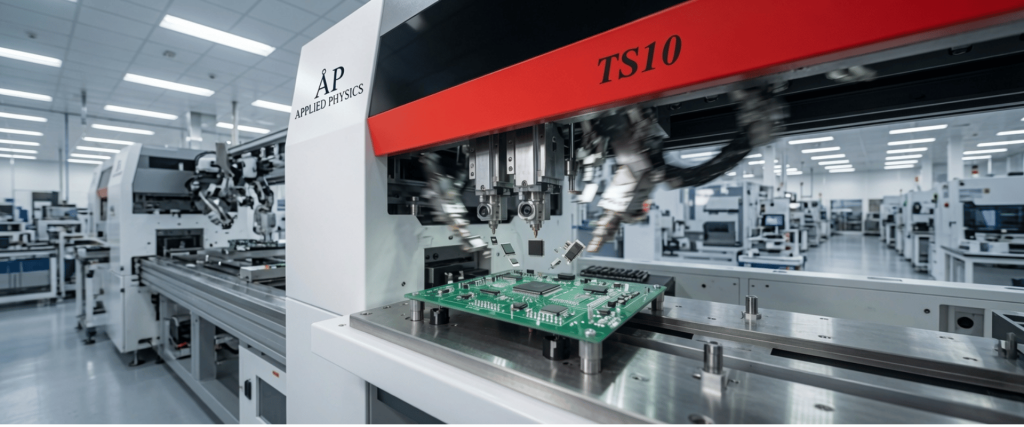

Technical Capabilities of the TS10 10-Head SMT Machine

The TS10 is a 10-head pick and place machine designed for high-throughput environments. It balances speed, accuracy, and flexibility for electronics manufacturers running medium to large production volumes.

Specification	Details	Benefit for Production
Mounting Heads	10 heads	Higher parallel placement for increased speed
Optimal Placement Speed	42,000 CPH	Strong throughput for high-volume runs
Placement Accuracy	±0.035 mm (XY), CPK ≥ 1.0	Reliable quality even at higher speeds
Component Range	01005 to 36 × 36 mm	Handles both tiny passives and larger components

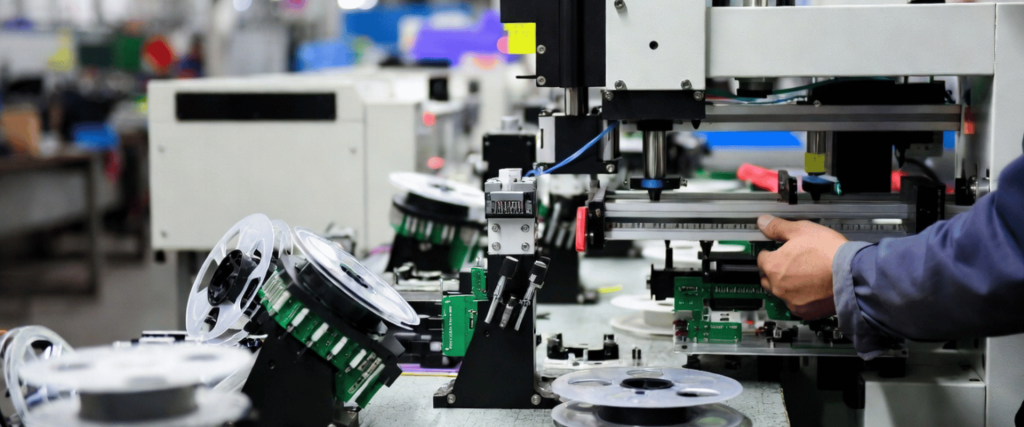

Feeder Capacity	Up to 100 positions (NXT 8mm)	Longer runs with fewer feeder changes
Nozzle Changer	Automatic, 37-hole library	Reduces downtime between component types
Vision System	10 flying cameras + 1 high-definition IC camera	Accurate recognition across component sizes
Maximum PCB Size	600 × 400 mm standard, up to 1200 × 400 mm optional	Supports larger boards when needed
Drive System	Panasonic A6 servo motors + dual Y-axis	Stable and precise movement

These specifications make the TS10 suitable for manufacturers producing consumer electronics, industrial control boards, LED products, and similar applications where both speed and component variety matter.

Factors to Consider Before Choosing a 10-Head System

Not every production environment needs a 10-head machine. Before investing, evaluate these points.

Production Volume: These machines perform best when daily output requirements are consistently high.
Product Mix: If you frequently switch between very different board designs, confirm the machine’s flexibility matches your needs.
Floor Space and Power: Larger machines require adequate space and a proper three-phase power supply.
Operator Skill Level: While modern machines are more user-friendly, proper programming and maintenance still require trained staff.
After-Sales Support: Reliable technical support and spare parts availability are critical for minimizing downtime.

Taking time to match the machine’s capabilities with actual production requirements helps avoid over-investment or under-performance.

Conclusion

A 10-head SMT pick and place machine can meaningfully improve throughput for manufacturers who need higher output without sacrificing placement quality.

Models like the TS10 demonstrate how modern systems combine speed, accuracy, automatic features, and flexibility in one platform.

Success depends on choosing equipment that fits your specific volume, component types, and long-term production goals.

When properly matched to the application, these machines help electronics manufacturers stay competitive by increasing capacity while keeping quality under control.

Frequently Asked Questions (FAQs)

1. What is the main advantage of a 10-head pick and place machine?

The primary benefit is higher placement speed through parallel operation of multiple heads. This allows manufacturers to increase daily board output compared to machines with fewer heads.

2. Can the TS10 handle both very small and large components?

Yes. It supports components from 01005 size up to 36 × 36 mm, including many common IC packages such as QFP, QFN, and BGA.

3. How important is the automatic nozzle changer?

It significantly reduces downtime. Instead of stopping the machine to manually change nozzles when switching component types, the system handles this automatically using its nozzle library.

4. Is a 10-head machine suitable for small production runs?

It can be used, but these machines deliver the best return when production volumes are high enough to utilize their speed. For very low volumes, a machine with fewer heads may be more cost-effective.

5. What should I check before buying a 10-head SMT machine?

Focus on real placement speed under your conditions, feeder capacity for your typical jobs, accuracy requirements, available floor space, and the quality of after-sales support from the supplier.
