Manual patient transfers remain a primary cause of debilitating back injuries and musculoskeletal strain among clinical healthcare workers.
Moving a non-ambulatory patient should not mean compromising your lumbar spine or risking a dangerous fall.
This article explains how split-frame mechanical shift machines fully absorb the physical load, transforming a hazardous lifting task into a safe, controlled operator workflow.
Manual patient handling is a major cause of back injuries and muscle strain among nurses, therapists, and care aides. Tasks like lifting, repositioning, and transferring non-ambulatory patients can place heavy stress on the caregiver’s body.
During manual transfers, caregivers often bend forward, twist, or lean sideways. When the patient’s weight shifts suddenly, this increases pressure on the lower back and raises the risk of injury.
Over time, repeated strain can lead to lumbar disc problems, muscle injuries, chronic pain, and reduced work ability. This is why safer patient transfer methods, such as mechanical lifts or shift machines, are important in clinical settings.

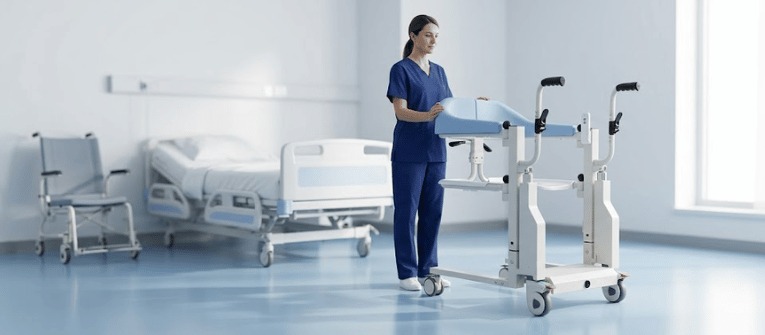

Mechanical lift-and-shift machines re-engineer the transfer process by shifting the structural load from human musculature to a rigid mechanical chassis.
Rather than serving as the primary lifting mechanism, the caregiver acts as an operator, guiding the machine through controlled manual adjustments or motorized inputs.

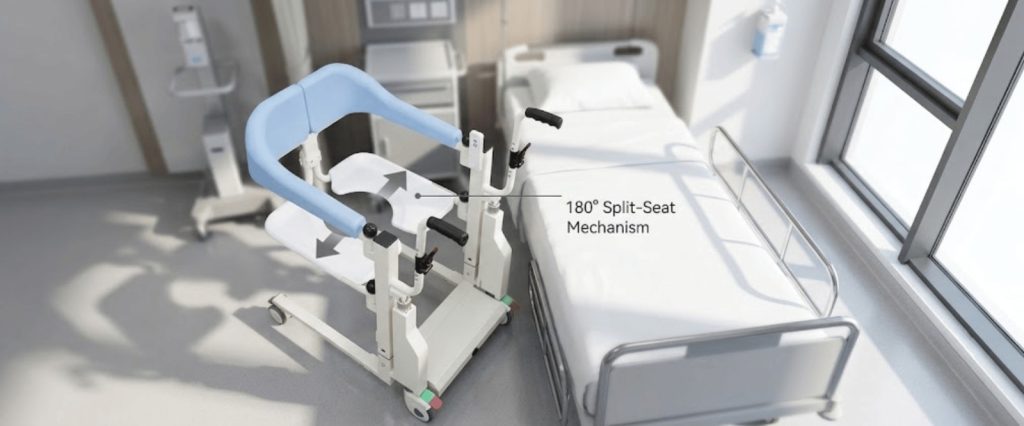

Traditional patient transfers require heavy lateral pulling or full bodily hoisting to place a patient into a wheelchair or transport seat. Modern systems, such as the MFYW series, utilize a split-seat base that opens up to 180 degrees. This structural approach allows the device to slide completely around the patient at their current seating or resting level.
By eliminating the need to pre-lift or manually roll the patient onto a sling, the initial shear force on the caregiver’s upper body is removed. The seat segments close beneath the patient, forming a secure platform without demanding manual weight-bearing assistance from medical personnel.
The method used to achieve vertical travel directly determines the physical demand placed on clinical operators. Mechanical lift units typically employ either electric or hydraulic lifting technologies to manage patient elevation.

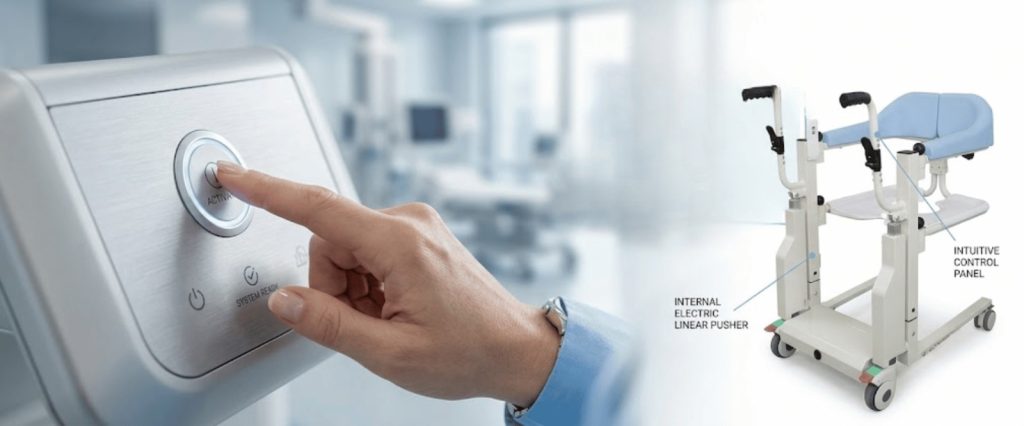

These configurations utilize an automated pusher powered by a low-voltage direct current motor. The caregiver adjusts the height by pushing a button, requiring zero mechanical exertion.
This type of lift is optimal for high-frequency clinical settings where rapid, repeated transfers are standard.

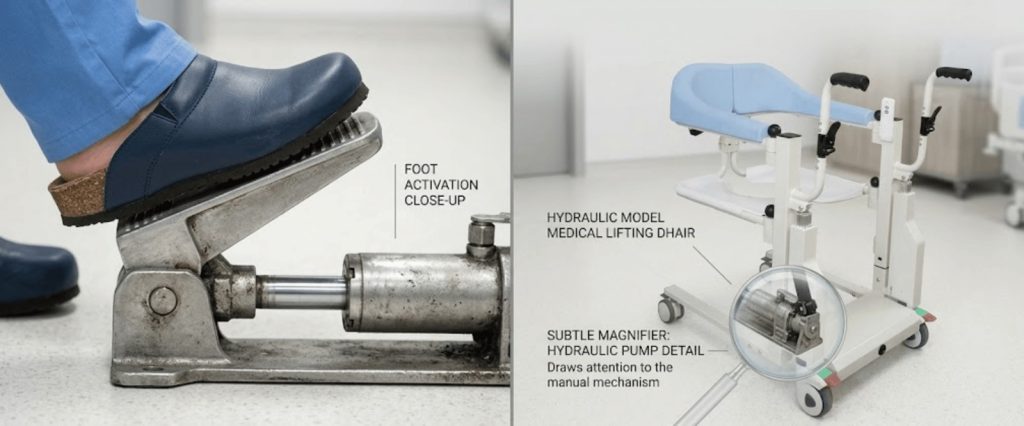

These units utilize a sealed fluid compression system operated via a foot pedal or hand lever.
While manual activation is required, the internal mechanical advantage amplifies the caregiver’s input, reducing the manual physical force to a fraction of the patient’s actual weight. This setup provides utility in areas lacking immediate electrical infrastructure.
To select the appropriate clinical intervention strategy, facilities must assess the underlying mechanical attributes of available lift infrastructure. The following table provides a technical breakdown of electric and hydraulic patient shift variations.
| Technical Dimension | Electric Shift Variant (MFYW201) | Hydraulic Shift Variant (MFYW102) |
|---|---|---|
| Primary Lifting Mechanism | Automated electric linear pusher | Manual hydraulic sealed fluid pump |
| Power Requirements | AC 100–240V input / DC 24V internal | Non-powered, fully mechanical |
| Vertical Travel Range | Up to 230 mm adjustment span | Up to 150 mm adjustment span |
| Safe Working Load | Maximum capacity: 120 kg | Maximum capacity: 120 kg |
| Base Passing Width | Minimum clearance width: 560 mm | Minimum clearance width: 560 mm |
| Primary Injury Prevention Vector | Eliminates vertical physical strain through automated drive | Reduces manual pump effort through mechanical force multiplication |
Deploying patient shift machines requires systematic integration with clinical safety protocols to ensure structural stability and patient comfort.
Devices must feature narrow external dimensions (such as a 560 mm passing profile) to navigate standard doorways, tight bedside gaps, and standard bathroom spaces smoothly.

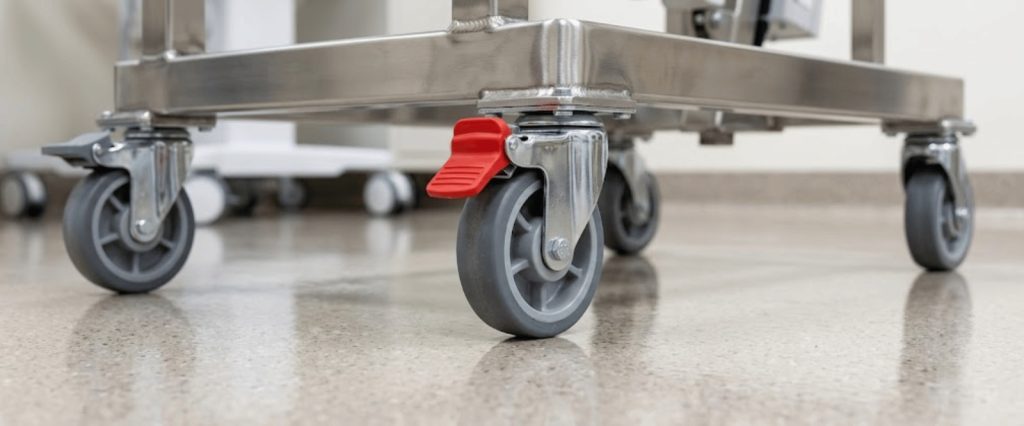

To prevent tip-overs or unintended motion during transfers, double-locking rear safety systems and 360-degree silent castors with dedicated foot brakes are mandatory.
Caregivers must be trained to engage the mechanical brake locks before opening the seat frame or executing vertical adjustments. This approach secures the position of the machine and eliminates secondary balancing stresses for the operator.
The introduction of specialized mechanical shift machines represents a critical shift away from hazardous manual patient handling practices.
By using advanced engineering choices, like 180-degree split-base frames, low-profile chassis, and targeted lifting drives, these devices address the precise biomechanical triggers responsible for caregiver injuries.
Implementing these systems safeguards healthcare workers, lowers facility costs associated with work-related injuries, and elevates the standard of safe patient handling across clinical environments.
Unlike overhead sling lifts that require extensive pre-rolling and fabric attachment under the patient, an open-base shift machine splits down the middle. It slides directly around the patient at their current seating level, eliminating the heavy manual pulling and positioning steps that often strain caregivers.
Yes. The automated linear pusher on electric models handles the entire lifting load with simple button controls. This allows a single nurse or home aide to safely lift, transport, and lower a patient without requiring extra physical assistance.
Hydraulic units require periodic checks of the fluid seals and mechanical levers to ensure consistent pressure. Electric models do not have hydraulic fluid but require regular battery charging and simple electrical wire inspections.
Both the electric (MFYW201) and hydraulic (MFYW102) variants are structurally rated for a maximum safe working load of 120 kg (approximately 265 lbs).
