An industrial dehumidifier relies entirely on its humidity sensor.
If readings drift high, the unit wastes energy by over-drying; if they drift low, unmonitored moisture leads to corrosion, powder clumping, electrostatic issues, and audit failures.
Even a perfectly sized system will fail when its feedback loop is compromised.
Because sensing elements must remain directly exposed to process air, sensor drift is inevitable. The goal is not eliminating drift, but detecting deviations early through routine, risk-aligned calibration.
Most industrial RH probes use a capacitive polymer film. Water vapor changes the film’s dielectric constant; the electronics convert that change into % RH. Anything that changes the film, or blocks vapor from reaching it—shifts the reading.

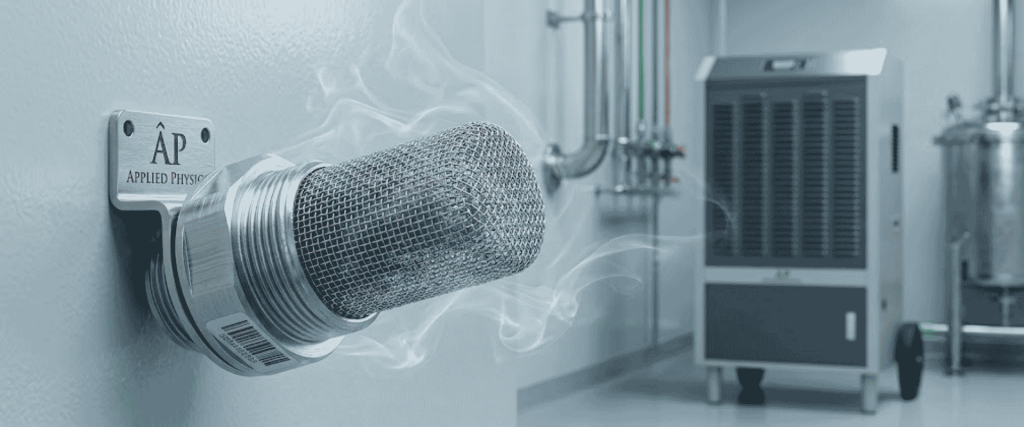

Cleaning agents, alcohols, solvents, floor coatings, and process fumes can adsorb onto the sensing film.
Strong odors are a practical warning: if staff can smell a chemical in the zone, the sensor is likely seeing it too. Contaminant-driven drift is often an offset error that grows after maintenance or construction work.

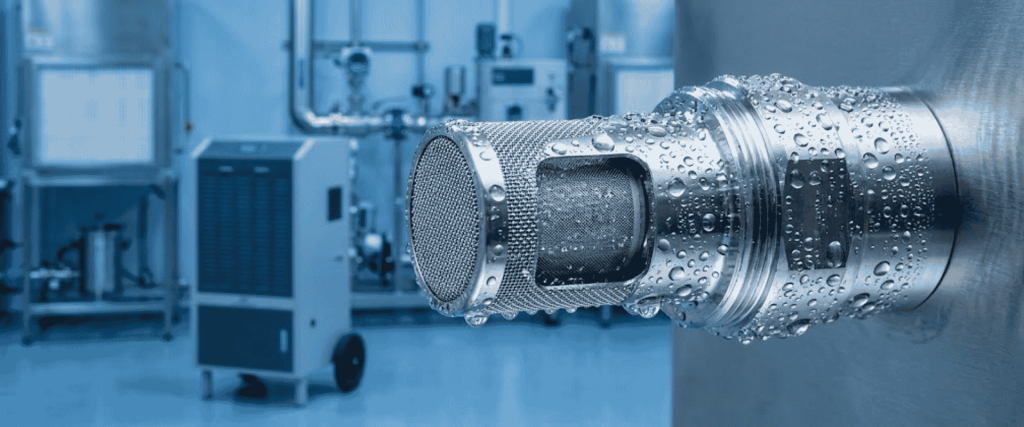

When the probe cools below the local dew point, liquid water can sit on the sensor.
Short events may recover. Repeated wetting ages the film and can leave a lasting bias. Cold walls, uninsulated duct mounts, and rapid temperature swings raise this risk.

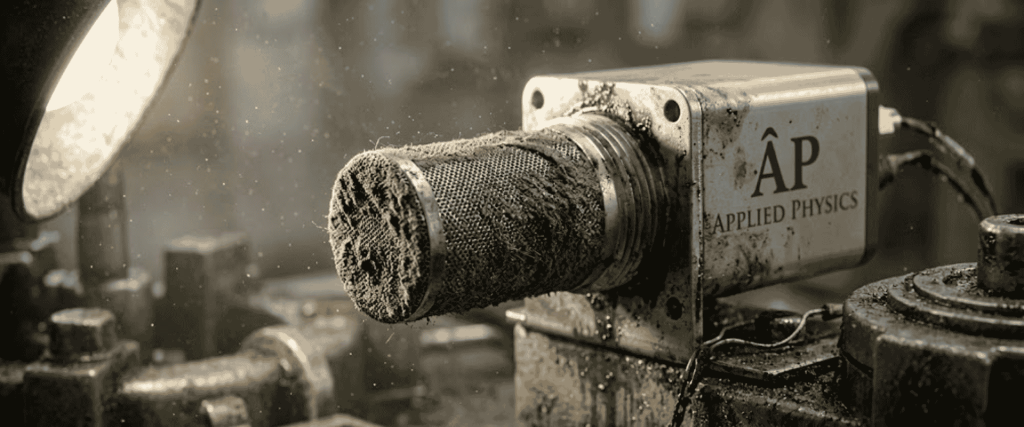

Dust does not always break a sensor at once. It slows vapor exchange, lengthens response time, and can bias readings in dirty production areas.
Filters and probe caps help until they clog; then the reading lags real room conditions.
RH is temperature-dependent. Poor temperature compensation, heat from nearby equipment, or wide daily temperature cycles add error on top of true humidity change.
Even in clean air, capacitive sensors typically show long-term drift on the order of a few tenths of a percent RH per year; harsh rooms move much faster.

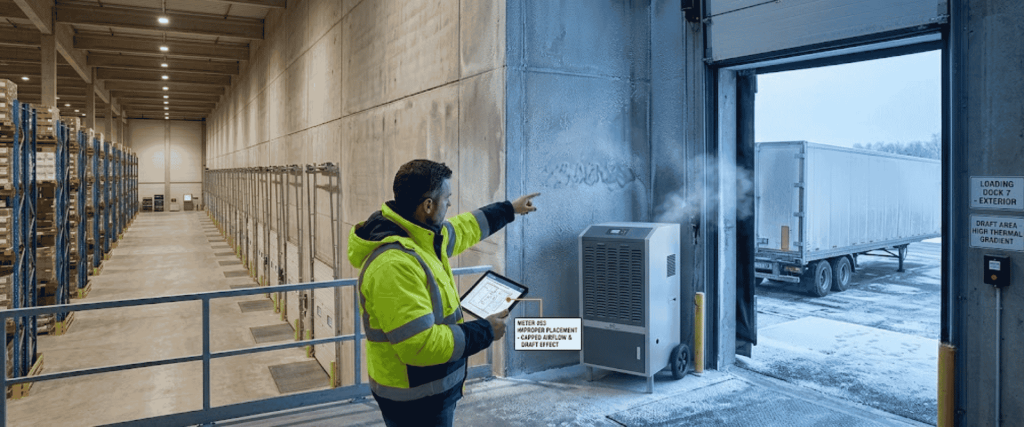

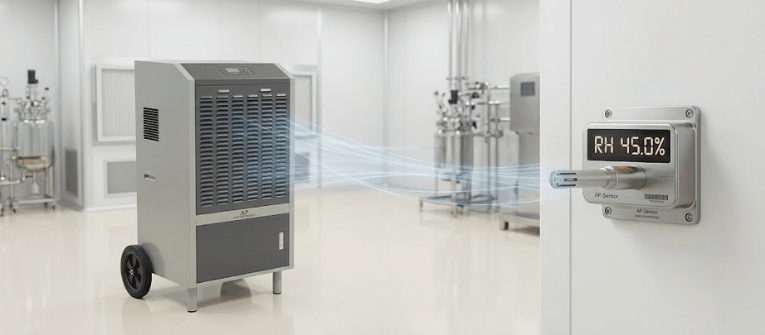

A probe in stagnant air, in the dehumidifier discharge stream, against an exterior wall, or above a wet floor measures a microclimate, not the occupied zone.
The number looks wrong even when the sensor is still within calibration.
Match probe type and protection to chemicals, dust, and condensation risk.

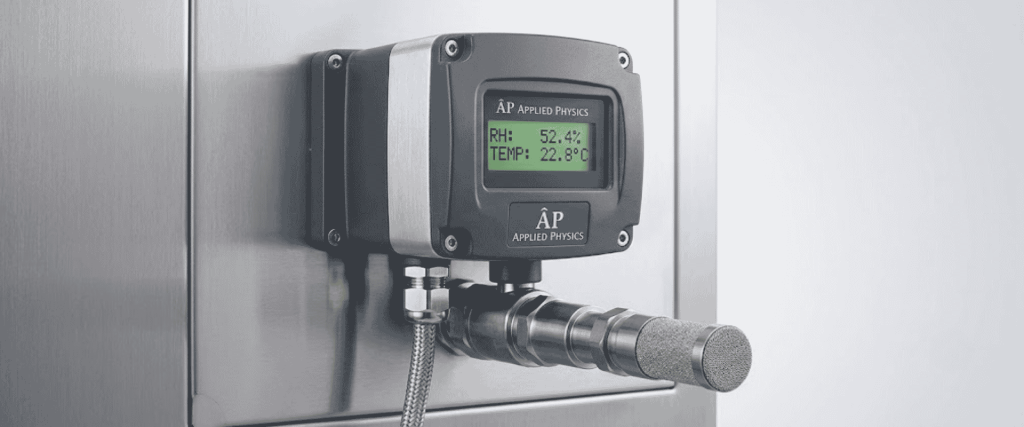

In harsher zones, use industrial transmitters with replaceable or serviceable heads, sintered filters, and documented long-term stability, not only the board-level sensor inside a portable unit.

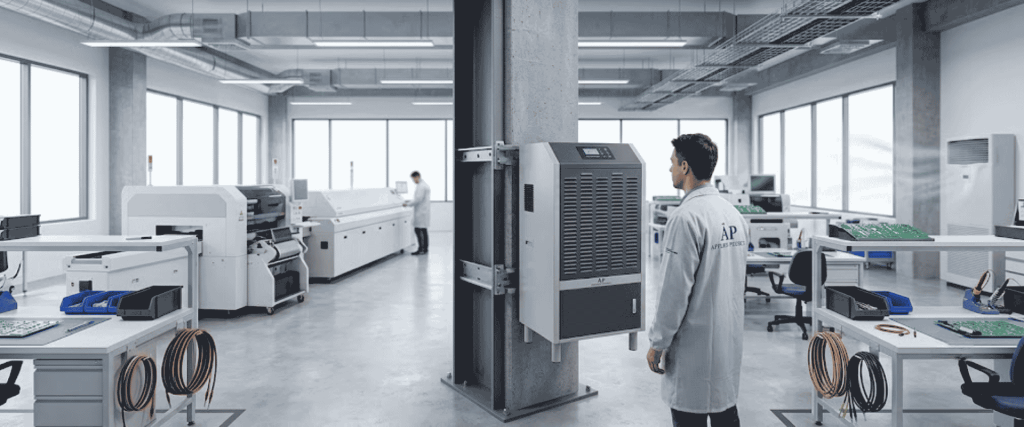

Mount the control sensor at process height in representative airflow, away from.
If one unit serves a large hall, confirm the probe location still represents the product zone after layout changes.
During floor stripping, solvent wipe-downs, or fogging, remove probes, cap them, or power down and isolate per manufacturer guidance. Do not store open chemicals next to the transmitter.
After heavy cleaning, compare the unit reading to a reference hygrometer before trusting automatic control again.

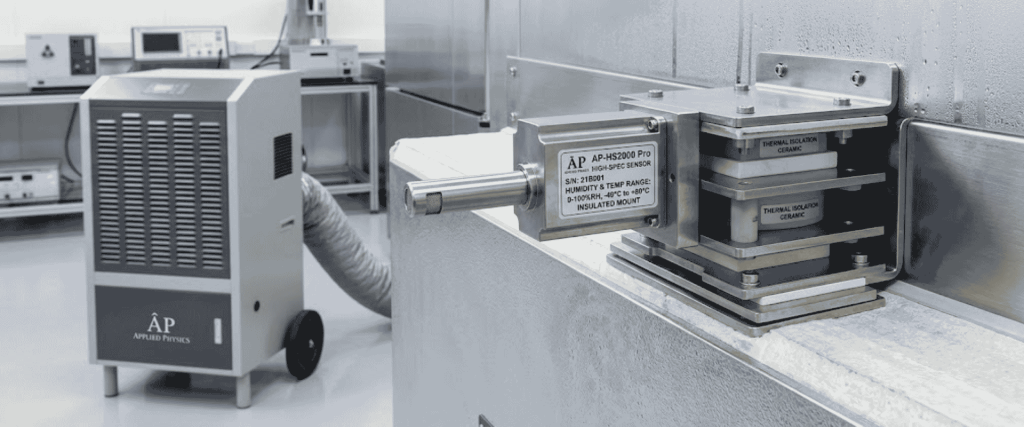

Avoid mounting on cold surfaces. Use probe orientation and shielding recommended by the maker.
If the space regularly approaches dew point, choose sensors rated for condensation recovery and allow dry-out time before relying on tight control.

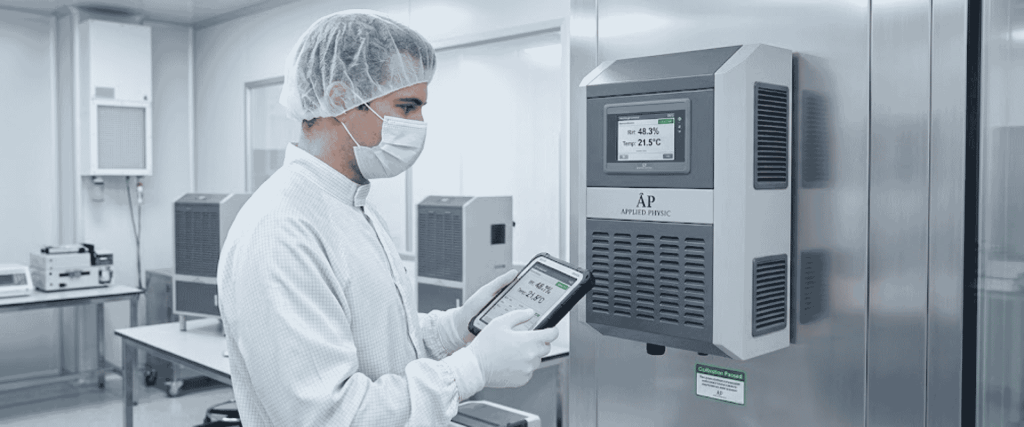

Clean, stable rooms may support annual checks. Dirty, chemical, or high-humidity rooms often need quarterly or semi-annual verification. Critical records (batch, audit, customer spec) should use a traceable reference standard, not only a second uncalibrated display.
As-found / as-left data matters. If as-found error is already outside process tolerance, shorten the interval and investigate placement and contamination, not only the electronics.

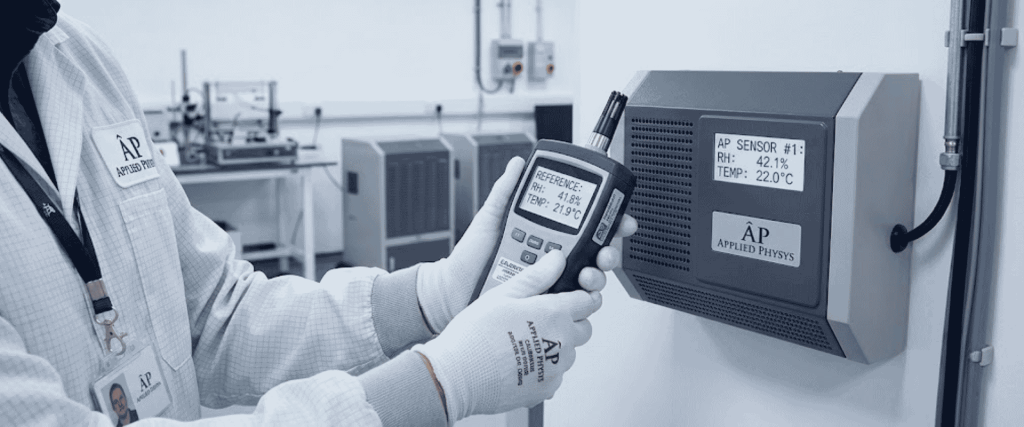

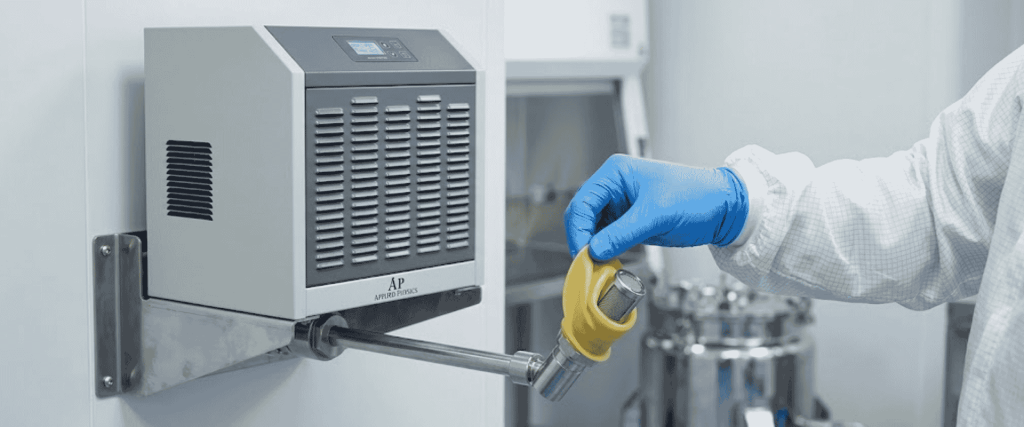

Keep a calibrated handheld or fixed reference hygrometer for spot checks at the control point. Log unit RH vs reference RH. A growing gap is drift or placement error showing up before product quality does.
Practical steps.

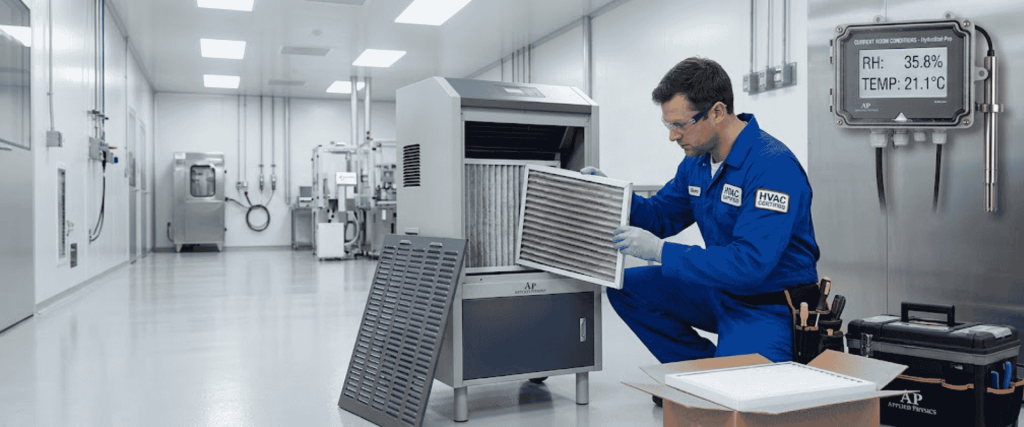

Blocked filters, iced coils, full drains, and failing fans change local humidity at the unit.
Operators then blame the sensor when airflow and coil performance are the root cause. Keep intake clear, confirm drain flow, and verify auto defrost is completing in cool rooms.
Watch for these plant-floor signals.

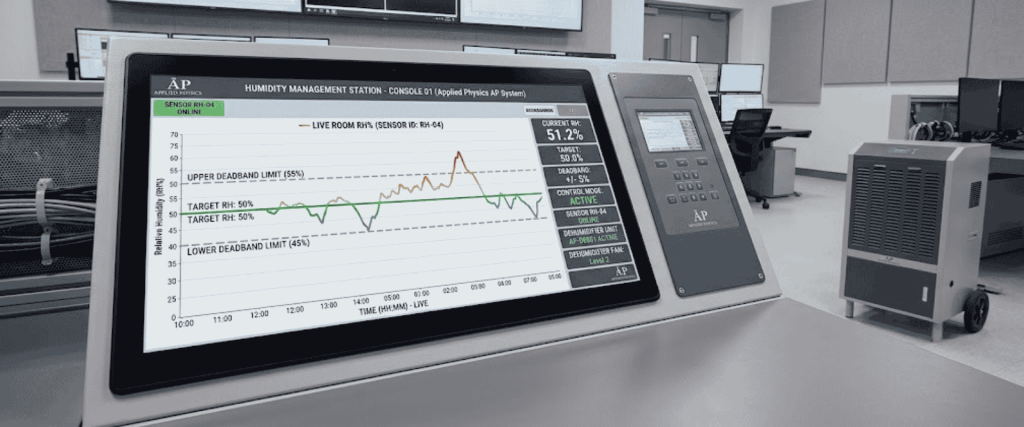

When control precision is specified at ±5% RH, an extra 3–5% of uncorrected sensor drift can push the real room outside the band the team thinks it is holding.
A short routine that fits most industrial dehumidifier sites.
If error exceeds tolerance and cleaning or offset adjustment is not allowed or not effective, replace the probe. Do not fix a critical room by shifting the setpoint to mask a bad sensor without documenting the offset and fixing the root cause.

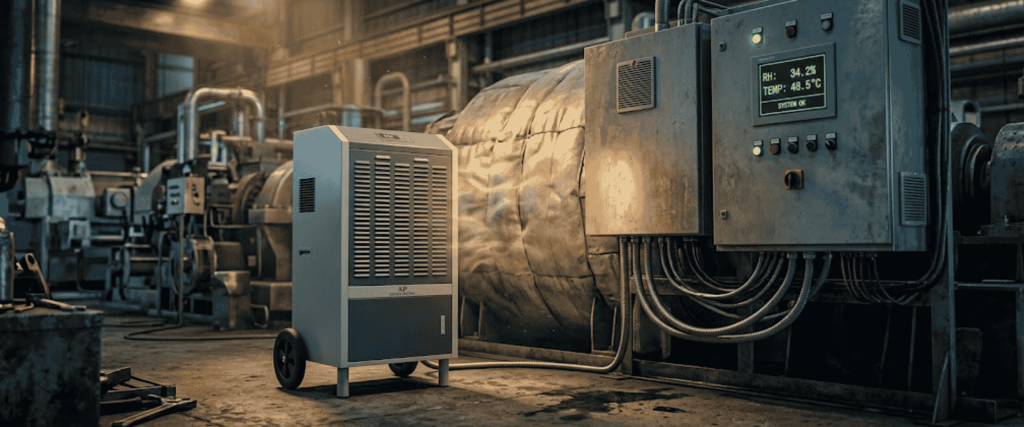

Hardware still matters. A correctly sized industrial dehumidifier reduces how hard the control loop must work and limits extreme wet/dry cycling that stresses sensors.
When you size or replace a unit, capture
Models in the BKDH class (about 7–20 L/h removal, 2,000–5,600 m³/h airflow, ±5% RH control indication) fit many production and storage floors when matched to area and power. Sensor discipline is what keeps that capacity pointed at the real room condition.
Critical dehumidification fails quietly when the RH sensor drifts. Contaminants, condensation, dust, heat, aging, and bad placement all pull the displayed humidity away from the true value.
The dehumidifier then overworks, underworks, or both, while dashboards still look fine.
Preventing drift is a system habit: right probe, right location, protection during chemical work, risk-based calibration, reference checks, and mechanical maintenance that keeps airflow and drainage honest.
Pair that discipline with a unit sized for the space and moisture load, and RH control stays inside the band your process actually needs.
Stable humidity is not only a compressor and a coil. It is a measurement you can still trust on the worst day of the month.
It is a gradual or step change in RH reading away from the true humidity, caused by contamination, condensation, dust, temperature stress, aging, or poor placement, even when the dehumidifier itself is running.
Base the interval on risk. Clean, stable areas often use annual checks. Rooms with chemicals, dust, wash-down, or tight product specs usually need quarterly or semi-annual verification against a traceable reference.
A temporary offset can keep product safe for a short time, but it hides the fault. Document any offset, then clean, relocate, calibrate, or replace the sensor so the displayed RH matches the room again.
At a height and location that represent the product or process air, with steady mixing, away from discharge air, doors, wet floors, exterior walls, and hot equipment.
