The -86 ℃ freezer is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.
$0.00

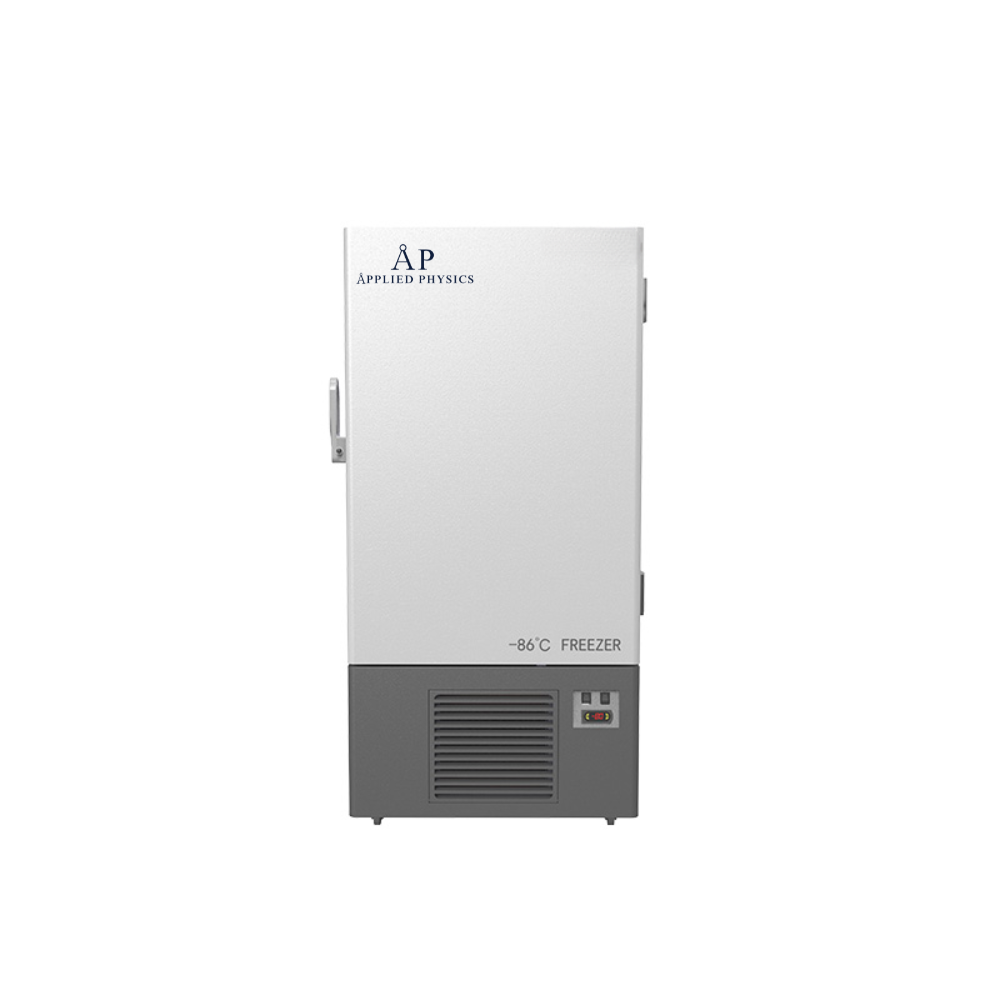

‘-86℃ Freezer BDF-86V158 (Customized)
Technical Parameters:
Model
BDF-86V168
Capacity
158L
Temp. Range
-40~-86℃
Temp. Accuracy
0.1℃
Temp. Uniformity
±4℃
Temp. Stability
≤6℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)
≤15min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)
≤4h
Control System
Microprocessor control
Display
LED
Alarm
High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type
Direct-cooling
Refrigerant
R600a/R1150/R14, 137g
Compressor
International famous brand compressor/1
Condenser&Evaporator
Micro channel condenser; built-in coil type, copper pipe
Defrost
Manual defrost
Construction
Polyurethane cyclopentane foam
Material
Internal Material
SUS304 stainless steel
External Material
Sprayed steel plate
Door
Outer door: cyclopentane monomer foam door*1
Inner door: cyclopentane monolithic foaming, stainless steel door*3
Consumption
650W
Apparent power: 858VA
Power Supply
AC220V, 50Hz(Standard);
220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters
Yes
Shelf
2
Standard Accessory
Test port*2
Optional Accessory
RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder
Internal Size(W*D*H)
465*455*820mm
External Size(W*D*H)
844*807*1594mm
Package Size(W*D*H)
1000*970*1790mm
Net Weight
168kg
Gross Weight
221kg
| Model | BDF-86V158 |
|---|
