The -86 ℃ freezer is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.
$0.00

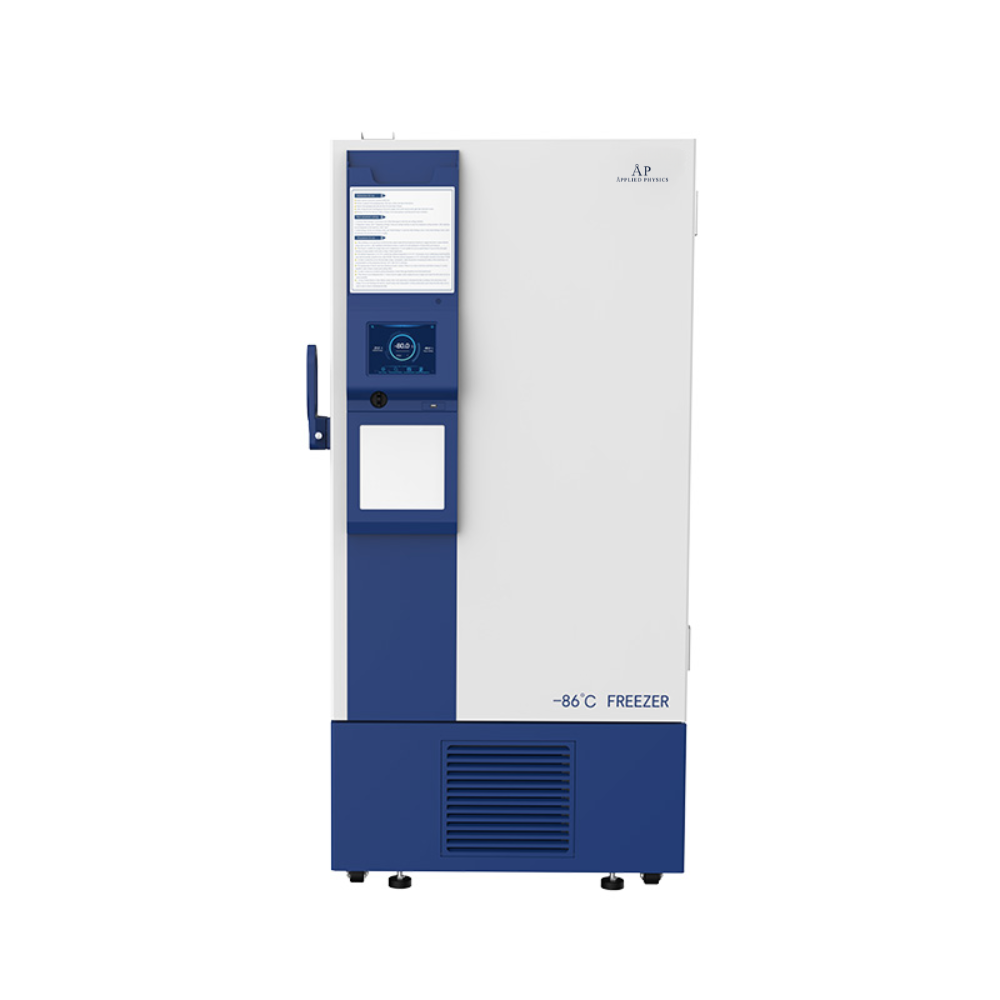

‘-86℃ Freezer BDF-86V418T BDF-86V608T
Technical Parameters:
Model
BDF-86V418T
BDF-86V608T
Capacity
418L
608L
Temp. Range
-40~-86℃
Temp. Accuracy
0.1℃
Temp. Uniformity
±4℃
Temp. Stability
≤6℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)
≤45min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)
≤7h
Control System
Microprocessor control
Display
LCD
Alarm
High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type
Direct-cooling
Refrigerant
R290/R170, 340g
R290/R170, 358g
Compressor
International famous brand compressor/2
Condenser&Evaporator
Built-in coil type, copper pipe, copper tube and aluminum fin
Defrost
Manual defrost
Construction
Polyurethane cyclopentane foam
Material
Internal Material
SUS304 stainless steel
External Material
Sprayed steel plate
Door
Outer door: cyclopentane monomer foam door*1
Inner door: cyclopentane monolithic foaming, stainless steel door*2
Consumption
1070W
Apparent power: 1870VA
1110W
Apparent power: 1870VA
Power Supply
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Casters
Yes
Shelf
3
Standard Accessory
Test port*2, USB interface, RS485 interface
Optional Accessory
Liquid nitrogen backup system, temperature recorder
Internal Size(W*D*H)
600*612*1150mm
620*755*1280mm
External Size(W*D*H)
980*988*1945mm
1000*1147*1996mm
Package Size(W*D*H)
1130*1170*2150mm
1150*1280*2210mm
Net Weight
315kg
360kg
Gross Weight
390kg
438kg
| Model | BDF-86V418T, BDF-86V608T |
|---|
