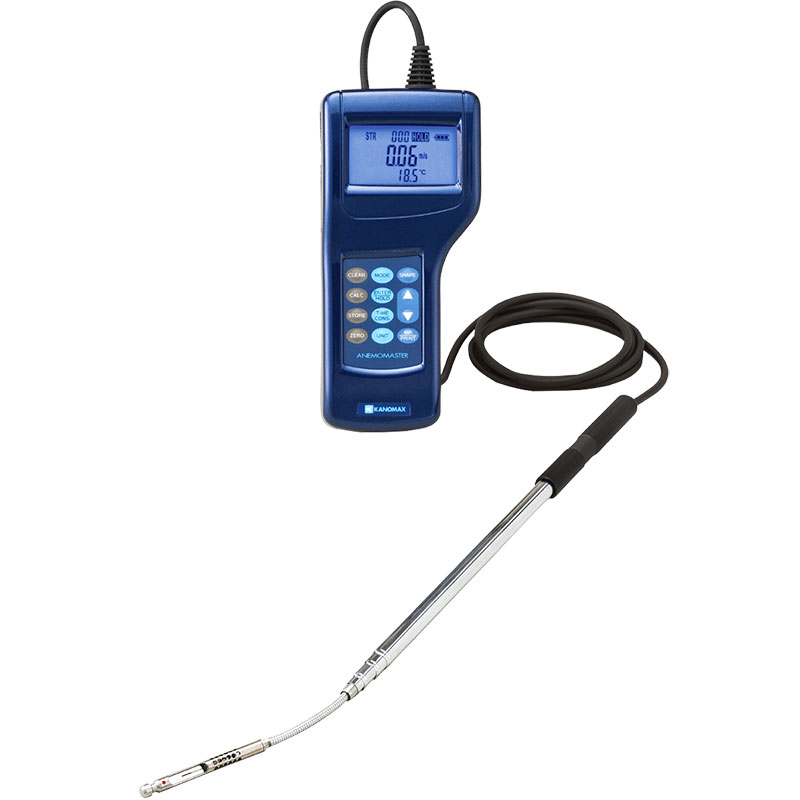

Anemomaster Professional Anemometer – Model 6036

Name: Anemomaster Professional Anemometer – Model 6036
Brand: AppliedPhysicsUSA
Availability: InStock

Quantity

Shipping calculated at checkout.

View full details

Description

The Anemomaster™ Professional is an excellent choice for most HVAC applications. Its accuracy rating is 3% m.v. which is equal to our competitor’s high end units. This professional anemometer comes standard with data logging for 1500 records, PC software so you can download and analyze data or prepare a report for a customer, and an articulating telescopic probe that makes it easy to measure at the proper 90-degree angle even for those tricky ceiling ducts. The unit can also be programmed with several duct sizes and shapes (square, rectangular or round) and then give you volumetric flow rates for those ducts. The unit can be ordered with an optional sensor to measure pressure and analog output option. The Anemomaster Anemometer Standard model is an affordable alternative for the contractor seeking an economical, but still highly accurate instrument. The articulating probe has been improved with enhanced durability. The modern design flexes easily and will last for many years. The telescoping feature of the probe makes it easy to take traverse measurements at ceiling ducts and other hard to reach places.

Some of the primary applications of the Anemomaster include HVAC Testing, Facility Maintenance, Critical Environment Certificate, IAQ Investigations, and others. The unit is consistently growing in popularity among HVAC professionals who need a reliable yet affordable instrument with the versatility to complete various tasks without any extra equipment. The unique articulating telescopic probe allows its users to reach ducts that they otherwise would not be able to without a great deal of added effort. The probe itself is highly sensitive and despite the price of the unit, it measures with an accuracy that is equivalent to far more expensive instruments that don’t necessarily have the extra features such as the articulation or high capacity for data logging. The Anemomaster is the best choice in HVAC.

Features & Benefits

Simultaneously measures and displays air velocity and air temperature.
Telescopic articulating probe makes it easy to take measurements at ceiling ducts and other hard to reach places.
Data-logging function with storage capacity of up to 1500 records, which allows users to work longer before pausing to upload data to a PC.
Equipped with an automatic atmospheric pressure compensation function.
USB connection, easy to upload to your PC or laptop.
Highly Visible black-lit display.
Make sure you order it with the OPTIONAL OSHA APPROVED Hands-Free Case.
NIST TRACEABLE Calibration Certificate.

*Annual NIST TRACEABLE CALIBRATIONS are performed at our facility in ANDOVER, NJ.

Specifications

Main Specifications
Measurement Specifications
Air Velocity
Range	2 to 6000 FPM (0.01 to 30.0m/s)
Resolution	1 FPM (0.01 m/s)
Accuracy	+/- 3.0% of READING or 0.015 m/s
Temperature
Range	-4 to 158°F (-20 to 70°C)
Resolution	1°F (0.1°C)
Accuracy	+/- 1°F (+/- 0.5 °C)
Range	-5 to 5 kPa
Differential Pressure
Range	-5 to 5 kPa
Resolution	0.01 m/s 0.1 m/s
Resolution	0.01 m/s 0.1 m/s	Accuracy	±3% of READING or ±0.01
General Specifications
Analog Output	DC 0 to 3V
Interface	USB / Printer
Datalogging	Stores up to 1500 measurement data
Power Supply	6 × AA Batteries or AC Adaptor (AC 100 to 240V , 50/60Hz)
Weight	1.1 lbs (500g)
Operating Environment	Main body: 41 to 104°F (5 to 40°C) with no condensation Probe: -4 to 158°F (-20 to 70°C) with no condensation
Operating Environment		Storage Environment	14 to 122°F (-10 to 50°C) with no condensation
Standards	CE-mark
Warranty	2 year
What's Included	Meter, Operation manual, Carrying case, USB cable, AA batteries, Data processing Software, NIST certificate
