Polarimeter is an instrument for measuring the optical rotation of some substance. Through the measurement of optical rotation, it can analyze and determine the specific rotation, international sugar degree, concentration and purity of the substance, which is widely used in medicine, petroleum, food, chemical industry, flavor, fragrance, sugar and other industries as well as related universities and research institutes.
$0.00

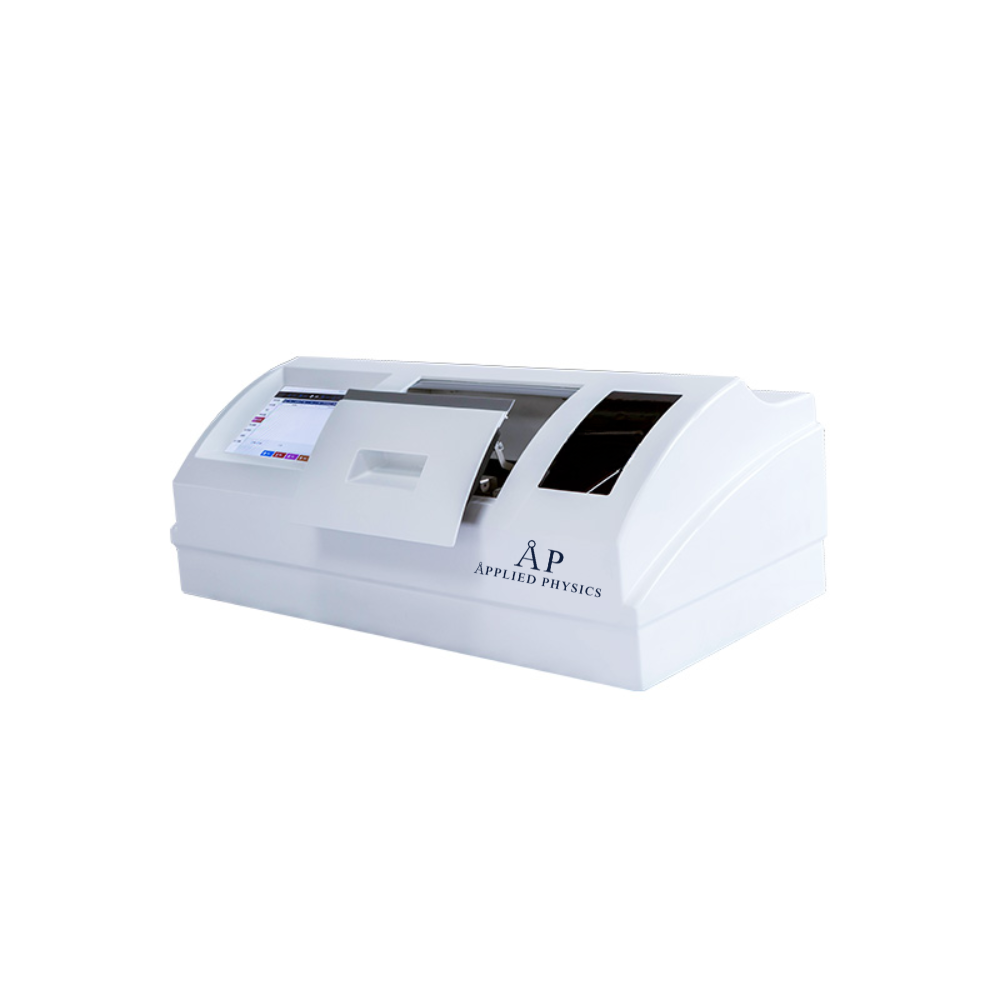

Automatic Digital Polarimeter BK-P610
Features:
1. Built-in peltier temperature control to improve accuracy and stability.
2. It can determine optical rotation, specific rotation, concentration, sugar degree.
3. LED cold light source instead of traditional sodium lamp and halogen tungsten lamp.
4. Multi-level rights management, rights can be freely configured.
5. 8-inch touch color screen, humanized operation interface.
6. It meets 21 CFR requirements(electronic signature, data traceability, audit trail, data tamper prevention and other functions).
7. Fully comply with GLP, GMP certification standards.
Technical Parameters:
Model
BK-P610
Light Source
LED cold light source+high precision interference filter
Wavelength
589.3nm
Measurement Method
Single, multiple, continuous measurement methods
Measurement Range
Optical rotation±90°, sugar degree±259°Z, specific rotation±259°Z
Optical Rotation
Least Count
0.001°
Accuracy
±0.004°
Repeatability
0.002°
Temperature
Temp. Range
10℃~55℃(Peltier)
Temp. Resolution
0.1℃
Temp. Accuracy
±0.1℃
Display
8 inch TFT touch color screen
Standard Test Tube
200mm, 100mm(Regular), 100mm(Temp. control)
Optional
Test tube, printer
Transmittance
0.01%
Data Storage
32G
File Export
PDF and Excel
Interface
USB, RS232, VGA, Ethernet
Standard Accessory
Electronic signature, WIFI printing, automatic calibration, audit trial
Optional Accessory
Cloud services, MD5 code verification, custom formula, printer
Power Supply
AC110/220V, 50/60Hz
Power
250W
External Size(W*D*H)
715*355*280mm
Package Size(W*D*H)
820*475*465mm
Net Weight
21.4kg
Gross Weight
30kg
| Model | BK-P610 |
|---|
