It is a precision instrument for measuring the optical rotation of substances. It analyzes parameters such as the concentration, purity and sugar content of substances by measuring the rotation Angle of polarized light, and is widely used in fields such as food and chemical engineering.
$0.00

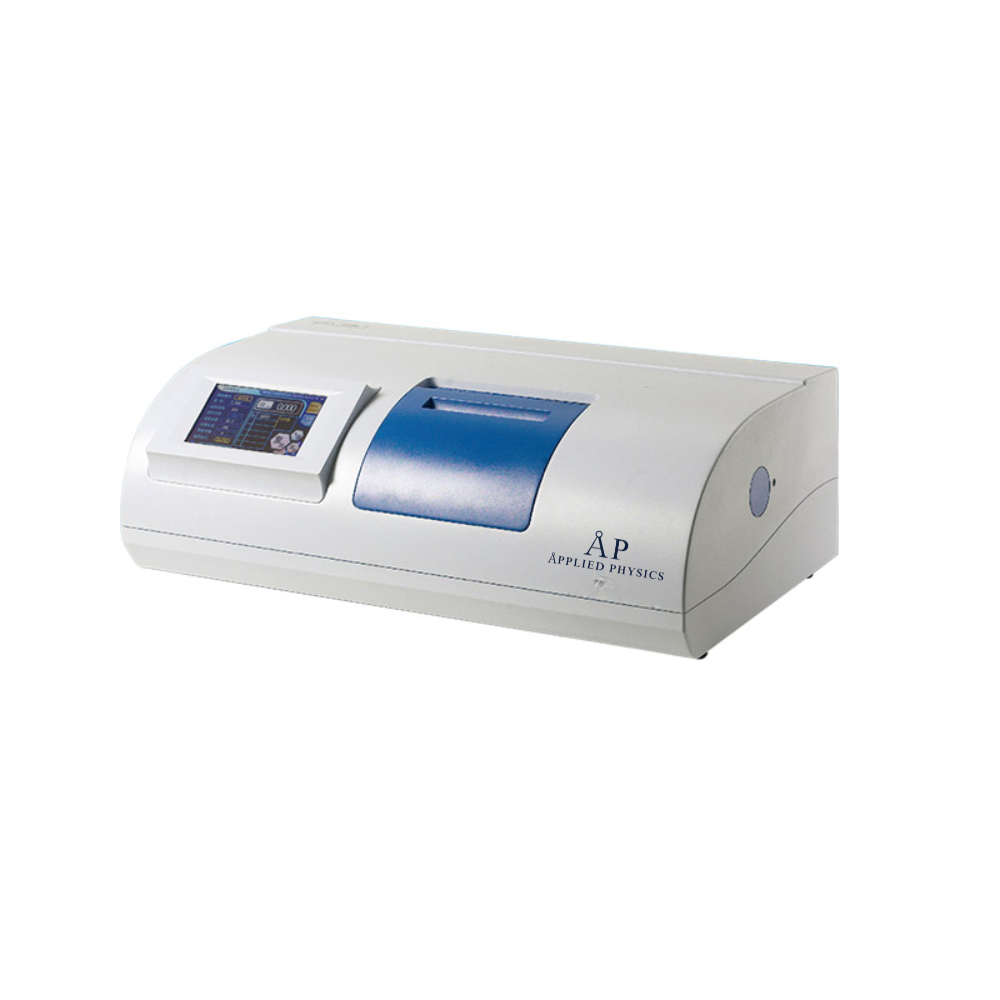

Automatic Polarimeter BK-P1 BK-P2
Features:
1. 7 inch color touch LCD screen.
2. Photoelectric test and microcomputer control.
3. Preheating is not needed.(Only for BK-P1 and BK-P2 Model)
4. Dark-colored sample can be measure.(Only for BK-P1 and BK-P2 Model)
5. Automatic repetition-measurement for 6 times, and calculation of average value and means square root.
6. Sample chamber adopts constant temperature designing in order to reduce the temperature heating influence.
Technical Parameters:
Model BK-P1 BK-P2
Light Source LED+interference filter
Measuring Range ±45°(optical rotation) /±120°Z(sugar)
Wavelength 589nm
Measuring Accuracy ±0.01°(-15°≤optical rotation≤＋15°)
±0.02°(optical rotation＜-15°or optical rotation＞＋15°)
Repeatability 0.002°(optical rotation)
Sample Transmittance 1%
Temperature Control Range / 15~30℃
Temperature Accuracy / ±0.5℃
Test Mode Optical rotation, specific rotation, concentration, sugar degree
Test Tube 200mm, 100mm
200mm, 100mm, 100mm(Constant Temperature tube)
Interface USB&RS232
Power Supply AC110/220V, 50/60Hz
External Size(W*D*H) 690*370*280mm
Package Size(W*D*H) 820*500*510mm
Gross Weight 43kg
| Model | BK-P1, BK-P2 |
|---|
