Colorimeter BCM-110 BCM-200

Description

Colorimeter BCM-110 BCM-200

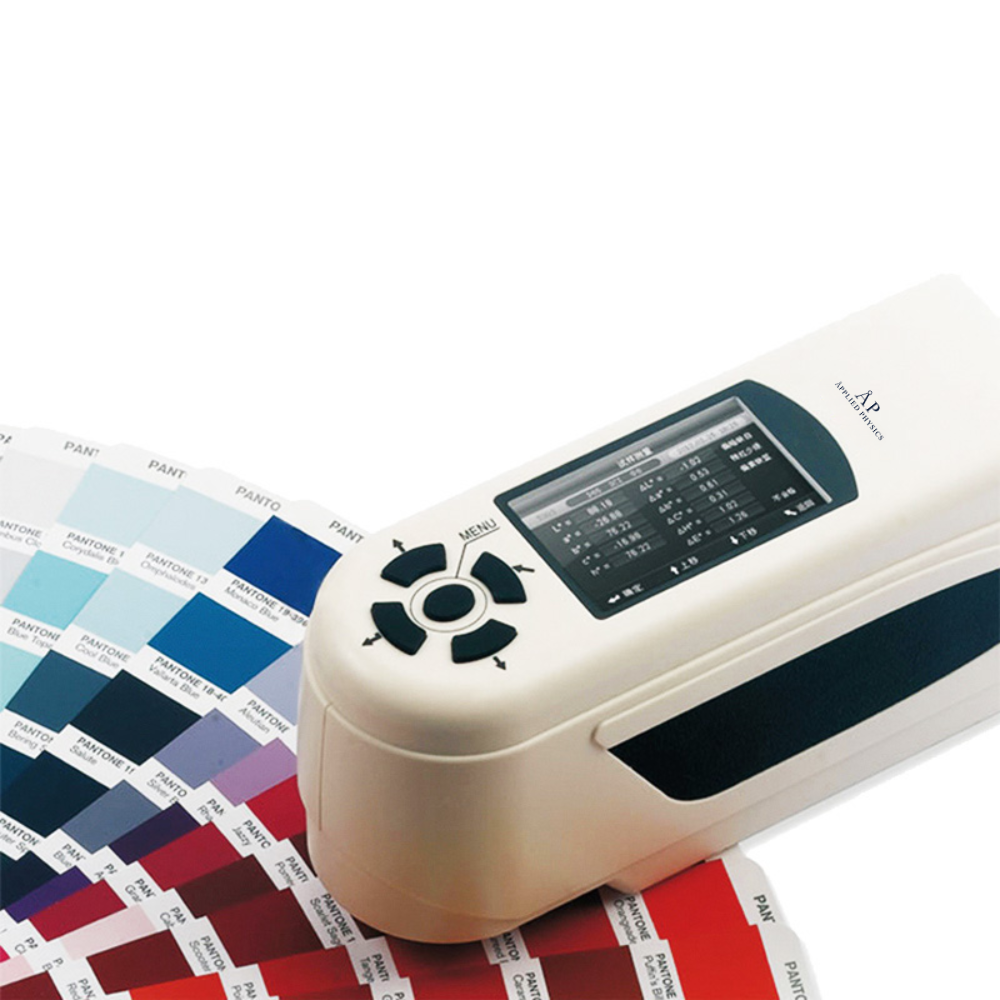

Features for BCM-110:

1. Built-in white plate parameters. No need to calibrate each time.

2. Double locating: illuminating locating and precise cross locating.

3. Switchable double measurement end face: large area stable end face and small area measurement for concave-convex end face.

4. New integrating sphere optical path design: eliminating the stray light of main optical path and auxiliary optical path.

5. Equipped with rechargeable-capacity Li-ion battery.

6. Configured CQCS3 software to realize more functions by connecting PC computer.

7. Hand-head structure, small and convenient.

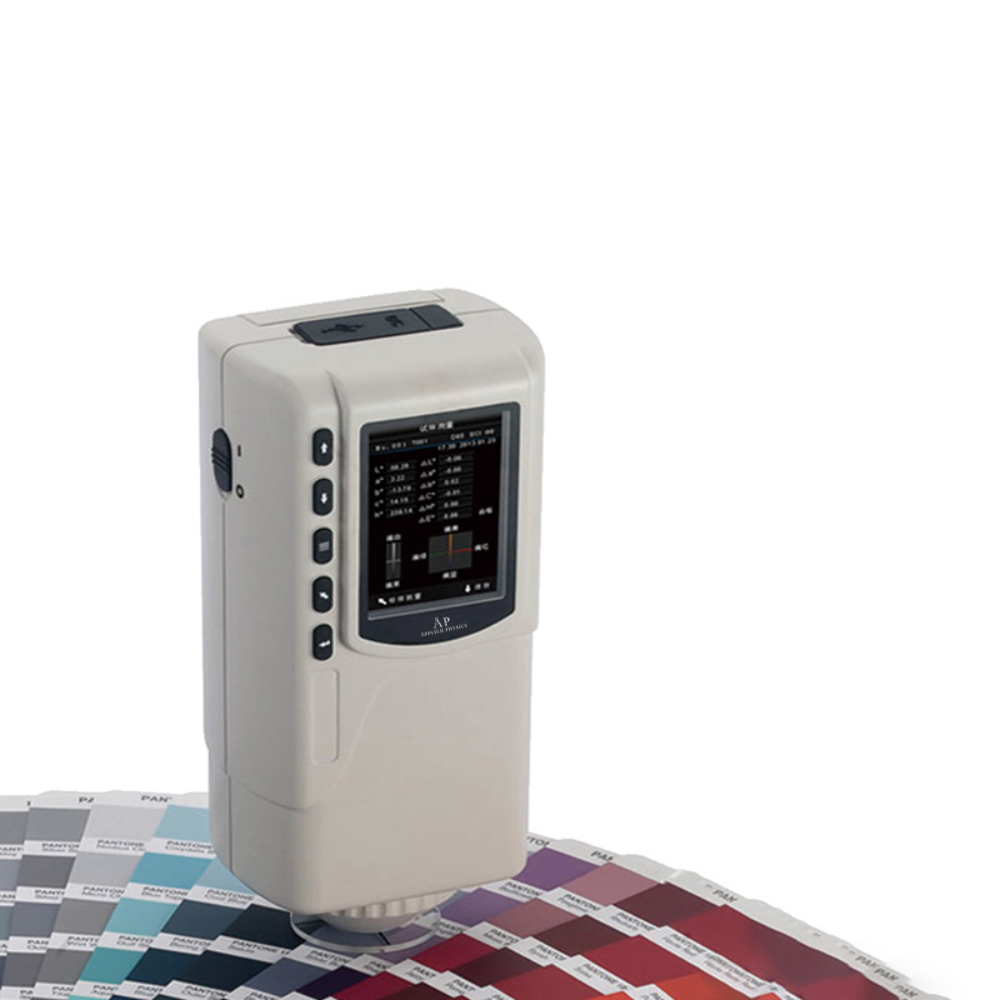

Features for BCM-200:

1. Leading humanity design and convenient operation, auto white and black calibration at startup, structure design in line with ergonomics.

2. Stable measurement performance.

3. Convenient and fast locating.

4. PC software -CQCS3 software realize more function expansion.

a. The corresponding software serial number and password protection.

b. Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

5. Advanced power management design.

a. Using high capacity Li-ion battery in colorimeter. It can be repeatedly charged.

b. Measuring more than 3000 times on one charge.

Technical Parameters:

Model

BCM-110

BCM-200

Illuminating/Viewing Geometry

8/d

Measuring Aperture

φ4mm

φ8mm

Detector

Silicon photoelectric diode

Color Space

CIEL*a*b*C*h* CIEL*a*b*CIEXYZ

Color Difference Formula

ΔE*ab ΔL*a*b ΔE*C*h

Light Source

D65

Light Source Device

LED blue light excitation

Display

TFT LCD

Errors Between Each Equipment

≤0.80ΔE*ab

≤0.50ΔE*ab

Storage

100pcs standards, 20000pcs samples

Repeatability

Standard deviation within AE*ab 0.08

Average of 30 measurements of standard white plate

Standard deviation within AE*ab 0.07

Average of 30 measurements of standard white plate

Lamp Life

5 years, more than 1.6 million time

Charging Time

8 hours-100% electricity

Measurement Times Before Recharging

3000 times in 8 hours

Ambient Temp./Humidity Range

-10~40°C, relative humidity 0~85% without condensation

Data Interface

USB

Optional Accessory

Miniature thermal printer,

powder test box

Universal test components, powder test box, miniature thermal printer

Power Supply

Rechargeable li-ion battery 3.7V@3200mAh

External Size(W*D*H)

205*67*80mm

205*70*100mm

Package Size(W*D*H)

370*320*160mm

Net Weight

0.45kg

0.5kg

Gross Weight

4kg
