The Combination Emergency Shower Eye Washer is a vital safety fixture designed to provide immediate decontamination for personnel exposed to hazardous chemicals or substances.
$0.00

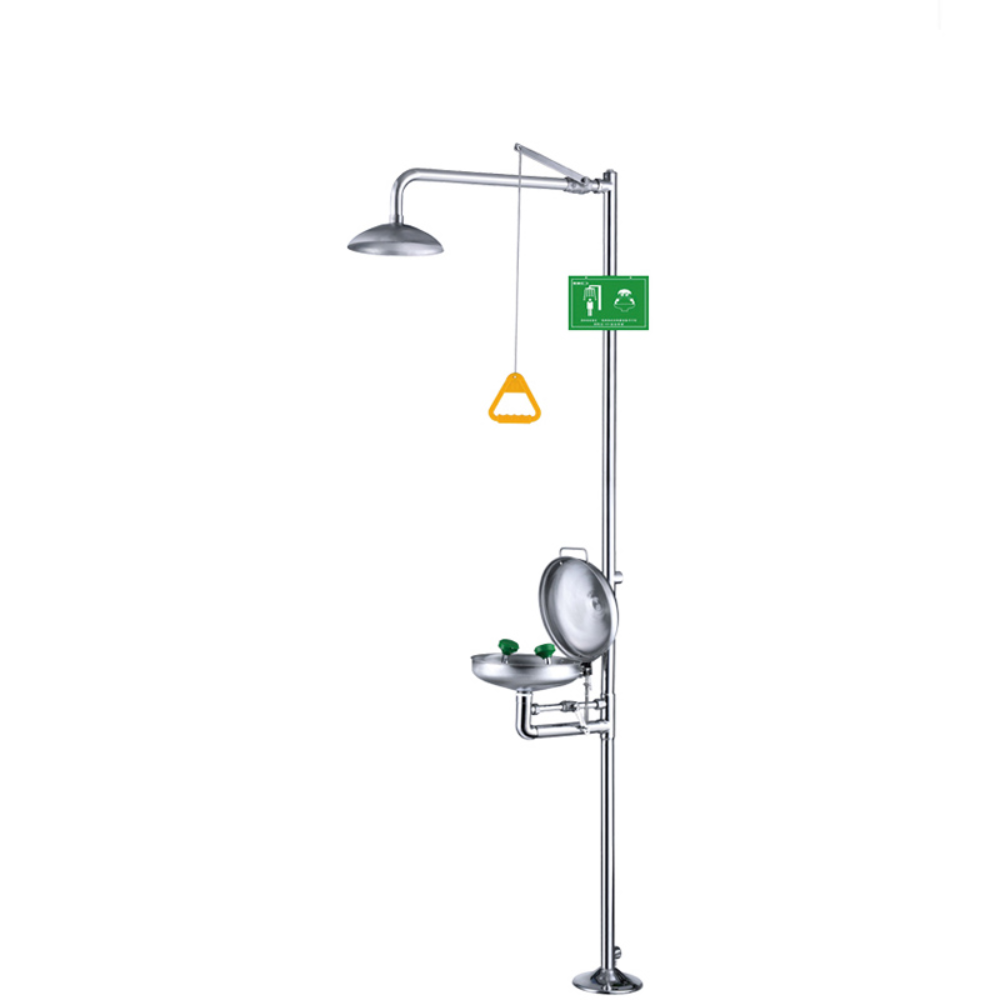

Combination Emergency Shower Eye Washer
Features:
1. Material: Stainless steel 304, fine polish/high brightness antioxidant coating.
2. Assembling feature: the “Union” allows easier pipe connection and disconnection.
3. Usage: drenching body and rinsing faces/eyes can be operated separately or simultaneously, shower&eye wash switch: two-piece ball valve .
4. Shower head: spinning-formed with curled rim, diameter 250mm, pipe diameter: 38mm.
5. Nominal pressure: 1.0Mpa, working pressure: 0.2~0.4Mpa, testing pressure: 1.5Mpa.
6. Flow rate of body shower: ≥76L/min, flow rate of eye/face wash: ≥11.4L/min, flow rate of eye wash: ≥1.5L/min.
7. Eyewash bowl features: 300mm in diameter.
8. Inlet height(From above the floor): 1186mm, outlet height(From above the floor): 86mm, distance between spray heads: 170mm, water pattern coverage: at the height of 1520mm above floor, the water pattern covers a circular area of at least 510mm in diameter.
Technical Parameters:
Model
SEW-C1
SEW-C2
Package Size(W*D*H)
1310*380*250mm
1310*350*440mm
Gross Weight
17.5kg
20kg
| Model | EW-C1, SEW-C2 |
|---|
