Description

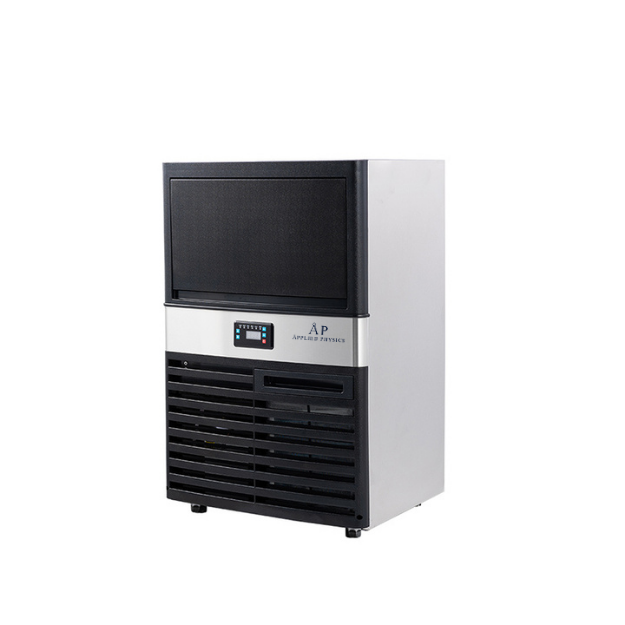

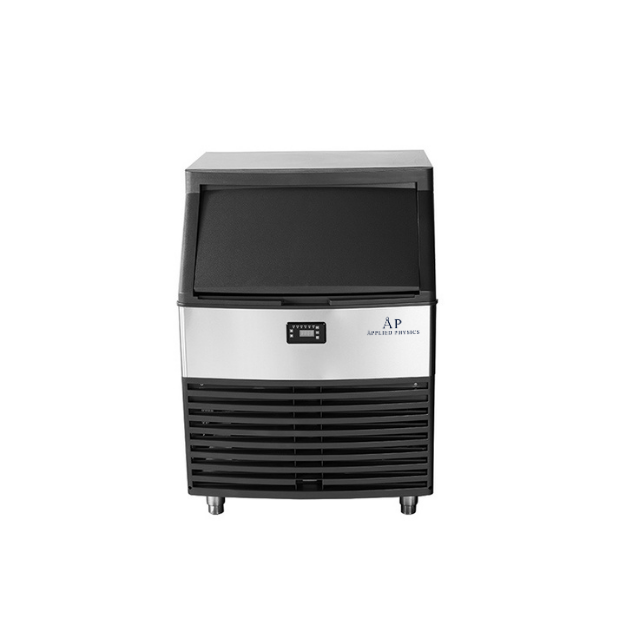

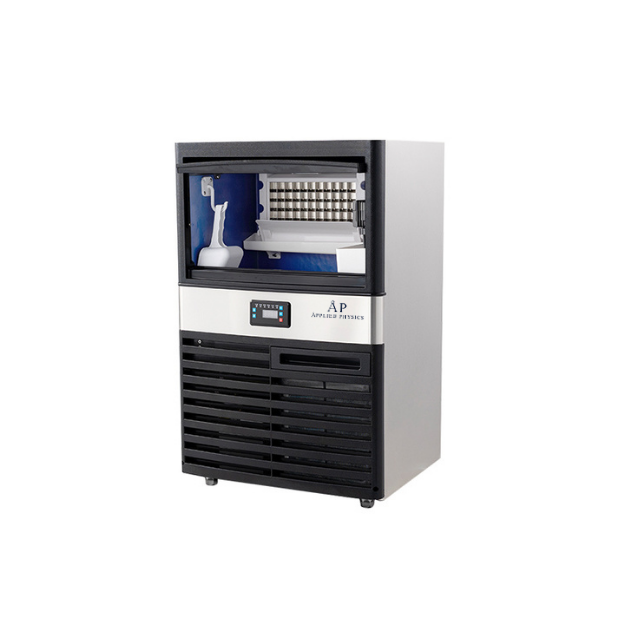

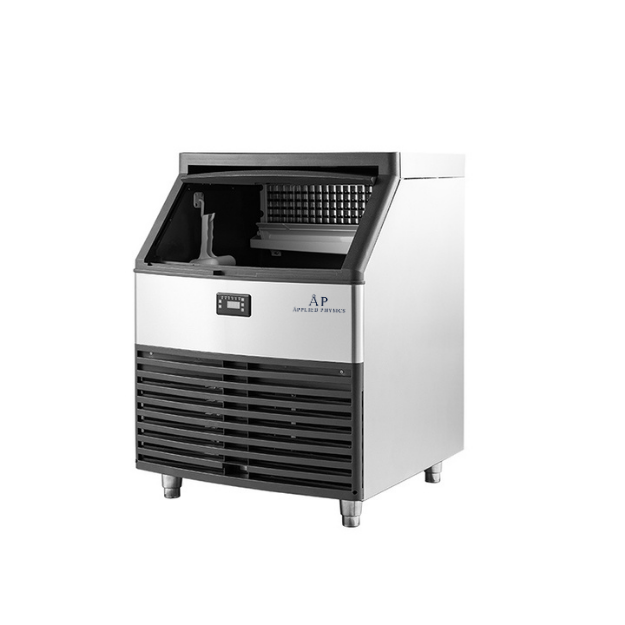

The Cube Ice Machine is a high-efficiency ice maker designed to produce large quantities of perfectly shaped cube ice for commercial and industrial needs. This machine is ideal for use in restaurants, bars, hotels, hospitals, and food processing facilities, providing a reliable source of clean, clear, and uniform ice cubes.
Features:
1. Cube ice, large contact area, adjustable ice thickness.
2. Stainless steel and ABS engineering plastic shell, beautiful shape, strong, practical.
3. Nickel-plated copper ice plate, flowing vertical ice making, high ice making efficiency, energy saving.
4. "Intelligent core" control system, automatic ice making, automatic ice falling, ice full detection.
5. One-button cleaning function, convenient daily maintenance.
6. LED screen, clear operation, accurate understanding of the machine's working conditions.
7. The tank, sink, and water distribution pipe all meet the food grade standards, safe and hygienic.
8. Built-in refrigerator.
9. The three basic parts(computer board, fan, condenser) are guaranteed for five years.
Technical Parameters:
Model |
CIM-65 |
CIM-80 |
CIM-120 |
CIM-180 |
CIM-65 |
CIM-65 |
||
Ice Making Capacity(kg/24h) |
30 |
40 |
60 |
80 |
100 |
120 |
||
Max. Ice Storage Capacity |
15kg |
45kg |
||||||
Ice Shape |
Cube ice: 22*22*22mm, 10g |
|||||||
Ice Grid |
4*9 |
4*10 |
5*12 |
5*16 |
5*18 |
6*18 |
||
Input Current |
280W |
300W |
360W |
580W |
600W |
650W |
||
Way of Condensation |
Air-cooling |
|||||||
Ambient Temperature |
1~40℃ |
|||||||
Water Temperature |
5~35℃ |
|||||||
Compressor |
Wanbao |
|||||||
Refrigerant |
R290, 60g |
R290, 65g |
R290, 80g |
R290, 96g |
R290, 100g |
R290, 106g |
||
Standard Accessory |
Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 |
|||||||
Optional Accessory |
UV lamp |
|||||||
Power Supply |
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
|||||||
External Size(W*D*H) |
500*450*800mm |
660*680*930mm |
||||||
Package Size(W*D*H) |
580*510*850mm |
740*750*920mm |
||||||
Net Weight |
34kg |
35kg |
54kg |
55kg |
56kg |
|||
Gross Weight |
38kg |
39kg |
59kg |
60kg |
61kg |
