It is a precision instrument for measuring the optical rotation of substances. It analyzes parameters such as the concentration, purity and sugar content of substances by measuring the rotation Angle of polarized light, and is widely used in fields such as food and chemical engineering.
$0.00

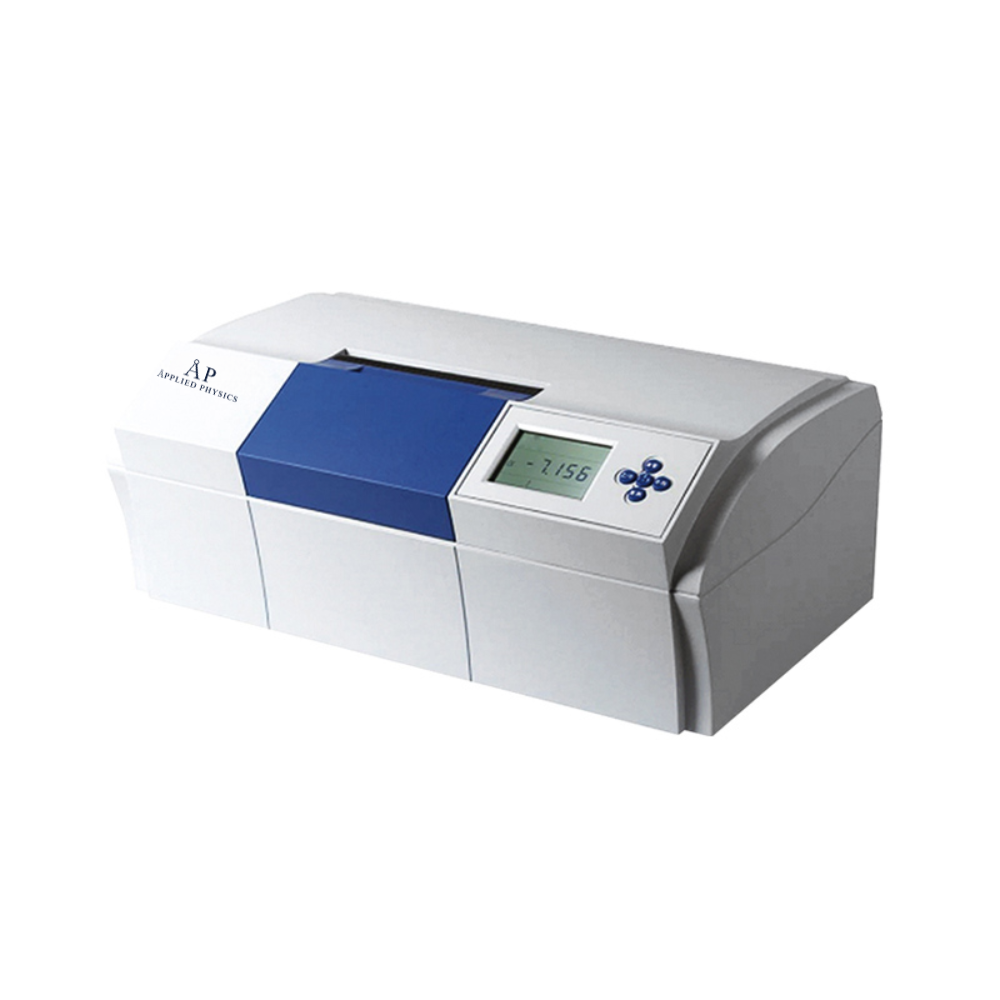

Digital Automatic Polarimeter BK-P2S BK-P2B
Features:
1. Photoelectric test and microcomputer control.
2. Storage of three times results and calculation of average values.
3. Dark-colored sample can be measured.
4. Photoelectric test and automatic servomechanism control.
Technical Parameters:
Model
BK-P2S
BK-P2B
Light Source
LED+interference filter
Measuring Range
±45°(optical rotation)/±120°Z(sugar)
±45°(optical rotation)
Wavelength
589nm
Readable Accuracy
0.001°(optical rotation) 0.01°Z(sugar)
0.002°(optical rotation)
Measuring Accuracy
±(0.01+measurement value*0.05%)°(optical rotation)
±(0.03+measurement value*0.05%)°Z(sugar)
±(0.01+measurement value*0.05%)°(optical rotation)
Repeatability
≤0.002°(optical rotation)
≤0.01°(optical rotation)
Test Mode
Optical rotation, sugar degree
Optical rotation
Test Tube
200mm, 100mm
Sample Transmittance
1%
10%
Interface
RS232
Power Supply
AC110/220V, 50/60Hz
External Size(W*D*H)
570*350*280mm
Package Size(W*D*H)
730*480*470mm
Gross Weight
36kg
| Model | BK-P2B, BK-P2S |
|---|
