Description

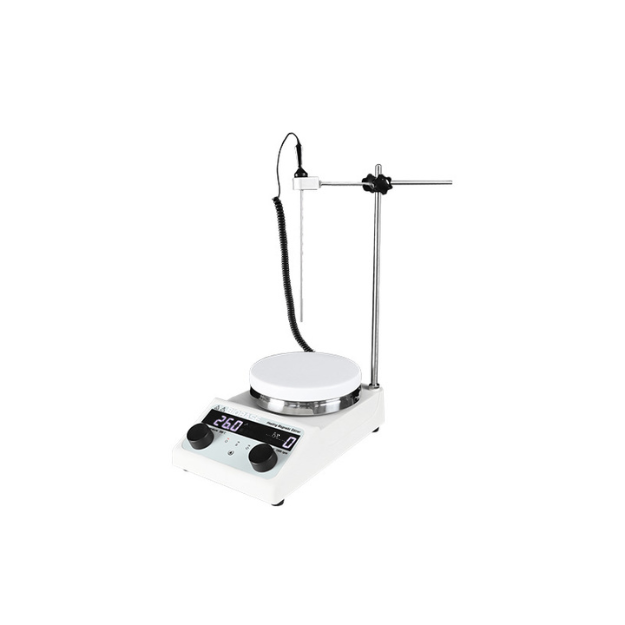

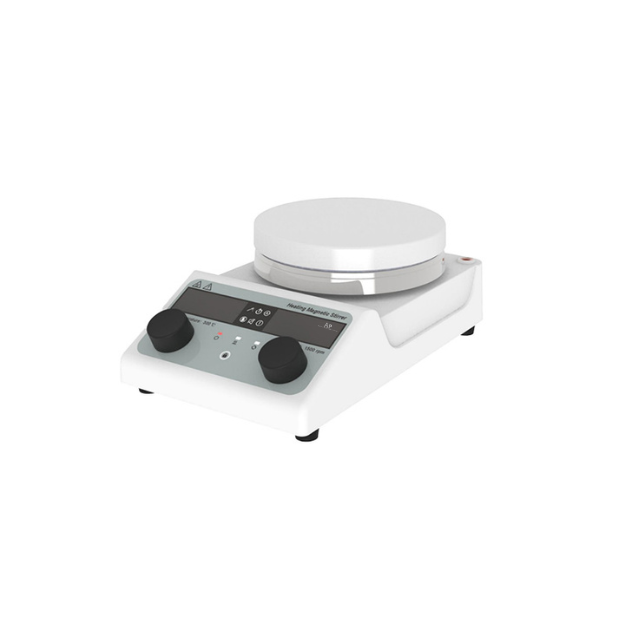

The Hotplate Magnetic Stirrer is a high-performance laboratory device designed for precise heating and stirring applications. Combining advanced features with durable construction, this stirrer ensures reliable and efficient operation, making it an indispensable tool for any laboratory.
Features：
1. Use ceramic heating plate, corrosion-resistant, easy to clean, long service life.
2. Use brushless DC motor, low noise and long life.
3. The stirrer adopts high temperature resistance and strong magnetism.
4. The body is made of high-quality materials and the polymer high-temperature-resistant shell is durable.
5. With timing, forward and reverse, locking and other functions.
Technical Parameters：
|
Model |
BJPX-SC11-Pro |
|
Disk Material |
Ceramic coated aluminum disc |
|
Working Surface Size |
φ140mm |
|
Motor Type |
Brushless DC motor |
|
Maximum Volume |
5L |
|
Rotation Range |
100~1500rpm |
|
Display |
LED |
|
Temperature Control Range |
RT~300℃ |
|
Temperature Control Method |
PID control |
|
Temperature Display Resolution |
0.1℃ |
|
Temperature Control Accuracy |
±1℃ |
|
Temperature Sensor |
PT100(Standard) |
|
Waste Heat High Temperature Alarm |
>50℃ |
|
Heating Power |
300W |
|
Motor Power |
9W |
|
Power Supply |
AC100~230V, 50/60Hz |
|
Timing Range |
0~99h59min |
|
Machine Size(mm) |
250*150*95 |
|
Net Weight(kg) |
1.3 |
|
Packing Size(mm) |
300*200*150 |
|
Gross Weight(kg) |
2.2 |
