Description
The Hotplate Magnetic Stirrer is a versatile and reliable tool designed for precise heating and stirring in laboratory settings. This advanced device combines robust construction with innovative features to ensure optimal performance and longevity, making it an essential addition to any laboratory.

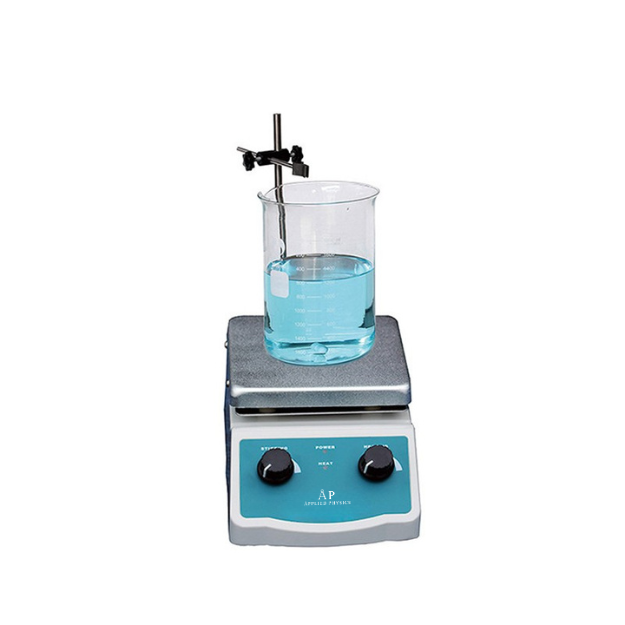

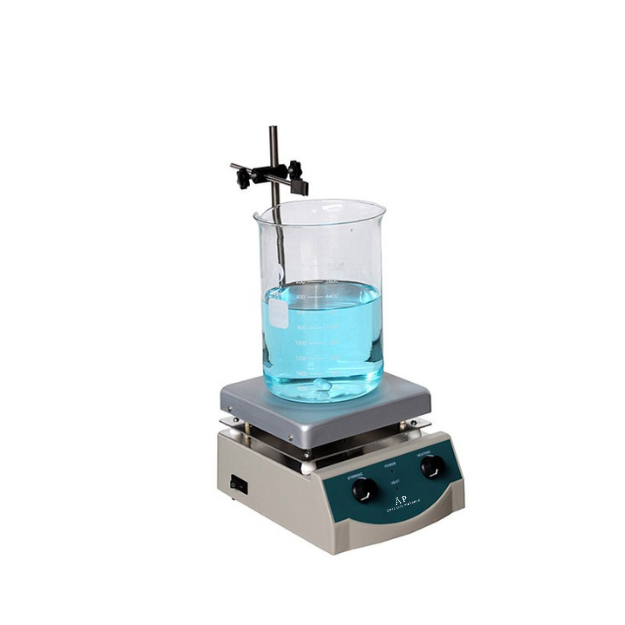

Features of BS-2H/3H:
1. Cast Aluminum with surface spraying plate.
2. Max. Temp.: 380°C, max. speed: 2000rpm.
3. Heating and stirring can proceed simultaneously.
4. Heating power and stirring speed is steplessly adjusted.

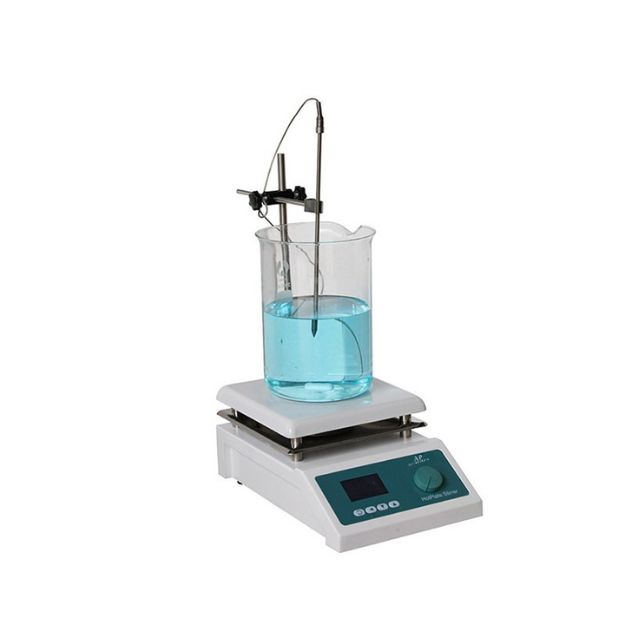

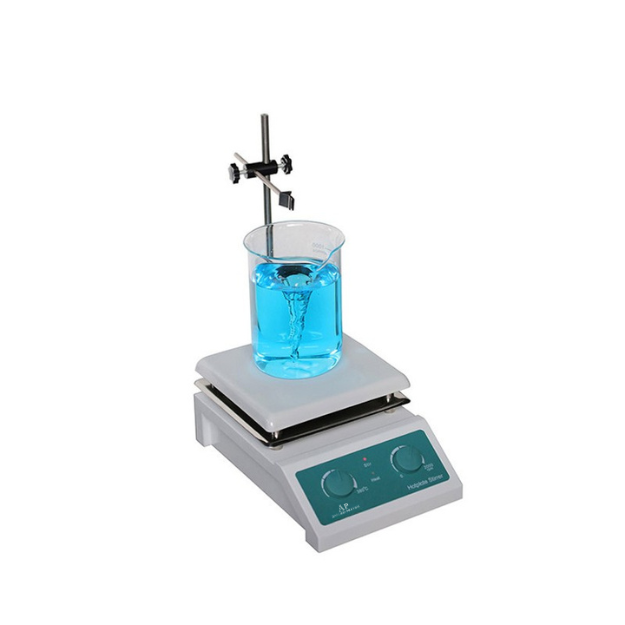

Features of BS-4H/4HC:
1. Ceramic plate.
2. PT100 sensor is standard for BS-4HC.
3. With the adjustable rack and stirrer bar.
4. Max. Temp.: 380°C, max. speed: 2000rpm.
5. Heating and stirring can proceed simultaneously.
6. Heating power and stirring speed is steplessly adjusted.
7. Enclosed hot plate with flame protection, fast warm-up and durability.
Technical Parameters:
|
Model |
BS-2H |
BS-3H |
BS-4H |
BS-4HC |
|
Work Plate Size |
120*120mm |
170*170mm |
190*190mm |
|
|
Plate Load(kg) |
3 |
10 |
||
|
Work Plate Material |
Cast Aluminum with surface spraying |
Ceramic |
||
|
Max. Stirring Capacity |
2L |
5L |
||
|
Speed Range |
100~2000rpm |
200~2000rpm |
||
|
Heating Temp |
380°C |
350 °C |
||
|
Power Consumption |
180W |
500W |
600W |
|
|
Power Supply |
AC110/220V±10%, 50/60Hz |
|||
|
Standard Accessory |
Adjustable rack, stirrer bar; PT100 sensor(only for BS-4HC) |
|||
|
External Size(W*D*H)mm |
200*120*90 |
265*185*190 |
320*190*125 |
|
|
Package Size(W*D*H)mm |
250*180*120 |
280*210*220 |
390*240*230 |
|
|
Net Weight(kg) |
1.9 |
2.2 |
5 |
|
|
Gross Weight(kg) |
3 |
3.4 |
6 |
|
